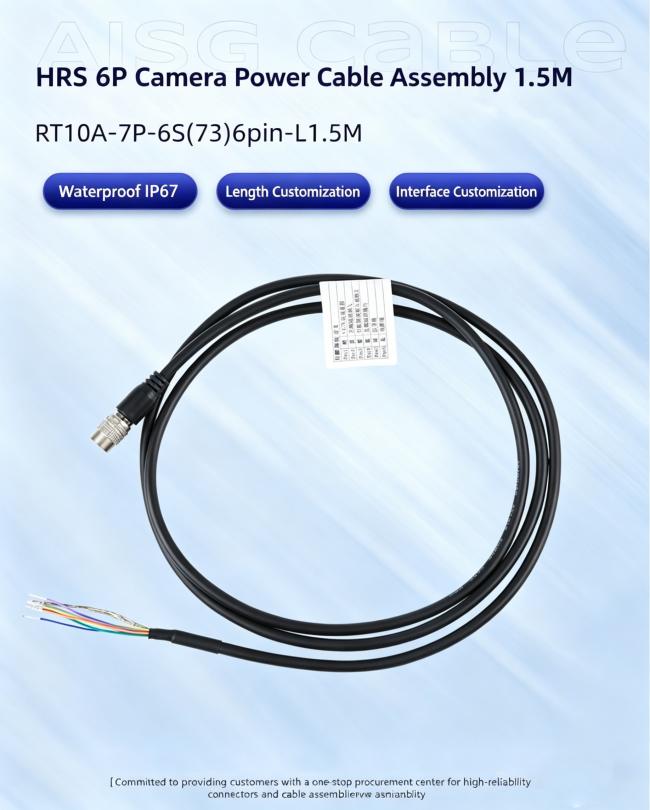

HR10A_7P_6S-L1.5M High-Flex Hirose 6-Pin 6-Core Camera Power &Trigger I/O Cable
HR10A_7P_6S-L1.5M High-Flex Hirose 6-Pin 6-Core Camera Power &Trigger I/O Cable
Product Description
The high-performance Industrial Camera Cable Assembly featuring a reliable Hirose (HR10A series) 6-pin circular connector. Specifically engineered for machine vision systems, it integrates power supply and I/O signal triggering into a single cable, ensuring stable power delivery and high-speed signal feedback in demanding industrial environments.
Key Features
- Industrial-Grade Durability: Designed with a wide operating temperature range (-40°C to +80°C) and built to be waterproof and UV-resistant for harsh factory conditions.
- Precision Connectivity: Utilizes premium C5911 contact material and black PBT insulation to ensure low signal interference and contact stability even after repeated mating cycles.
- Customizable Flexibility: While the standard length is 1.5M, the cable length is fully customizable to fit specific automation line layouts.
- Broad Compatibility: Fully compliant with the HR10A standard, making it compatible with major industrial camera brands (e.g., Hikvision, Basler, Dahua, Cognex).
Technical Parameters
| Parameter | Specification |
| Product Name | Hirose 6P Camera Power Cable Assembly |
| Model Number | RT10A-7P-6S(73)6pin-L1.5M (Customizable) |
| Brand | Ritian |
| Connector Type | Hirose Circular Connector |
| Pin Configuration | 6 Pin / 6 Cores |
| Contact Material | C5911 |
| Insulation Material | PBT (Black) |
| Operating Temp | -40°C to +80°C |
| Color | Black |
| Primary Function | Power Supply & External Triggering |
Application Scenarios
- Automated Inspection Lines: Supplies power and trigger signals to cameras on conveyor belts for real-time defect detection and sorting.
- Robotic Arm Guidance: Integrated into robotic cells where high-flex cables are required for precision picking and placement via vision guidance.
- Laboratory Imaging: Used in high-speed scientific imaging or intelligent surveillance setups requiring consistent, interference-free data and power transmission.
FAQ:
Q: What is the main purpose of this cable?
A: It connects industrial cameras to trigger sensors or controllers for synchronized image acquisition.
Q: Is the cable length customizable?
A: Yes, custom lengths and pin assignments are available, contact us for details.
Q: Is it compatible with Basler or Sony industrial cameras?
A: Yes, commonly used with HR series style or similar camera interfaces for power/trigger signals.
Q: What is the difference between AISG and SMH200 connectors?
A: AISG is a robust circular connector for reliable field connections; SMH200 is a compact 2.0mm pitch board connector.
Q: Does it support waterproof applications?
A: Many variants are designed with IP-rated protection for harsh industrial environments—confirm with the specific listing.
Q: What is the minimum order quantity (MOQ)?
A: Typically 100pcs or customized from 1k pcs for trial orders.
