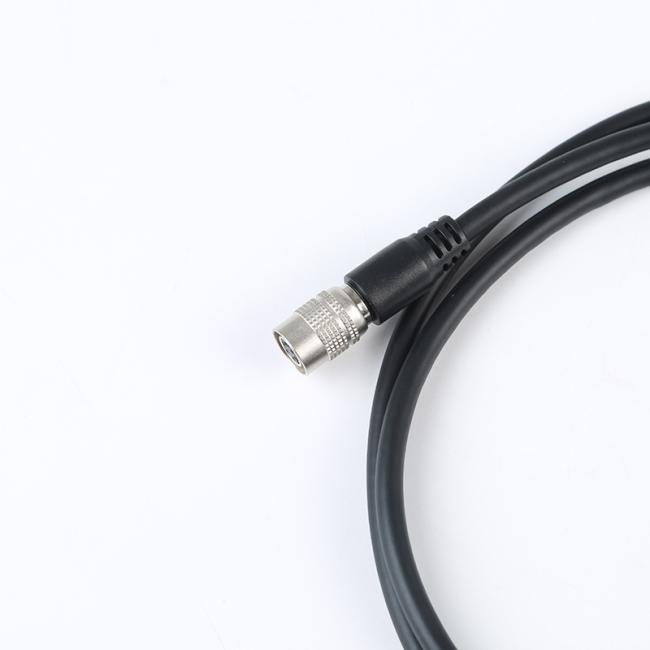

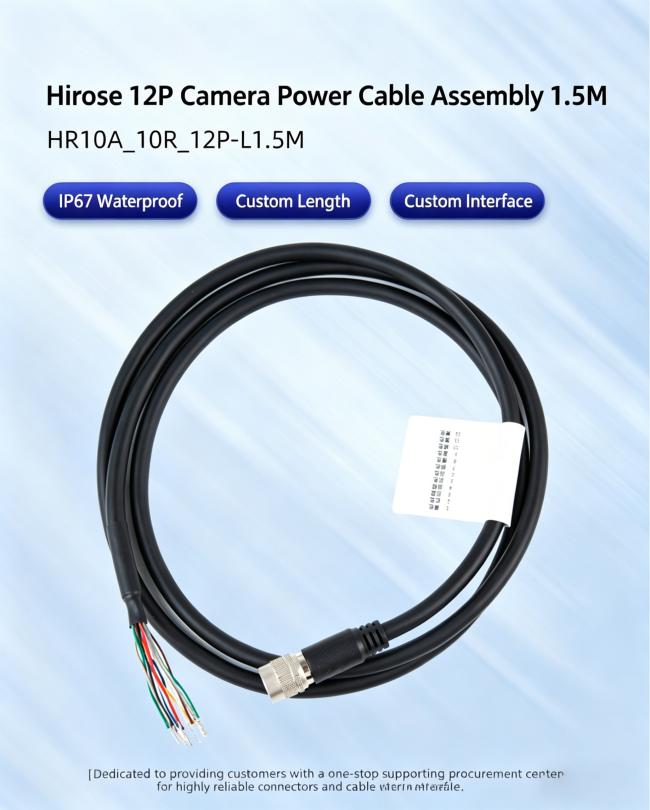

HR10A_10R_12P-L1.5M 12-Pin Circular Connector Industrial Camera Cable Assembly
HR10A_10R_12P-L1.5M 12-Pin Circular Connector Industrial Camera Cable Assembly
Product Description
Our HR10A_10R_12P 12-pin cable assembly is a professional industrial-grade wiring harness independently developed and produced by Ritian Communication. Based on Hirose HR10A circular connector standard, it is specially customized for power supply, trigger signal transmission of industrial cameras and machine vision systems.
Bullet Points
- Original HR10A Series 12-Pin Connector: This cable assembly adopts Hirose standard HR10A_10R_12P circular connector, 12-core fully wired design, which perfectly realizes stable power supply, IO trigger signal and data transmission for industrial cameras, fully matching the wiring definition of mainstream machine vision camera brands.
- IP67 High Industrial Protection Grade: Fully sealed waterproof and dustproof structure, resistant to oil, corrosion and wear. It can work stably in harsh industrial workshops, outdoor humid and dusty environments, effectively avoid signal interference and line failure caused by external environment.
- Ultra-Wide Operating Temperature Range: The whole cable supports extreme temperature resistance from -40℃ to +80℃. The outer sheath is made of high-flex industrial cable material, with excellent low temperature resistance, high temperature resistance and weather resistance, which meets the long-time continuous operation requirements of industrial sites.
- High-Grade Durable Material & Stable Conductivity: The contact pin is made of high-conductivity C5911 copper alloy, with low impedance, oxidation resistance and long service life. The connector insulator is made of high-strength black PBT material, which is flame retardant, high temperature resistant and has excellent mechanical insertion and extraction performance.
- Customizable & Universal Application: Standard 1.5m length in stock, fully supports custom cable length, wiring definition and interface modification. Widely used in industrial vision cameras, automated production lines, detection equipment, industrial sensors, IoT communication equipment and other industrial connection scenarios.
Technical Parameters
| Item | Specification |
| Product Name | HR10A 12-Pin Industrial Camera Power & Trigger Cable Assembly |
| Brand | Ritian |
| Model No. | HR10A_10R_12P-L1.5M |
| Connector Series | Hirose HR10A Circular Connector |
| Pin Count | 12 Pins / 12 Cores |
| Cable Color | Black |
| Standard Length | 1.5 Meter or customized |
| Protection Grade | IP67 Waterproof & Dustproof |
| Operating Temperature | -40℃ ~ +80℃ |
| Contact Material | C5911 Copper Alloy |
| Insulator Material | Black PBT Resin |
| Main Applications | Industrial Camera Power Supply, Trigger I/O Signal Transmission, Machine Vision System, Industrial Automation Equipment |

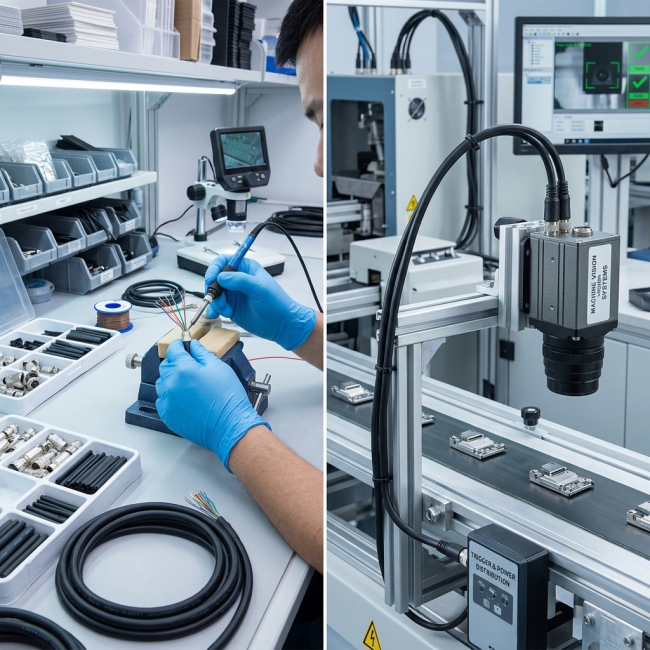

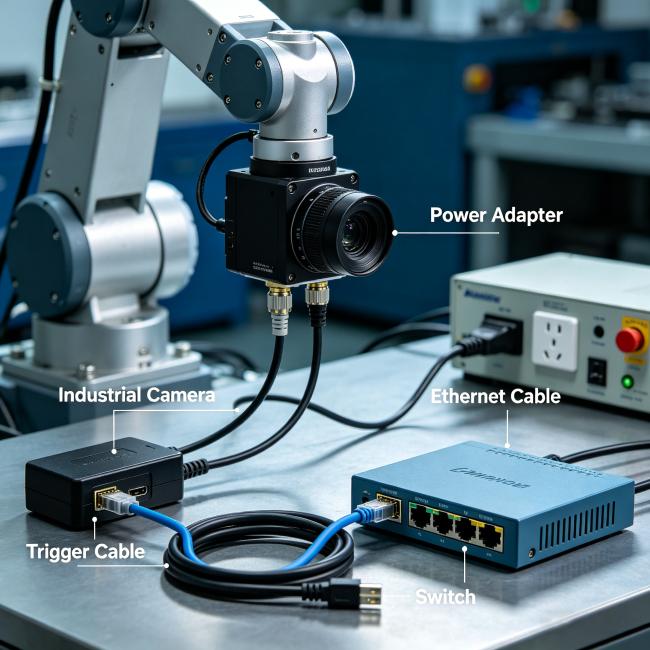

Application Scenarios
Industrial Camera Power Supply, Trigger I/O Signal Transmission, Machine Vision System, Industrial Automation Equipment
FAQ:
Q: What is the main purpose of this cable?
A: It connects industrial cameras to trigger sensors or controllers for synchronized image acquisition.
Q: Is the cable length customizable?
A: Yes, custom lengths and pin assignments are available, contact us for details.
Q: Is it compatible with Basler or Sony industrial cameras?
A: Yes, commonly used with HR series style or similar camera interfaces for power/trigger signals.
Q: Does it support waterproof applications?
A: Many variants are designed with IP-rated protection for harsh industrial environments—confirm with the specific listing.
Q: What is the minimum order quantity (MOQ)?
A: Typically 100pcs or customized from 1k pcs for trial orders.
