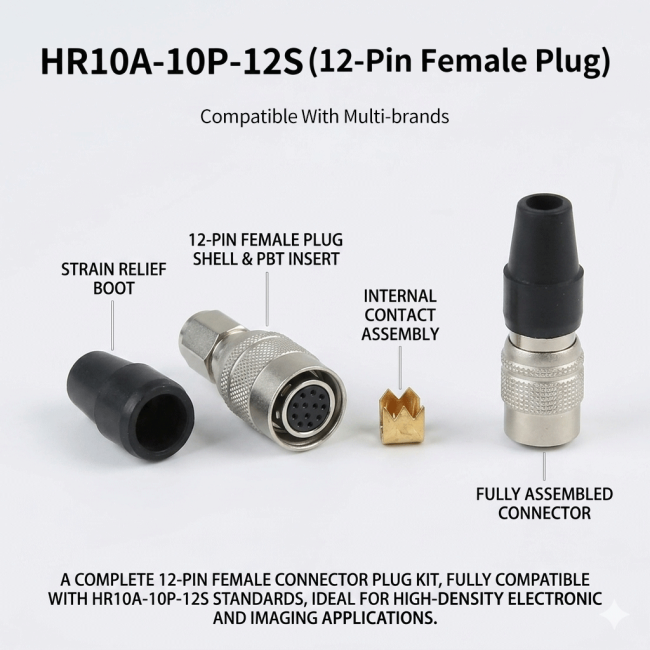

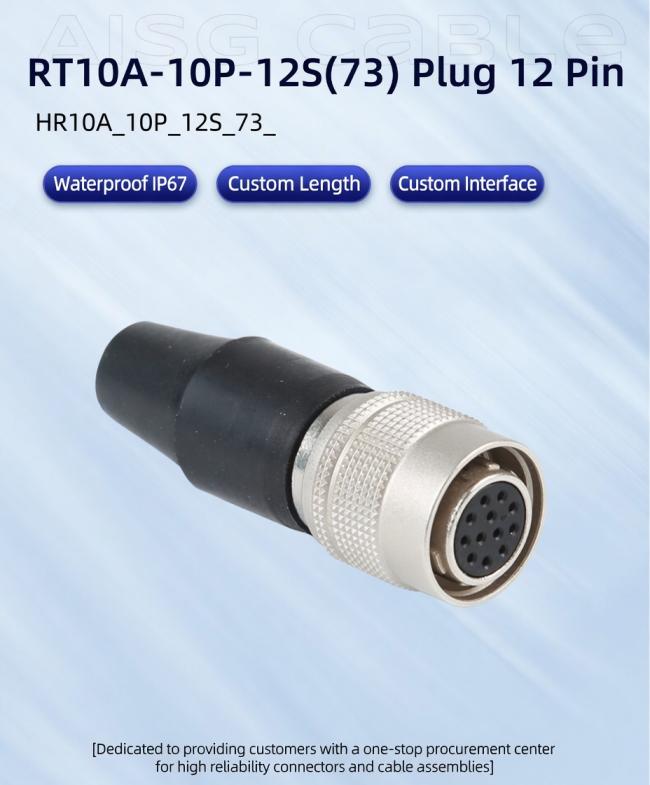

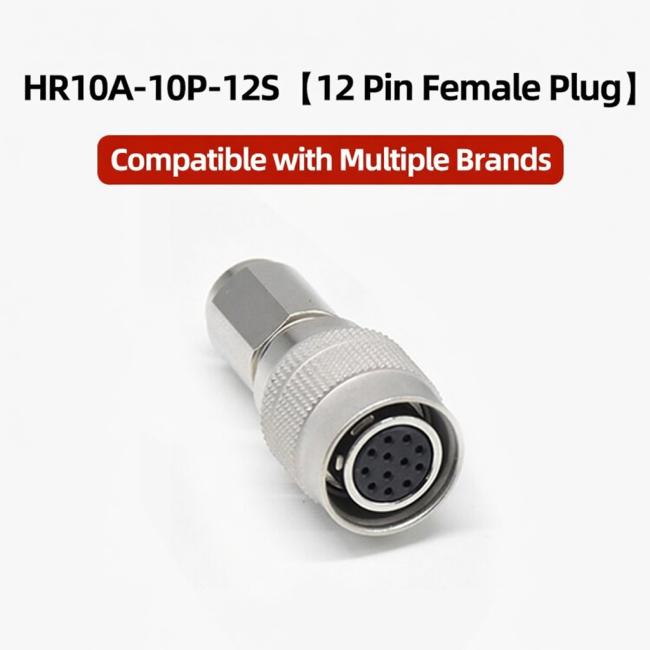

HR10A-10P-12S 12-Pin Female Circular Connector Push-Pull Plug for Industrial Camera & Medical Equipment
HR10A-10P-12S 12-Pin Female Circular Connector Push-Pull Plug for Industrial Camera & Medical Equipment
Product Description
A high-precision, miniature 12-pin female circular connector featuring a secure push-pull locking mechanism. It is designed as a fully compatible alternative to the Hirose HR10A series, providing reliable power and signal transmission for high-density electronic applications.
Key Features
- Seamless Compatibility: 100% compatible with Hirose HR10A-10P-12S(73) standards, ensuring a perfect fit for existing industrial camera setups.
- Easy Push-Pull Locking: Features a quick-release push-pull mechanism for fast, secure, and effortless mating/unmating in tight spaces.
- Industrial-Grade Durability: Built with a high-quality C5911 copper alloy contact and PBT insulator, designed to operate reliably from -40°C to +80°C.
- Compact & High-Density: Supports 12-pin signal/power transmission in a miniature form factor, ideal for space-constrained precision instruments.
Technical Parameters
| Parameter Item | Specification Details |
| Model Number | HR10A-10P-12S (Compatible) |
| Gender | Female Plug (Socket) |
| Number of Contacts | 12-Pin |
| Coupling Type | Push-Pull Self-Locking |
| Operating Temperature | -40°C to +80°C |
| Contact Material | C5911 (Copper Alloy) |
| Insulator Material | PBT Black |
| Shell Material | Zinc Alloy / Nickel Plated |
| Application | Power, Trigger, and I/O for Machine Vision |
Application Scenarios

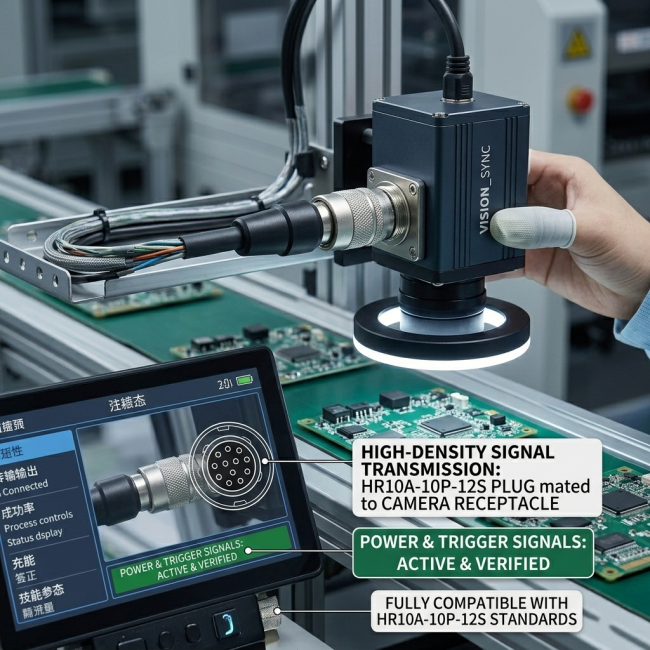

- Machine Vision & Imaging: Power and I/O connections for industrial cameras (e.g., Basler, Sony, Cognex).
- Medical Electronics: Reliable signal transmission for diagnostic instruments and portable medical devices.
- Measuring Instruments: Data acquisition and power supply for high-precision laboratory and field sensors.
FAQ:
Q: What is the main purpose of this cable?
A: It connects industrial cameras to trigger sensors or controllers for synchronized image acquisition.
Q: Is the cable length customizable?
A: Yes, custom lengths and pin assignments are available, contact us for details.
Q: Is it compatible with Basler or Sony industrial cameras?
A: Yes, commonly used with HR series style or similar camera interfaces for power/trigger signals.
Q: Does it support waterproof applications?
A: Many variants are designed with IP-rated protection for harsh industrial environments—confirm with the specific listing.
Q: What is the minimum order quantity (MOQ)?
A: Typically 100pcs or customized from 1k pcs for trial orders.
