Φ6.0 Energy Storage Connector 1500V DC 120A IP67 High Current Power Connector
Φ6.0 Energy Storage Connector 1500V DC 120A IP67 High Current Power Connector

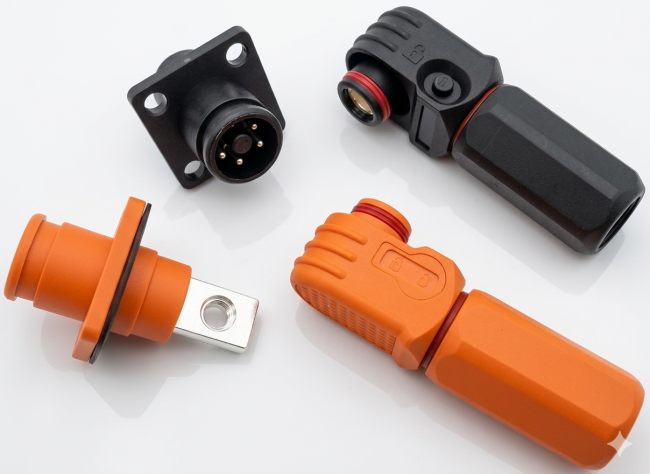

Product Definition
The Φ6.0 Series Energy Storage Connector is a high-performance power interconnection solution designed for energy storage systems (ESS), battery packs, and high-voltage DC applications. Engineered for reliability under harsh environments, it supports up to 1500V DC and 120A current with IP67 protection in mated condition, ensuring safe, stable, and long-lasting electrical connections.
| Item | Specification |
| Series | Φ6.0 Series Energy Storage Connector |
| 1. Mating Cycles | ≥ 500 cycles |
| 2. Cable Range | 10 / 16 / 25 mm² (non-shielded cables) |
| 3. Insertion / Withdrawal Force | < 100 N |
| 4. Rated Voltage | 1500 V DC |
| 5. Rated Current | 60 A / 100 A / 120 A |
| 6. Insulation Resistance | > 2000 MΩ |
| 7. Withstand Voltage | 3000 V AC |
| 8. Protection Rating | IP67 (mated condition) |
| 9. Finger Protection | IP2XB |
| 10. Operating Temperature | -40°C ~ +125°C |
Key Features
- High Voltage Capability: Rated up to 1500V DC, ideal for modern energy storage and renewable systems
- High Current Performance: Supports 60A / 100A / 120A, meeting various power requirements
- Excellent Environmental Protection: IP67 waterproof and dustproof when mated
- Reliable Durability: ≥500 mating cycles for long service life
- Strong Electrical Safety:
- Insulation resistance >2000 MΩ
- Withstand voltage up to 3000V AC
6. Wide Cable Compatibility: Supports 10 / 16 / 25 mm² non-shielded cables
7. Safe Touch Protection: Meets IP2XB finger protection standard
8. Extreme Temperature Resistance: Operates from -40°C to +125°C
9. Secure Connection: Insertion/withdrawal force <100N for stable and user-friendly operation

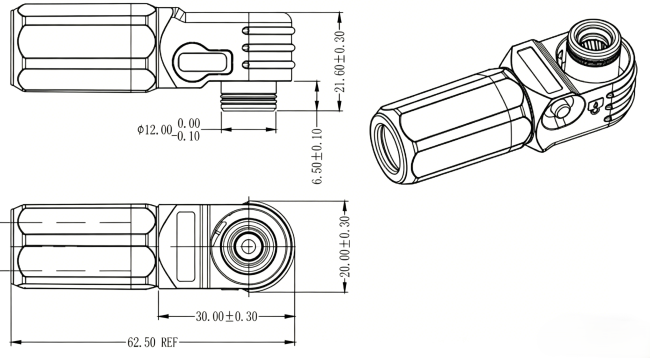

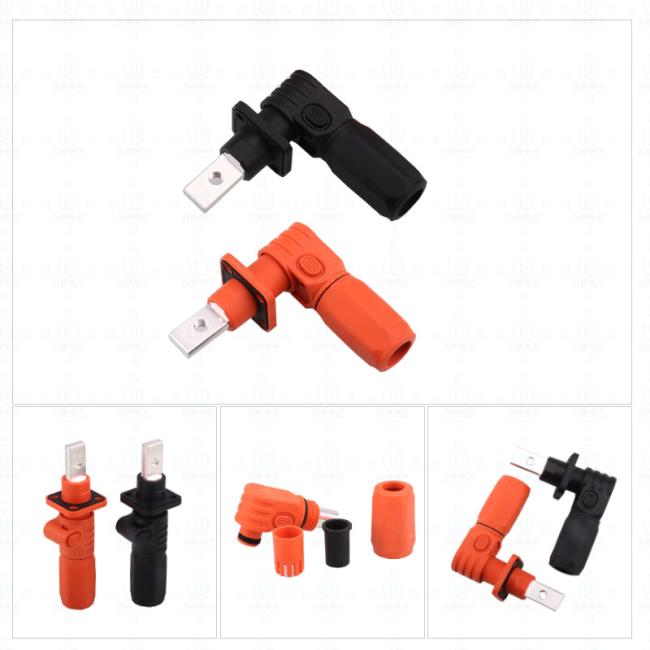

| Male | Part Number | Specifications | Color |
| RT11.00102-00A | RT-A6-K-001A (Black) 120A 25mm2 | PA66-G15 (Black) | |
| RT11.00103-00A | RT-A6-K-001B (Orange) 120A 25mm2 | PA66-G15 (Orange) | |
| RT11.00104-00A | RT-A6-K-001C (Red) 120A 25mm2 | PA66-G15 (Red) | |
| RT11.00148-00A | RT-A6-K-001A (Black) 100A 16mm2 | PA66-G15 (Black) | |
| RT11.00149-00A | RT-A6-K-001B (Orange) 100A 16mm2 | PA66-G15 (Orange) | |
| RT11.00150-00A | RT-A6-K-001C (Red) 100A 16mm2 | PA66-G15 (Red) | |
| RT11.00151-00A | RT-A6-K-001A (Black) 60A 10mm2 | PA66-G15 (Black) | |
| RT11.00152-00A | RT-A6-K-001B (Orange) 60A 10mm2 | PA66-G15 (Orange) | |
| RT11.00153-00A | RT-A6-K-001C (Red) 60A 10mm2 | PA66-G15 (Red) |

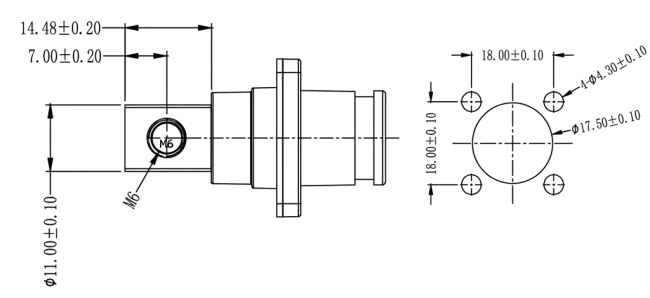

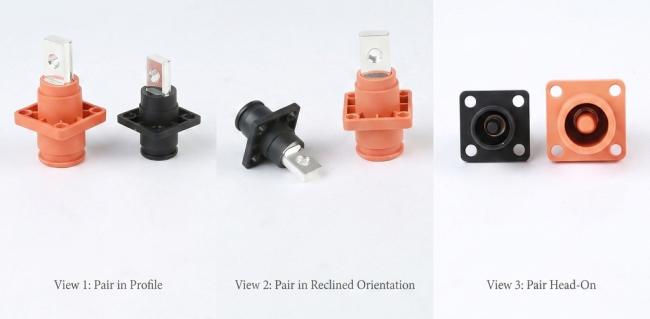

| Female | Part Number | Specifications | Color |
| RT11.00105-00A | RT-A6-J-001A (Black) 120A Socket | PA66-G15 (Black) | |
| RT11.00106-00A | RT-A6-J-001B (Orange) 120A Socket | PA66-G15 (Orange) | |
| RT11.00107-00A | RT-A6-J-001C (Red) 120A Socket | PA66-G15 (Red) |
Application Scenarios
- Energy Storage Systems (ESS): Battery modules, battery racks, and inverter connections
- Renewable Energy: Solar power systems, photovoltaic storage, wind energy storage
- Electric Vehicles & E-Mobility: Battery packs, electric motorcycles, low-speed EV systems
- Industrial Power Equipment: Power distribution units, industrial automation systems
- Charging Infrastructure: DC charging systems and high-power connectors
