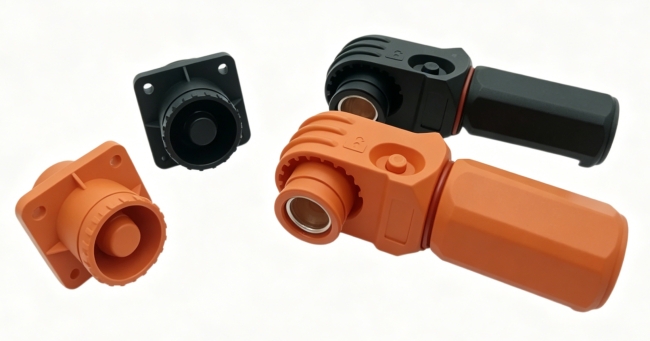

Φ12.0 High Current Energy Storage Connector 1500V DC 350A IP67 Industrial Power Connector
Φ12.0 High Current Energy Storage Connector 1500V DC 350A IP67 Industrial Power Connector
Product Definition
The Φ12.0 Energy Storage Connector is a high-performance industrial power connector designed for high-voltage and high-current applications. It supports up to 1500V DC and 350A current transmission, ensuring reliable electrical connectivity in demanding environments such as energy storage systems, electric vehicles, and industrial equipment.
Built with durable PA66+G15 materials and precision-engineered contacts, this connector provides excellent mechanical strength, thermal resistance, and long service life.
Technical Parameters
| Parameter | Specification |
| Product Series | Φ12.0 |
| Rated Voltage | 1500V DC |
| Rated Current | 250A / 300A / 350A |
| Insulation Resistance | ≥2000MΩ |
| Dielectric Strength | 3000VAC |
| Protection Degree | IP67 (Mated) |
| Mating Cycles | ≥500 |
| Operating Temperature | -40°C ~ +125°C |
| Cable Size | 70 / 95 / 120 mm² |
| Contact Material | Copper Alloy (Silver Plated) |
| Housing Material | PA66 + G15 |

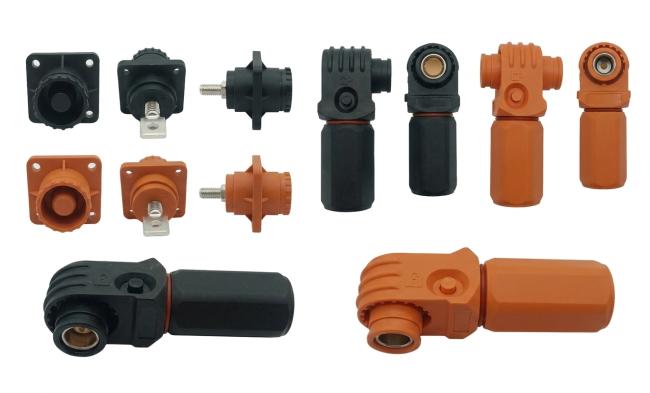

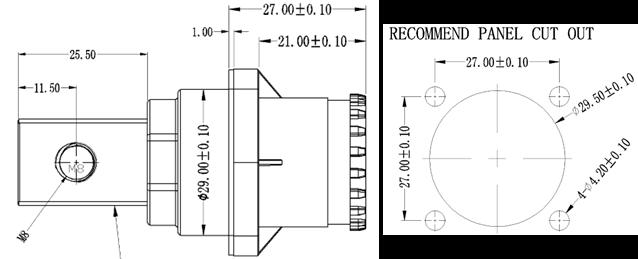

| Installation Type | Plug / Socket / Panel Mount |
Key Features
- High Voltage & High Current Performance: Supports up to 1500V DC and 350A, ideal for energy storage and high-power transmission.
- Industrial-Grade Durability: Made of PA66+G15 reinforced material, offering excellent heat resistance, flame retardancy, and mechanical strength.
- Reliable Electrical Conductivity: Silver-plated copper alloy contacts ensure low resistance, high conductivity, and minimal heat generation.
- Superior Protection: IP67 rated (mated condition), resistant to dust, water, and harsh environments.
- Long Service Life: Designed for ≥500 mating cycles, ensuring durability in repeated use.
- Flexible Cable Compatibility: Supports 70 / 95 / 120mm² cables, adaptable to different power requirements.
- Services: OEM/ODM Available, Fast Delivery, Sample and Factory Direct Supply
Application Scenarios
- Energy Storage Systems (ESS): 1). Battery energy storage cabinets 2). Grid energy storage systems
- Electric Vehicles / E-Mobility: 1). Electric motorcycles 2). Electric scooters 3). EV battery connection
- Industrial Equipment: 1). Power distribution systems 2). Automation equipment
- Battery PACK Systems: 1). Battery module connection 2). High-current power transmission
#Tags
Energy Storage Connector, High Current Power Connector, 1500V DC Industrial Connector
