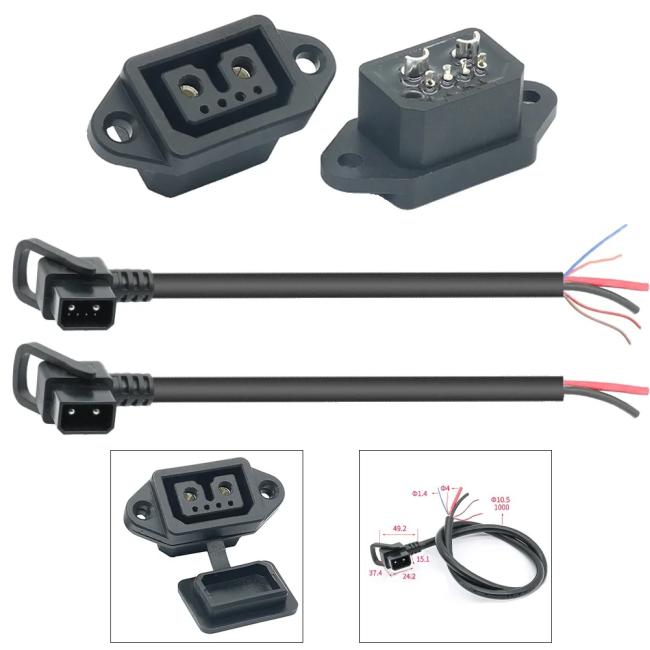

Product Definition
The PINZi 2+4 Series LEVs Charging Connector is a compact, high-reliability quick-connect charging solution designed for electric vehicles. It features 2 power pins (for high current) and 4 signal/communication pins, enabling both power delivery and basic communication or safety interlocking. Built for durability and safety in daily charging environments.
Key Features
- High Safety & Performance: 40A rated current (50A peak) with DC500V rating and low 5mΩ contact resistance.
- Long Service Life: Rated for 5,000 mating cycles.
- Excellent Electrical Properties: High insulation resistance and stable contact performance.

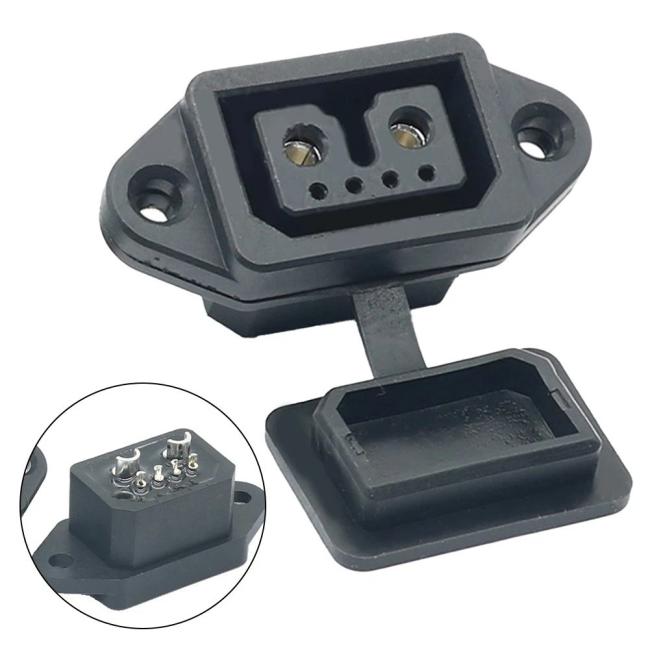

- Compact & Robust Design: Space-saving structure with reliable locking mechanism.
- Wide Temperature Range: Operates reliably from -20°C to +65°C.

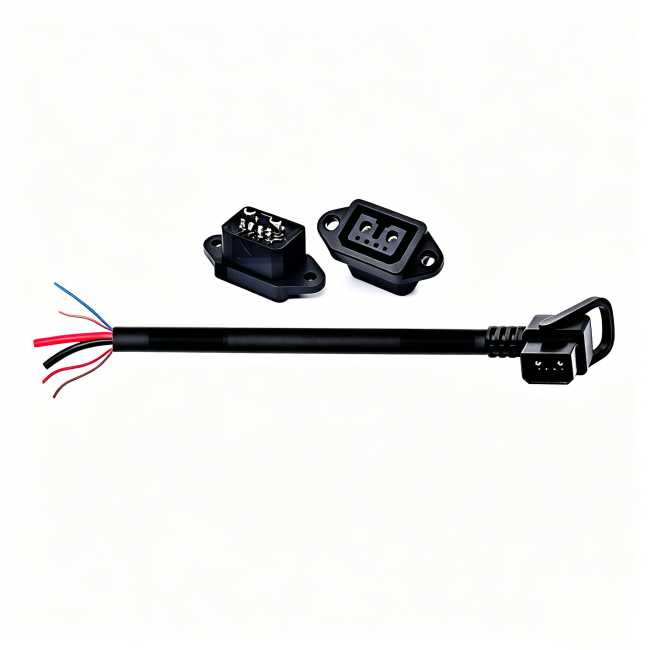

- Complete Set: Includes male and female sockets for easy vehicle and charger integration.
Technical Specifications

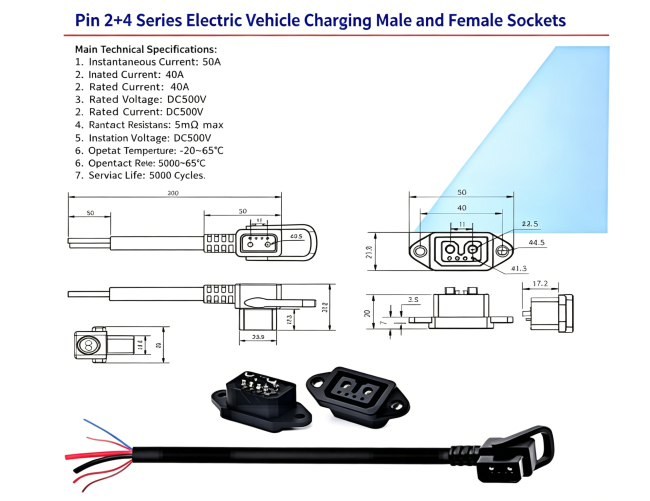

| Parameter | Specification |
| Series | PINZi 2+4 Series LEVs Charging Connector |
| Rated Current | 40A |
| Peak Current | 50A |
| Rated Voltage | DC 500V |
| Contact Resistance | ≤ 5mΩ |
| Insulation Resistance | ≥ 1000MΩ |
| Operating Temperature | -20°C ~ +65°C |
| Mechanical Life | 5,000 mating cycles |
| Pin Configuration | 2 Power Pins + 4 Signal Pins |

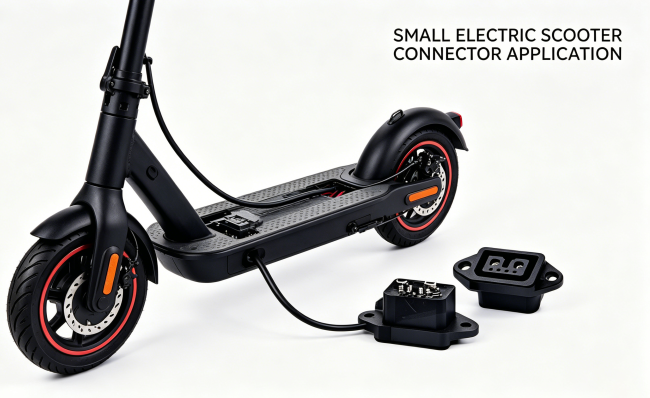

Practical Use Cases
- Electric motorcycles and e-scooters
- Electric tricycles and cargo e-bikes
- Light electric vehicles (LEV)
- Golf carts and utility vehicles
- Portable EV charging stations
- Two-wheeler and three-wheeler charging systems

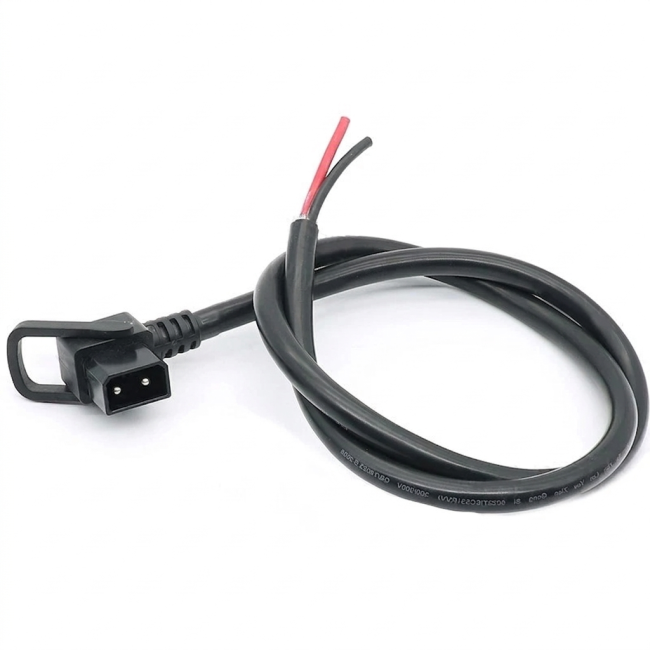

Connector & Cable Assembly FAQ
Q1: What is the difference between the 2 power pins and 4 signal pins?
A: The 2 large pins handle the main charging current (up to 50A peak), while the 4 smaller pins are used for communication, temperature sensing, or safety interlock signals between the vehicle and charger.
Q2: Is this connector suitable for fast charging?
A: It supports standard to moderate fast charging with 40A rated / 50A peak current. It is ideal for most electric motorcycles and light EVs, but not for high-power electric cars.
Q3: How do I ensure a safe and reliable connection?
A: Always match the male and female parts correctly and ensure the locking mechanism is fully engaged. Proper cable sizing and professional installation are recommended to prevent overheating.
