Receptacble Type With Rugged Metal Shells Rear Mount Female Male AISG Connector
Receptacble Type With Rugged Metal Shells Rear Mount Female Male AISG Connector
M16 series connector equivalent as Binder eries 423, 723 and 425 family of connectors are rugged, high-performance circular connectors with excellent EMI shielding and IP67. Ideal choice for severe industrial and commercial applications. Panel-mounted receptacle are available in many styles and mounting methods.
Rugged metal shells
Straight or right-angle cable connector
Right-angle cable connectors adjustable in 4 radial positions
Excellent 360° EMI shielding and IP67
Internal strain relief
2 to 24 contacts,gold(Au)- or silver(Ag)-plated
DIN EN 61076-2-106
M16 Straight female male 2pin 3pin 4pin 5pin 6pin 7pin 8pin 12pin 14pin 16pin 19pin 24pin rear panel mount connector
|

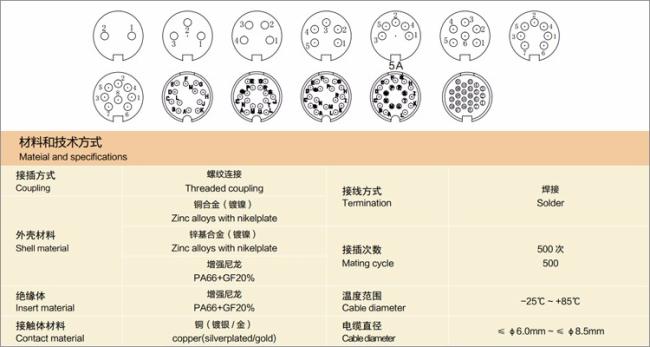

Electrical & Mechanical data
|
M16 Series Panel Mount Connectors
|
|
Stardard
|
IEC 61076-2-106
|
|
Rated current
|
5a-7a
|
|
Rated voltage
|
500v-1500v
|
|
Couplingg nut
|
Brass with nikel palsted screw
|
|
Orientation
|
straight
|
|
IP rating
|
IP67
|
|
Connector contacts
|
Brass with gold plated
|
|
Ambient temperature
|
-25°C ~ + 85°C
|
