M12 right angle Panel mount Male Female automative 5 pin solder waterproof antenna AISG connector

Price Negotiable

Price: Negotiated

MOQ: 100pcs

Delivery Time: 30 working days

Brand: Ritian

Product Description

M12 right angle Panel mount Male Female automative 5 pin solder waterproof antenna AISG connector

Product Fetures

1.Extremely strong resistant to acid,alkali,chemical cleaning agent /reagent properties;

2.Resistant to welding spark,continually twist ;

3.Resistant to oil,coolant ,lubricant and emulsion;

4.Pin configurations:2,3,4,5,7,8,12,14,19,24 properties ;

5.Shield and un-shield Version Available with metal or plastic housing;

6.Meet IP67/IP68 waterproof requirements;

7.Temperature Range:-25℃ ~ +85℃;

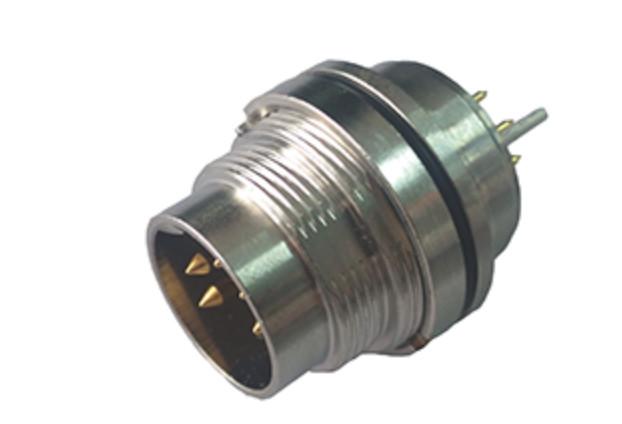

M12 PCB connectors are front and rear bulkhead mounted M12 connectors designed for easy handling on the PCB and

compatibility with wave soldering processes. M12 PCB connectors include an incorporated wire clip with an integrated PCB retention

feature to secure it in the PCB during the reflow process, individual wires come stripped and pre-tinned ready for soldering.

General features:
Standard		IEC 61076-2-101
Termination		Solder PCB
Connector locking system		Screw
Degree of protection		IP67, IP68, IP69K
Ambient temperature(operation)		-25°C~+85°C
Mechanical operation		>100 mating cycles
Customs tariff number		8538900000
Environmental compliance		RoHs, Reach
Electrical parameters:
Rated voltage		30V~250V
Rated impulse voltage		500V
Rated current(40°C)		1.5A~4A
Contact resistance		≤5mΩ
Insulation resistance		≥100MΩ
Materials:
Connector body		TPU
Male pin		Brass with gold plated
Female pin		Phosphorus copper with gold plated
Shell		Brass with nickel plated
O-ring material		Fluorine ring
Black glue		Epoxy resin
