Microcrystalline Zirconia Special-shaped Parts for Medical and Semiconductor
Price:
Negotiable
MOQ:
2
Delivery Time:
5-25days
Brand:
Sanxin
Product Description

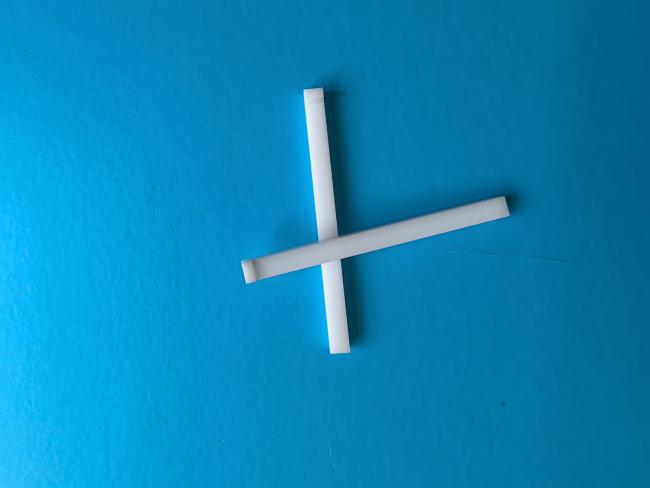

Microcrystalline Zirconia Special-shaped Parts Medical and Semiconductor Precision Ceramic Cores
Special-shaped parts made of nano-zirconia, with a bending strength of 1200MPa and a mirror polish of Ra ≤0.1μm, break through the performance boundaries between metal and plastic. In the fields of medical implants, semiconductor transmission, and high-temperature sensing, they have become the precision cornerstone for carrying extreme working conditions in millimeter-level space.
Technical Specifications
| Parameters | Standard Range | Ultimate Accuracy |
|---|---|---|
| Dimension Range | 0.5-50mm | Microstructure 0.1mm |
| Profile Tolerance | ±0.005mm | Certified Coordinate Measurement |
| Surface Roughness | Ra 0.1-0.2μm | White Light Interferometry |
PS. :The size is for reference only and can be customized
Applications
Medical and Life Science
- Artificial Joint Balls: Friction Coefficient <0.05 (Lifespan >30 Years)
- Dental Implant Abutments: Bite Resistance >1500N
- Surgical Robot Transmission Rods: Non-Magnetic Interference, MRI Compatible
Semiconductors and Optics
- Wafer Transfer Robots: Static Dissipation 106-108Ω (Dust Explosion Proof)
- EUV Lithography Machine Ceramics: Thermal Deformation <0.001mm/100°C
- Fiber Optic Connector V-Grooves: Angular Tolerance ±0.01°
High-Temperature Industrial Cores
- Automotive Oxygen Sensor Probes: Withstands 1000°C Thermal Shock Cycles
- High-Temperature Valve Seals: Acid and Alkali Corrosion Resistance (pH 0-14)
- Fuel Cell Bipolar Plates: Zero Risk of Hydrogen Embrittlement
Specialty Industries
- Spacecraft Bearing Balls: Vacuum Dry Friction Life Increased by 10 Times
- Watch Pallet Forks: Resistant to Microvibration Wear
- High-Precision Measurement Probes: Zero Thermal Drift
