Non-Magnetic Tungsten Carbide Precision Hole Base with HRA92 Hardness and ±0.001 mm Tolerance for Sensitive Equipment
Price:
Negotiable
MOQ:
2
Delivery Time:
5-30days
Brand:
Sanxin
Product Description

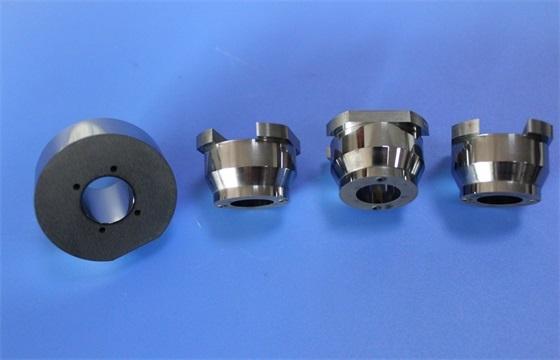

Non-Magnetic Carbide Precision Hole Bases & Mounting Blocks for Sensitive Equipment
Our Non-Magnetic Tungsten Carbide Precision Hole Bases are engineered to serve as the ideal foundation for demanding applications. Manufactured from specialized WC-Ni (Tungsten Carbide-Nickel) alloy, these precision components deliver the essential combination of absolute magnetic neutrality, exceptional dimensional stability, and superior wear resistance for applications where standard steel or cobalt-bonded carbide cannot be used.
Exceptional Hardness & Dimensional Stability
| Property | Typical Value | Benefit |
|---|---|---|
| Hardness | 90 - 92 HRA | Resists wear and deformation over millions of cycles |
| Density | 14.8 - 15.0 g/cm³ | High rigidity, excellent vibration damping |
| Thermal Expansion | 5.5 × 10⁻⁶ /K | Maintains precision across temperature variations |
| Compressive Strength | > 4000 MPa | Withstands high clamping forces without deformation |
Precision Hole Machining
Our manufacturing capabilities achieve exceptional accuracy for critical hole features:
- Hole diameter tolerance: ±0.002 mm (H4/h4 grade)
- Hole position tolerance: ±0.005 mm
- Surface finish (bore): Ra 0.2 - 0.4 μm (ground), Ra 0.1 μm (polished)
- Perpendicularity: ≤ 0.003 mm per 10 mm depth
Key Applications & Industries
| Industry | Application | Why Choose Our Hole Base |
|---|---|---|
| Semiconductor Manufacturing | Wafer stage mounting, mask aligner bases, metrology equipment fixtures | Zero magnetic interference with electron beams, wear-free precision over millions of cycles |
| Medical Imaging (MRI) | RF coil mounts, patient positioning system bases | Absolute non-magnetic property ensures image fidelity and patient safety |
| Aerospace & Defense | Guidance system component mounts, inertial navigation bases | Non-magnetic signature, exceptional stability under vibration and temperature variation |
| Precision Metrology | CMM fixture bases, laser interferometer mounts | Thermal stability maintains calibration accuracy |
| Scientific Research | Electron microscope stages, particle detector mounts | No magnetic field distortion, ultra-high vacuum compatible |
| Automated Assembly | Precision fixture bases, robotic end-effector mounts | Long-term accuracy without wear-induced drift |
Why Partner With Us?
- Specialized Expertise: Years of experience manufacturing precision carbide components for magnetic-sensitive applications
- Application Engineering: Our team helps optimize hole base design for your specific mounting requirements
- Precision Manufacturing: Advanced CNC grinding, EDM, and coordinate measurement capabilities
- Global Supply: Consistent quality, reliable delivery, and professional export documentation worldwide
- ISO 9001 Certified: Quality management systems ensure consistent product quality
