Diameter 1.01 Cemented Carbide Dowel Pins with Superior Wear Resistance and High Precision
Precision cemented carbide dowel pins, core pins, and press-in pins manufactured from tungsten carbide for demanding industrial applications. These components are available in custom non-standard configurations to meet specific tooling requirements.

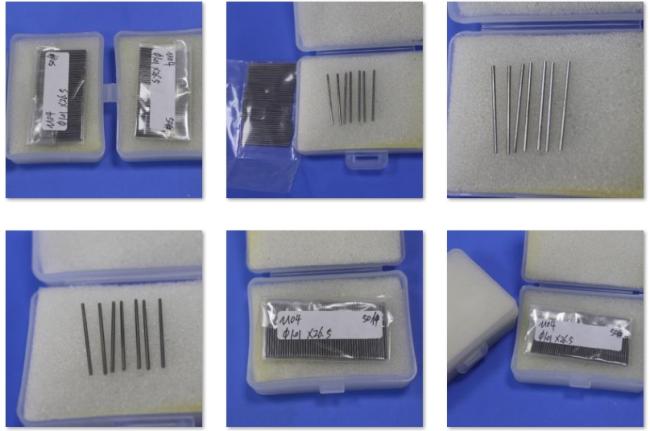

- Dimension: Φ1.01 x 26.5mm
- Surface Roughness: 0.8
- Diameter Tolerance: +0.005mm
- Exceptional physical stability for reliable performance
- Superior wear resistance in demanding applications
- High temperature and corrosion resistance capabilities
- Professional-grade precision for mold accessories and needle sets
- Custom manufacturing to client specifications and drawings
| Property | Range |
|---|---|
| Grain Size (μm) | 0.8-2.0 |
| Cobalt Content (% Co) | 6-10 |
| Density (g/cm³) | 14.45 |
| Hardness (HRA) | 88-92 |
| Flexural Strength (MPa) | 3200-3800 |
| Young's Modulus (GPa) | 570 |
| Compression Strength (MPa) | 4700 |
These high-precision carbide core pins serve as essential components in fiber-optic ceramic powder injection molding processes. Designed for ceramic ferrule manufacturing, they maintain exceptional precision tolerances of ±0.001 to ±0.0005mm, ensuring optimal performance in optical communication systems.
Ceramic ferrules, manufactured from nanometer zirconia materials, require components that withstand acidic, corrosive, and high-temperature environments. Our cemented carbide core pins provide the durability needed for mass production of these critical optical communication components.
