250V 10A D Series Single Phase Filter Dual Stage EMI Filter Wire Output Filter For Automotive

Price Negotiable

Price: Negotiable

MOQ: 200pcs

Delivery Time: 5-8 work day

Brand: YBX

Product Description

250V 10A D Series Single Phase Filter Dual Stage EMI Filter Wire Output Filter For Automotive

Single Phase Filter:

EMI Filter Specification:

Item	Single Phase Filter
Model	YB22D2-10A-W
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	150K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	115VAC 250VAC
Rated Current	1A~20A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC
Maximum Leakage Current	115VAC/50HZ 0.8mA Max
MOQ	100pcs
Price	USD1~2/Meter
Lead Time	5~15 weekday

Features:

-- The rated current can be offered from 1 to 20 amps.

-- Various output selections such as Fast-on termianl, Wire ande M4 screw terminal

-- Optional medical version R(5) type

-- The compact size can be applied to various situations.

-- There are a variety of parts and combinations to meet different customer's EMC tests

Typical Applications:

1. Electrical and electronic equipment

2. Medical equipment

3. Datacom equipment

4. Office automation equipment

Rule of Nomination of EMI Filter

YB	22	D2	-	10A	-	W
\|	\|	\|		\|		\|
Single Phase	Circuit	Dimension		Current		Output Connection
	22:22 circuit	D2		3A : 3 amp		Q:fast-on tab 250
				6A : 6 amp		W:wire
				10A : 10 amp		S:M4 screw

*Q: Fast-on 6.35x0.8mm S: Screw lug W: UL1015 18awg

Filter Selection Table:

Model No.	Rated Current @40°C	Terminal Options*			Leakage current 250V/50Hz	Electrical Schematic	Rated Voltage(V)	Operating Frequency(Hz)
		Terminal Options*

YB22D1-1A	1A	Q	-	W	<0.8mA	Fig.1	115/250V	50/60Hz
YB22D1-2A	2A	Q	-	W		Fig.1
YB22D1-3A	3A	Q	-	W		Fig.1
YB22D1-4A	4A	Q	-	W		Fig.1
YB22D1-6A	6A	Q	-	W		Fig.1
YB22D2-6A	6A	Q	S	W		Fig.1
YB22D2-8A	8A	Q	S	W		Fig.1
YB22D2-10A	10A	Q	S	W		Fig.1
YB22D2-15A	15A	Q	S	-		Fig.1

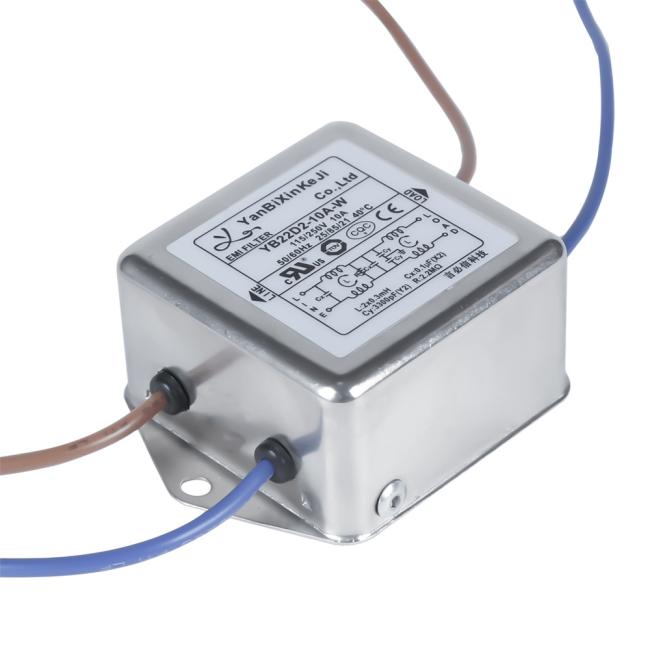

YB22D2-10A-W Product Picture:

EMI Filter Series

Choose us, we have the most complete range of EMI filters, including IEC Inlet Filter, Power Entry Module Filter, Single Phase Filter and Three Phase Filter, etc. Please contact us, we have professional technicians to help you solve the EMI and EMC problems.
