YB12D2 One Stage Single Phase Filter M4 Screw Output Power Line Noise Filter
115vac/250vac Single Phase Filter Power Line Filter For Fitness Equipment
High Performance One Stage 10A Single Phase Filter:
YB12D2-10A-S(R) Single Phase Filter:
YB12D2-10A-S(R) is the single phase filter. According to different equipment to choose the appropriate output mode, its connection mode can be selected fast-on terminal, M4 screw, electronic wire. The maximum rated current up to 50 amps. Designed with both common mode and differential mode performing high noise suppression.
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB12D2-6A | D2 | 6 | Fast-on terminal |
| YB12D2-10A | D2 | 10 | |
| YB12D2-15A | D2 | 15 | Wire |
| YB12D2-20A | D2 | 20 | |
| YB12D2-30A | D2 | 30 | M4 Screw |
| YB12D2-40A | D2 | 40 |
*Q: Fast-on 6.35x0.8mm
S: Screw lug
W: UL1015 18awg
Naming Rule:
| YB | 12 | D2 | - | 10A | - | S |
| ∣ | ∣ | ∣ | ∣ | ∣ | ||
| Our brand | Circuit | Dimension | Current | Output Connection | ||
| 12:12 circuit | D3 | 10A :10 amp | Q:fast-on tab 250 | |||
| 20A :20 amp | W:wire | |||||
| 30A :30 amp | S:M4 screw |
Features Of Single Phase Filter:
-- The rated current can be offered from 1 to 50 amps.
-- Various output selections such as M4 screw terminal wire and terminal block.
-- Low leakage current version upon requested.
-- The compact size can be applied to various situations.
-- It meets the relevant safety approval regulations, such as UL, CSA and the CE marking.
EMI Filter Application:
1. Electrical and electronic equipment
2. Medical equipment
3. Datacom equipment
4. Office automation equipment
Technical Specification:
| Item | Single Phase Filter | Rated Current | 1~10A |
| Model | YB12D2-10A-S(R) | Environmental Temperature | 40°C |
| Transfer Function | Low Pass | Temperature Range | 25 / 085 / 21 |
| Package Type | Surface Mount | Operating Frequency | 50/60HZ |
| Nominal Center Frequency | 10K-30MHZ | Line to Line | 1450VDC |
| Insertion Loss | 60~90dB | Line to Ground | 2250VDC |
| Input Impedance | 50Ω | Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| Rated Voltage | 115V/250V | MOQ | 100pcs |

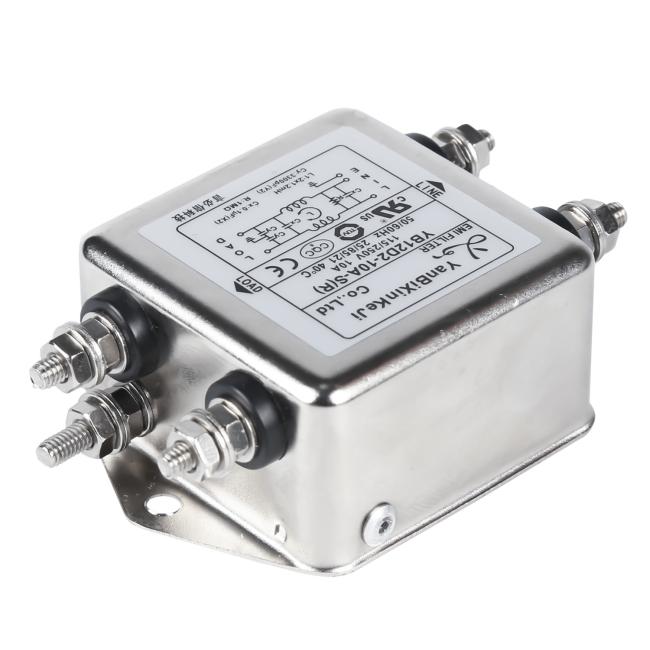

YB12D2-10A-S(R) Filter Picture:
Electrical Schematic:
Mechanical Dimension(Unit: mm)
Our Certificates:
