M4 Screw Terminal Single Phase Filter 150KHz-30MHz One-Stage EMI Filter
High Performace One-Stage Emi Filter 115V/250V Single Phase Power Filter
Screw Terminal Single Phase Filter:
YB11E2-20A-S is the single phase one-stage filter for general purpose.M4 screw terminal single phase YB12E4 filter are designed with both common mode and differential mode performing high noise suppression. The connection mode can be fast-on terminal, screw or electronic wire.
Features Of YB12E2 Single Phase Filter:
-- The rated current can be offered from 1 to 20 amps.
-- Various output selections such as fast-on terminal,M4 screw terminal.
-- Low leakage current version upon requested.
-- The compact size can be applied to various situations.
-- t meets the relevant safety approval regulations, such as UL, CSA and the CE marking.
Product Parameters:
- Model: YB12E4-20A-S(R)
- Output Mode: M4 screw
- Rated Voltage: 115/250 VAC
- Rated Currents: Up to 20A
- Operating Frequency: 50/60Hz
- Hipot Rating (Line-To-Line): 1450VDC
- Hipot Rating (Line-To-Ground): 2250VDC
- Operating Temperature: -25 ~ +85°C
- Safety Compliance: UL, CSA, CE
Application:
Application for Electrical and electronic equipment,Medical equipment,Datacom equipment,Office automation equipment
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB12E4-3A | E4 | 3 | Fast-on terminal |
| YB12E4-6A | E4 | 6 | |
| YB12E4-8A | E4 | 8 | Wire |
| YB12E4-10A | E4 | 10 | |
| YB12E4-15A | E4 | 15 | M4 Screw |
| YB12E4-20A | E4 | 20 |
*Q: Fast-on 6.35x0.8mm
S: Screw lug
W: UL1015 18awg
Naming Rule:
| YB | 12 | E4 | - | 20A | - | S(R) |
| | | | | | | | | | | ||
| Our brand | Circuit | Dimension | Current | Output Connection | ||
| 12:12 circuit | E4 | 6A :6 amp | Q:fast-on tab 250 | |||
| 8A:8 amp | W:wire | |||||
| 10A:10 amp | S:M4 screw | |||||
| 15A:15 amp | (R) resistance | |||||
| 20A:20 amp |

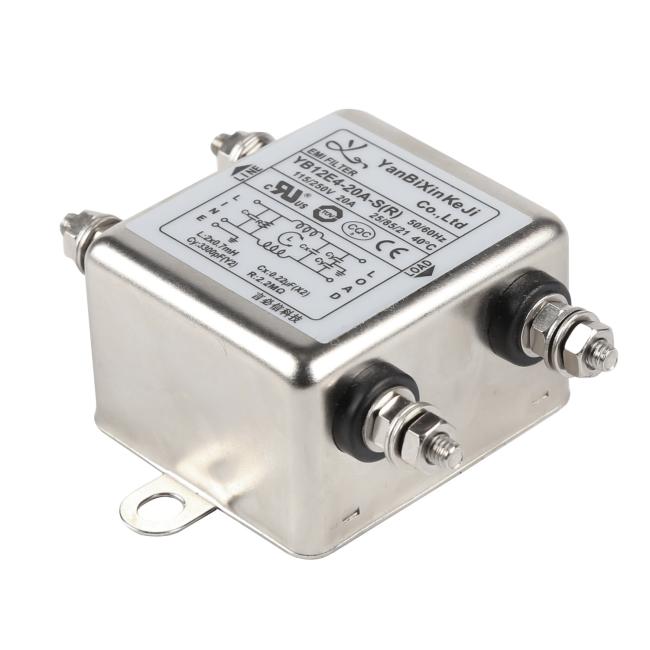

YB12E4-20A-S(R) Filter Picture:
Electrical Schematic:
Mechanical Dimension(Unit: mm)
Our Advantages:
-- We are a listed company. NO:667344, brand guarantee, reliable quality
- We have UL; cUL; TUV; CQC; CE; ROHS; ISO9001:2015; REACH certification to ensure the product quality
-- We have the relevant professional experimental equipment, so we can provide a free diagnostic conducting test for you.
-- Automation technology, scale production, excellent price, good service, fast delivery!
-- After-sales service: free replacement within three months, free maintenance within 6 years, life-long maintenance
-- Cooperate with the top scientific research laboratory, We have a professional R&D team
