Metal 120V 250V Single Phase RFI Filter Two Stage EMI EMC Filter
Metal 120V 250V Single Phase RFI Filter Two Stage EMI EMC Filter
3A 120V 250V Electrical Noise Filter, RFI two-stage EMI EMC filter
Technical Specification:
| Item | Power line Filter |
| Model | YB22D1-3A-W |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | Negotiated |
| Price | Negotiated |
| Lead Time | 5~15 weekday |
Features:
-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device
-- Various terminal options allow you to select
-- There are a variety of parts and combinations to meet different customer's EMC tests
-- Customized products according to customer's requirements.
Typical Applications:
-- Electrical and electronic equipment
-- Medical equipment
-- Building automation
-- Office automation and datacom equipment
Rule of Nomination:
YB 22 D1 - 3A - W/Q ( 5 )
¦ ¦ ¦ ¦ ¦ ¦
circuit case current connection optional
*Q: Fast-on 6.35x0.8mm
S: Screw lug
W: UL1015 18awg
Electrical schematic:

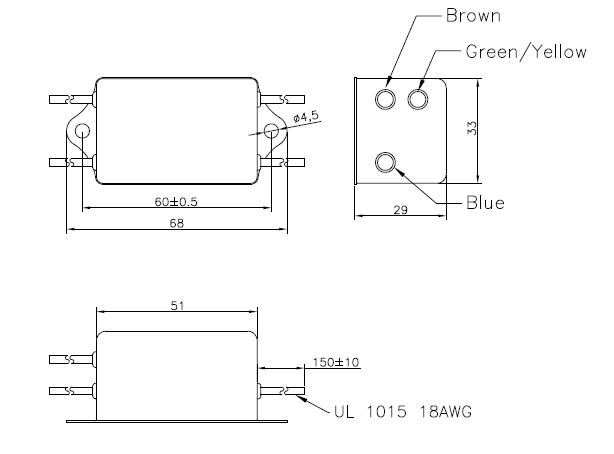

Mechanical Dimension(Unit: mm)
Insertion loss table(In 50ohm system according to IEC/CISPR No.17)
Common mode -------- differential mode
1A 3A
