220V 8A 10A two-stage AC power line EMI EMC Filter with good attenuation 50HZ/60HZ
Technical Specification:
| Item | Power line Filter |
| Model | YB22D1-8A-W |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 8A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/50HZ 0.8mA ,115VAC/60HZ 0.4mA |
| MOQ | Negotiable |
| Price | Negotiable |
| Lead Time | 20~25 days |
Features:
-- YB22 has designed two-stage filtering, with good differential and common-mode attenuation.
-- Various terminal options allow you to select.
-- There are a variety of parts and combinations to meet different customer's EMC tests
-- Customized products according to customer's requirements
Typical Applications:
-- Electrical and electronic equipment
-- Medical equipment
-- Datacom equipment
-- Office automation equipment
Rule of Nomination:
YB 22 D1- 8A - W/Q ( R 5 )
¦ ¦ ¦ ¦ ¦
circuit case current connection optional
*Q: Fast-on 6.35x0.8mm
S: Screw lug
W: UL1015 18awg
Electrical schematic:
Fig.1 Standard type
Fig. 2 R5 type

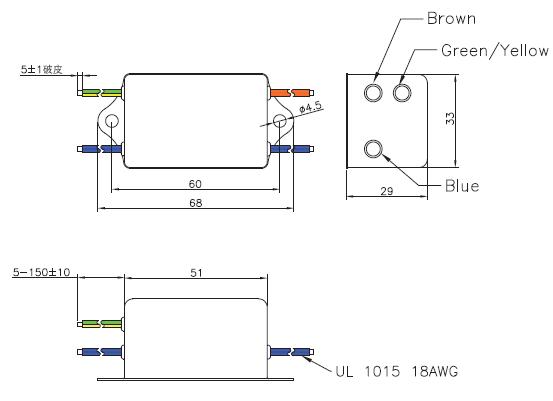

Mechanical Dimension(Unit: mm)

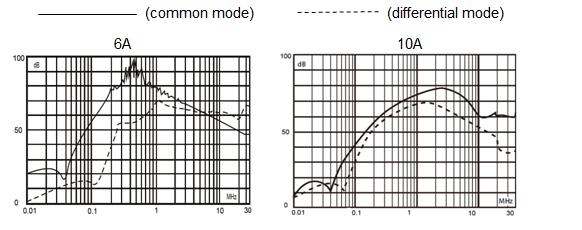

Insertion loss table(In 50ohm system according to IEC/CISPR No.17)
Packaging:
Power Line Filter: CTN/150pcs
N/G W.: 14.5/16.6KG
Measures:0.565*0.285*0.225m
Shipment:
---Shipping terms: DHL, UPS, FedEx, TNT, EMS
---Port is Shenzhen or as requests.
