Full Stainless Steel 2T RO Water Treatment System Plant For Drinking Water
| 1. Product Description |
What is Reverse Osmosis( RO)?
Reverse osmosis (RO) is a water purification process in which water is forced through a semi-permeable membrane that removes 90-99% of tap water impurities. The result is water that is free of minerals and other contaminants. Membrane type determines the amount of dissolved solids a unit is capable of removing.
| 2. Product Parameter |
·NO chemical regeneration
·No hazardous waste discharge , be good for protecting environmental
·Continuous operation , simple operation
·Easy installation , maintenance and maintenance
| 3. Breif Features |
2). No need the chemical regeneration, easy operation
3). RO system choose the import USA DOW membrane
4). Automatic switch on when low water level, and switch off when high water level
5). RO membrane can backwash automatic and reduce thepollution.
6). Water shortage protection for multi-stage pump
7). Porduction water condutivity meter can test the monitoring quality on line contionuosly.
8). Low operation Cost and Long life span
9). It is PC program controller
10). Easily control and Maintained.
11). Auto membrane flushing
12). Environmental protection, Low power consumption
13) Auto flush/backwash
14) Low /high pressure protection
| 4. Product Processing |
Flow chat

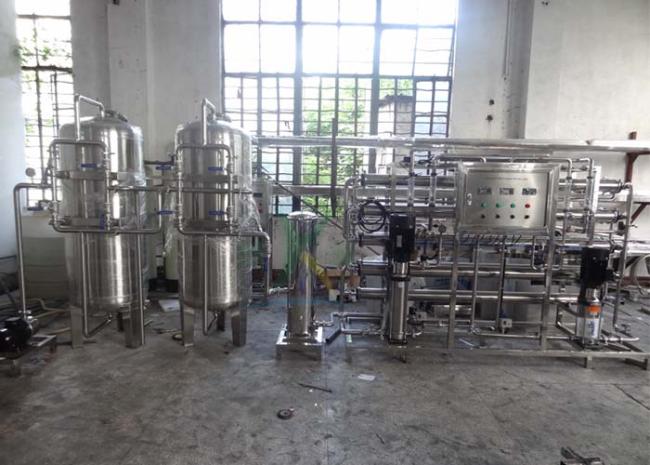

raw water→ 1 booster pump→ 2 sand(multi-medium) filter→3 active carbon filter→4 softener (optional)→ 5 security(micron) filter→6 high pressure pump→7 reverse osmosis system→ 8 UV sterilizer (ozone generator) →pure water storage tank
Function of each part of water treatment plant
1.booster pump-- provide the pressure to quartz sand filter/active carbon filter

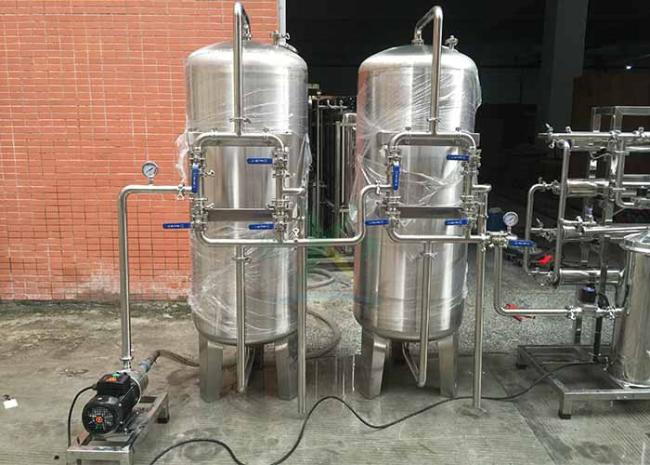

2.Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.
3.Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4.Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5.Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um
6.High pressure pump-- Provide the high pressure to RO membrane

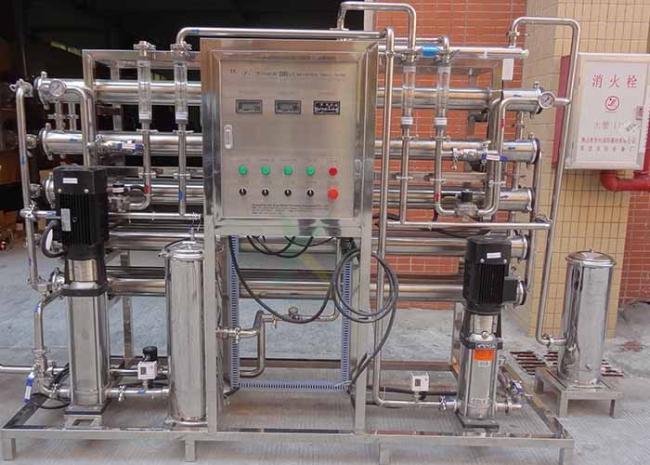

7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions
8.UV sterilizer or ozone generator--- kill bacteria
| 5. Application |
Water treatment plant application:
1. Electronic industry: Pre-filter for ultra pure water, chemical products and pure water
2. Food and beverage industry: filter for mineral water, wines and fruit juice, bottled drinking water
3. Medicine industry: filter for drug liquid
4. Chemical industry: filter for organic solvent
5. Petroleum industry: filter for oil-field flooding
