60Hz Ion Exchange Water Treatment System , Fiber Glass SS 304 Mixed Bed Filter 500LPH RO Deionized Water Equipment
Ion Exchange Water Treatment System Fiber Glass SS 304 Mixed Bed Filter 500LPH RO Water Deionized Equipment
Ion exchange system normally use reverse osmosis system as it's pre-treatment system
1. Product Description /Ion Exchange Water Treatment System
Equipment summarize:
Ion exchange system is mainly used for producing pure water and high pure water, It has been widely used in many industrial fields, such as medicine, chemical, electronics, painting, beverage, feed water of middle and high pressure boiler. feed water. Compared with the reverse osmosis system that introduced in recent years, it has the characteristics of thorough removal of ions, low requirement of pretreatment and cheap price. In the preparation of high purity water, for ion exchange technology, there is no alternative equipment at present. When the total salt content below 400mg/L, according to different user requirements, conductivity of product water between 0.2~1.0 s/cm. If the total salt content of feed water above 500mg/L, it can be combined with reverse osmosis to remove salt, and the product water quality is more higher. We can carry out individual engineering design, auxiliary machine matching, installation and debugging for users, and formulate operating procedures, training and so on.
2. Product Details /Ion Exchange Water Treatment System
kyro-500lph Ion exchange equipment
| 1. Capacity: 500L/H, we can do from 250L/H - 50,000L/H. |
| 2. Voltage: 110V-130V /220V-240V /380V-415V, 50Hz /60Hz, single phase/3phase |
| 3. Water recovery rate: 50-75%, big capacity machine can reach to 85% |
| 4. Source water: city water, underground water, river water.... |
| 5. Product water: ultra pure water |

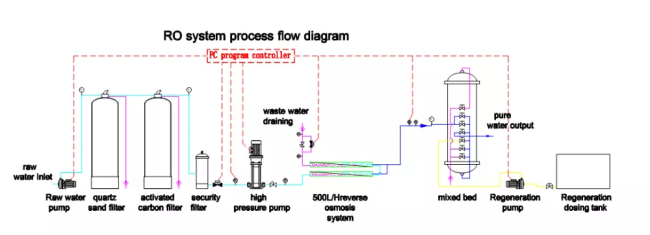

3. Working Process /Ion Exchange Water Treatment System
| Items | Function | Remark |
| Raw water tank | Store water, buffering pressure, overcome instability of supplying water by pipe | Customer provide for themselves |
| Raw water pump /booster pump | Provide needed pressure for every pretreatment filter | CNP pumps or pumps |
| Mechanical filter /quartz sand filter /sand filter | get rid of turbidity, suspended mater, organic matter, colloid ect. | fiber glass /stainless steel vessel |
| Activated carbon filter | remove color, free chloride, organic matter, harmful matter and so on. | fiber glass /stainless steel vessel |
| Water softener/ demineralizer / Na+ exchanger | reduce hardness of raw water | automatic regeneration |
|
Security filter/ pp filter/ PP sediment filter |
prevent large particles, bacteria, viruses into RO membrane | |
| High pressure pump | provide high pressure to RO membrane(at least 2.0Mpa) | CNP pumps or pumps |
| RO system | remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts. | USA Filmtec Dow |
| UV sterilizer | kill bacteria in pure water | 9000 hours |
| Mixed bed | make ultra pure water. Treated water conductivity will be ≤0.5μs/cm |

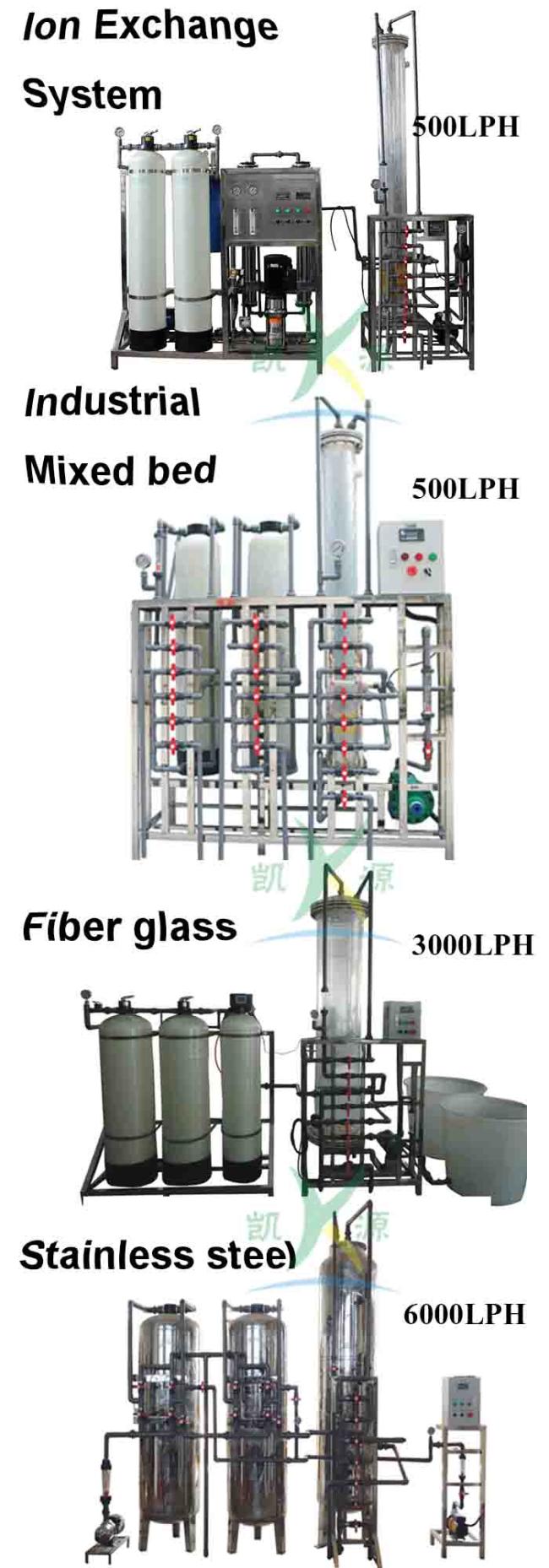

4. Pictures Show /Ion Exchange Water Treatment System
Welcome to send us inquiry if you're interested in our products! Thank you!
