SS304 5TPH Reverse Osmosis Water Purification Plant 380V 50Hz 3 Phase
SS304 5TPH Ro Water Treatment Plant / 2000LPH Reverse Osmosis Water Purification Plant
Machine Introduction:
Stainless Steel Hot Sale Water Treatment Plant Water Purifying Plant suitable for such industries as cosmetics, pharmacy has been deeply favored by users for its stable water quality and simple operation.
The system solves the troubles of frequent regeneration and cleaning during the use of ion exchanging water purifier. By adopting physical principle, it enables the water to pass the reverse osmosis film with a diameter of one ten-thousandth of a micron and separates impurities, ion, microbes and colloids in the water, so as to meet the water requirements in cosmetics industries.
| (1) Imported RO membrane; |
| (2) High-pressure pump; |
| (3) SS 304 bracket, pipe U-PVC engineering plastic pipes, pressure 25KG/CM2 |
| (4) Instrument Control Cabinet; |
| (5) Automatic flushing system, imported solenoid valve actuator; |
Feed water(source water):
city water, river water, lake water, underground water(borehole, well), brackish water, sea water......
Treated water:
| 1. Electronic industry: Pre-filter for ultra pure water, chemical products and pure water |
| 2. Food and beverage industry: filter for mineral water, wines and fruit juice |
| 3. Medicine industry: filter for drug liquid, gases |
| 4. Chemical industry: filter for organic solvent |
| 5. Petroleum industry: filter for oil-field flooding |
Parameter:
| Model | Capacity(L/h) | power(KW) | Membrane | EntranceDiameter(mm) | floor space(M2) |
| RO-0.5 | 500 | 2 | 4040*2 | Φ25 | 2 |
| RO-1 | 1000 | 2 | 4040*4 | Φ32 | 3 |
| RO-2 | 2000 | 4 | 8080*2 | Φ40 | 4.5 |
| RO-3 | 3000 | 5 | 8080*3 | Φ50 | 12 |
| RO-4 | 4000 | 7 | 8080*4 | Φ50 | 17 |
| RO-5 | 5000 | 7.5 | 8080*5 | Φ50 | 18 |
| RO-10 | 10000 | 16 | 8080*10 | Φ63 | 25 |
| RO-15 | 15000 | 21 | 8080*15 | Φ75 | 30 |
| RO-20 | 20000 | 30 | 8080*20 | Φ90 | 40 |

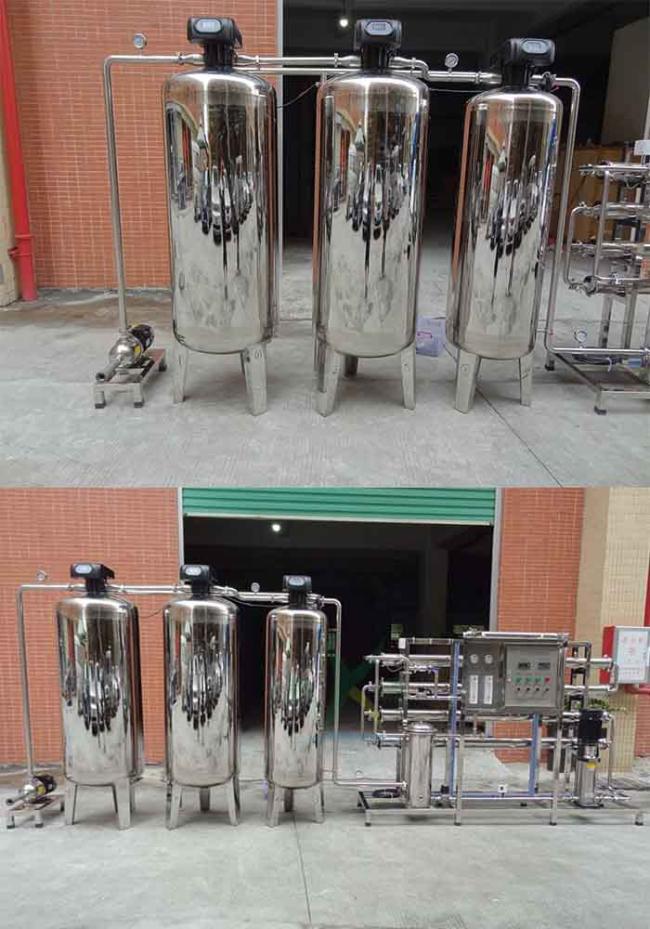

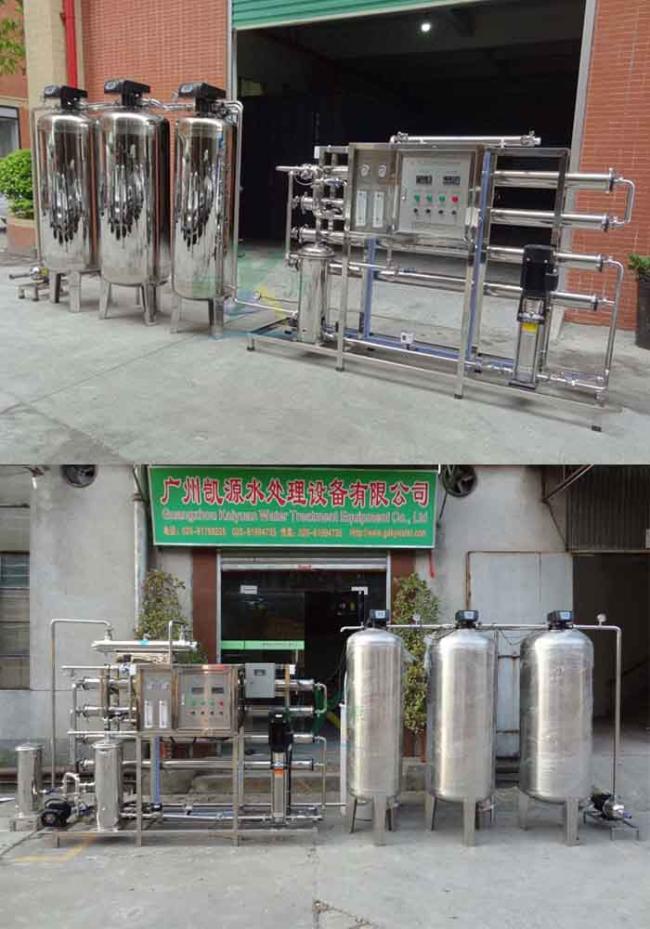

RO water filter is to produce high quality drinking water for drinking or beverage factory, which include sand filter, carbon filter, softener, micron filter and RO system.
1. Raw water pump-- provide the pressure to sand/carbon filter
2. Sand filter-- get rid of turbidity, suspended matter, organic matter, colloid and so on
3. Carbon filter--Remove the color, free chloride, organic matter, harmful matter and so on
4.Softener ---Hard water is softened by removing the calcium magnesium it contains.
5. Micron filter--prevent any deposition of large Particles, some bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
6. High pressure pump-- Provide the high pressure to RO membrane, at least 2.0 MPA
7. RO system--RO system is the heart part of pure water plant. The RO systems are capable of removing over 99% of ions, bacteria, particles and 98% of organics and silica, 85 % of B. simply operation and life span.
If interests & any questions just feel free to buzz me anytime^-^
