500LPH Ro System Well Water Filtration Plant 500LPH Fiber Glass / 304 Industrial Water Filter
500LPH Ro System Well Water Filtration Plant 500LPH Fiber Glass / 304 Industrial Water Filter
RO (Reverse Osmosis) Water Purification Treatment : The capacity ranges: from 1500GPD (0.25t/h) to 3,000,000 GPD (500t/h). Reverse osmosis (RO) technology known as hyper filtration, is widely used in Cosmetic, Pharmaceutical, chemical industries, food, drinking water. RO equipment is the most advance and energy saving in water treatment industry. Our company can supply all kinds of OR water purification appliance
| 500lph reverse osmosis water system purifier ro plant designed with pre-treatment multimedia filters, it including sand filter, carbon filter,antisludging agent and security filter, which can remove big suspending particles, reverse osmosis unit can filtrate over 99% dissolved solid,It is the most precison filter process. |
| 1---Quartz sand filter |
|
Function:Mainly remove the mud, suspended solids and large particles in the tap water Flow rate: 5m3/h Design pressure: 0.3Mpa Thickness: 2mm on body and 3mm on top Filter material: Fine quartz sand Filter material Size: 1-2.5mm and 2.5-4.5mm |
| 2---Active carbon filter |
|
Function:mainly remove organic substances, residual chlorine and odor in tap water Flow rate: 5m3/h Design pressure: 0.3Mpa Thickness: 2mm on body and 3mm on top Material: FRP Filter material: Fine active carbon Filter material Size: 20-40mesh |
| 3---Resin softening |
|
Function:mainly remove the calcium and magnesium in tap water, reduce the hardness of water Flow rate: 5m3/h Design pressure: 0.3Mpa Thickness: 2mm on body and 3mm on top Material: FRP Filter material: Resin 0.315-1.25mm |
| 4--Security filter: |
|
Function: Further filtration, to avoid quartz entry into RO to break the membrane Shell Material: SUS304 Cartridge material: Spray-fusing polypropylene 5um 20’ Cartridge Qty: 5pcs |
| 5---RO membrane: |
|
Function: the core part of pure water equipment, the production of high-purity water. Parameters: Model: ULP31-4040 Flow rate: ≥7.2m3/h(25°C) Desalination rate %:99.4% Max Inlet Water Temperature: 45 °C Max Working Pressure:600pai(4.14Mpa) Effective membrane area ft2(m2) :85(7.9) Operation: automatic control, automatic flush Membrane material: aromatic polyamide composite membrane Membrane housing material: SUS 304 |
| 6--- High-pressure pump: |
|
Function: provide enough pressure for reverse osmosis system Model:CVF2-13T 1.5kw Material: SUS304 Flow: 3.2m3/h Lift: 60m |
| 7---Anti-sludging agent dosing device |
| Function: According to a certain proportion of adding reverse osmosis antiscalant dosing, prevent reverse osmosis caused by dirt plugging in the long-running surface node membrane element, It can effectively disperse fouling. And prevent the deposition of iron and aluminum oxide |
|

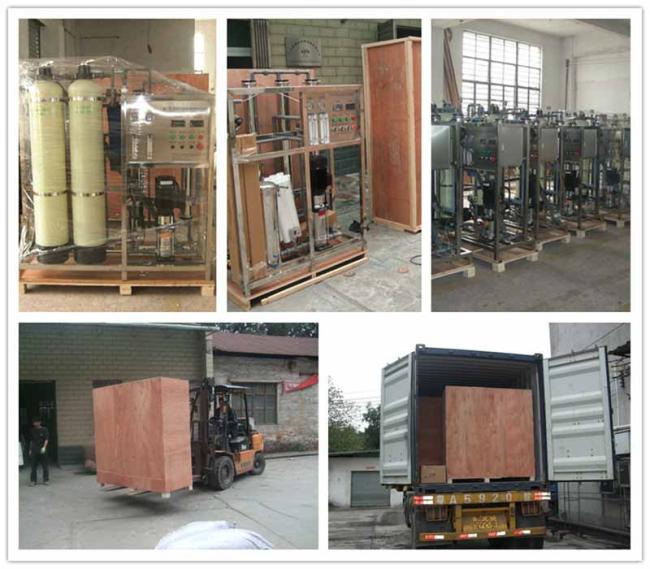

The normal package of industrial water purifier is wooden box ,we will use pe film for packing or pack it according to customers special request. |
