Reverse Osmosis systems(Ro systems) are our hot products.The capacity ranges from

1500GPD (0.25m3/h) to 3,000,000 GPD (500m3/h).

RO System Operating Parameters

1. Operating Pressure: < 300 psig

2. Maximum Recovery: 60% - 75%

3. Nominal Rejection: 95-99%

4. Operating Temperature: 2-35 ºC

5. Minimum Inlet Pressure: 30 psig

6. Design Temperature: 25 ºC

3. Application

Electronic industry water: integrated circuit, silicon wafer, display tube and other electronic components.
Pharmaceutical industry water: large infusion, injection, tablets, biochemical products, equipment cleaning etc.
Chemical industry process water: chemical circulating water, chemical products manufacturing, etc.
Food industry water: purified drinking water, beverage, beer, alcohol, health products, etc.
Seawater and saline water desalination: islands, ships, marine drilling platforms, saline water areas.
Purified drinking water: house properties, communities, enterprises, etc.


4. Advantages


5. Process

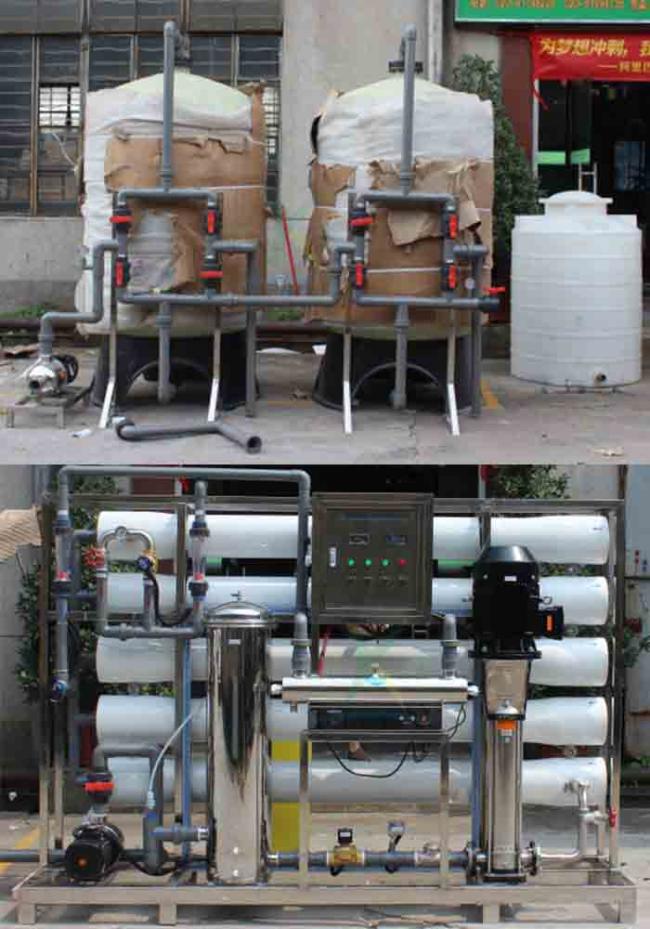

Raw water----booster pump---quartz sand filter---activated carbon filter---water softener (optional)---security filter----high pressure pump---RO system---UV system (Ozone generator)---pure water tank

1. Raw water pump: provide the pressure to silica sandfilter/active carbon filter
2. Quartz Sand filter: get rid of turbidity, suspended matter, organic matter, colloid and so on
3. Activated Carbon filter: Remove the color, free chloride, organic matter, harmful matter and so on
4, Softener: Get rid of calcium and magnesium ions in original / source water, reduce water hardness.
5. Security filter--prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
6. High pressure pump-- Provide the high pressure to RO membrane(at least 2.0 Mpa).
7. RO system--RO system is the main part of pure water treatment plant. The desaltation rate of RO membrane's can be as high as 99%, it is capable of removing over 99% of ions, bacterias, particles and 98% of organic.
