1TPH RO Water Treatment System / Ultra Water Purification Equipment 1 Year Warranty
1TPH Reverse Osmosis RO Water Treatment Ultra Water Purification System for Africa and India
2. System Advantages
| ⇔Auto stop when no water and full water. |
| ⇔Auto start when pure water tank have no water. |
| ⇔High efficient and low noise high pressure pump. |
| ⇔Inlet water solenoid valve to stop water when machine is stop. |
| ⇔Auto controller, RO membrane auto flush to protect membrane. |
| ⇔Main part (membrane) of reverse osmosis system is imported from USA. |
| ⇔Product water conductivity meter to monitor product water quality all the time. |
| ⇔Low pressure protection switch to protect high pressure pump when there is no raw water. |
| ⇔Input water and output water pressure gauge to monitor RO membrane *differential pressure to remind it's time for chemical cleaning. |
3. Product Processing
Some parts function:
1. Raw water pump: provide pressure to quartz sand filter/ activated carbon filter
2. Quartz sand filter: get rid of turbidity, suspended mater, organic matter, colloid ect.
3. Activated carbon filter: remove color, free chloride, organic matter, harmful matter and so on.
4. Micron filter: prevent any deposition of large Particles, most of the bacteria, and viruses going into RO membrane, the accuracy is 5 um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
5. High pressure pump: provide high pressure to RO membrane(at least 2.0Mpa)
6. Manually wash RO membrane;
7. Manually wash RO memebrane with chemicals on machine;
8. Machine automatically stops when high water level of purified water, and runs when low level;
9. Multi-stage pumps protect the machine when lack of water;
10. Protection in such cases as no power, lower pressure, higher pressure, shot circuit, creepage, etc.

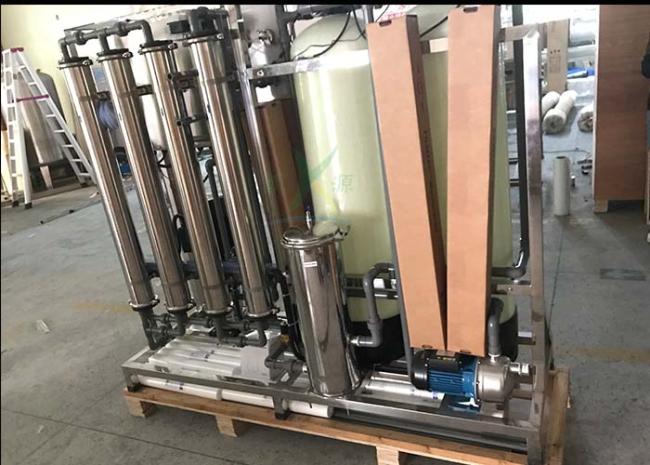

4. Pictures Show
Welcome to send us inquiry if you're interested in our products! Thank you!^-^
