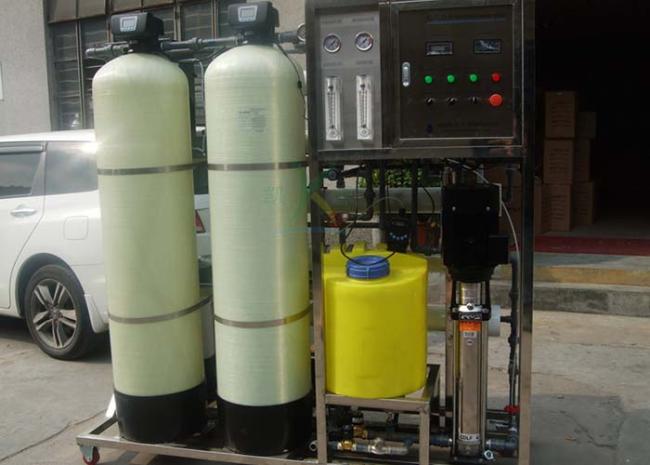

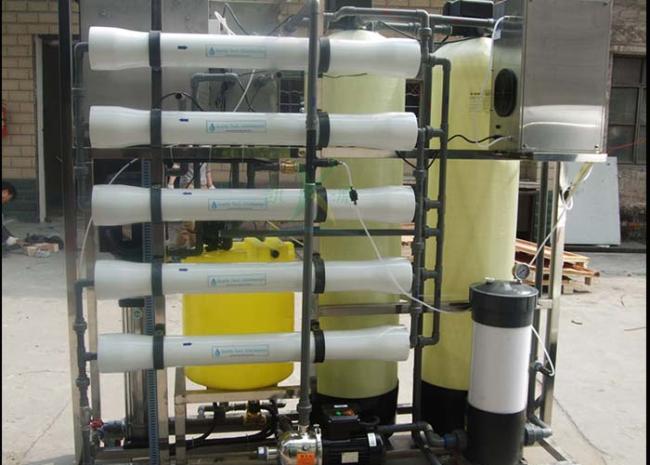

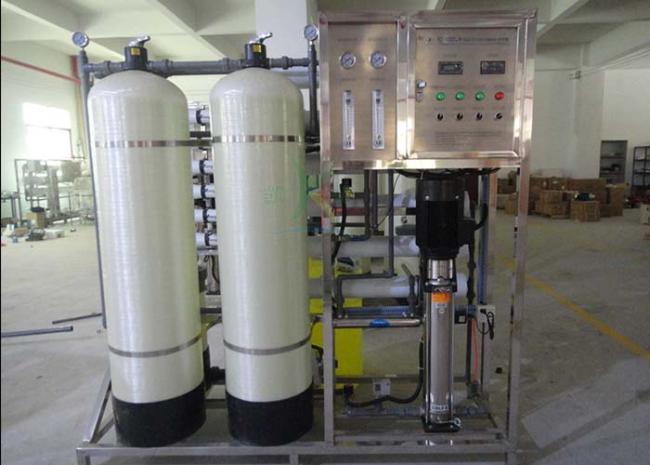

1000LPH Salt Brackish Water Reverse Osmosis Water Treatment Machine 1000 Liters Per Hour
Salt Brackish Water Treatment Machine, 1000LPH Brackish water Reverse Osmosis water
Product Description
What is reverse osmosis water system?
Reverse osmosis system is raw water through precision filter, granular activated carbon filters, activated carbon filters, compression, and then through the pump pressure , the use of reverse osmosis membrane pore size 1/10000μm make a higher concentration of water into low concentration of water, while the industrial pollutants, heavy metals, bacteria, viruses and other impurities in the water mixed with a large number of full isolation , to achieve the required physical and chemical indicators for drinking and hygiene standards, outputs to clean pure water is the best choice of body replenish water quality. It is key equipment of pure water plant.
How does reverse osmosis system work?
The principle of reverse osmosis is the water and the solution separated by the permeable membrane, the water is to the solution phase infiltration, and finally to balance, between the two phases osmotic pressure. If the solution phase is greater than the osmotic pressure, the water in the solution phase will penetrate in the opposite direction to the water. Raw water in sufficient pressure, through the osmotic membrane and become pure water, there is no water through the membrane dissolved, suspended solids discharged through the sewage outlet.
Product Process
Raw water ->Raw water tank -> Raw water pump -> Quartz sand filter ->Antiscale dosing system-> Active carbon filter-> High pressure pump ->Security filter -> RO equipment->Pure water tank
Some parts function:
| 1. Raw water pump: provide needed pressure for every pre-treatment filter; |
| 2. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^ |
| 3. Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances; |
| 4. Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm; |
| 5. High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water; |
| 6. RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts. |
| 7. Ozone generator(for bottled drinking): can continue to kill bacteria even water fill into bottled,viruses,cell damage,atc... |
Application
Feed water(source water):
City water, river water, lake water, underground water(borehole, well), brackish water, sea water......
Treated water:
1. Electronic industry: Pre-filter for ultra pure water, chemical products and pure water
2. Food and beverage industry: filter for mineral water, wines and fruit juice
3. Medicine industry: filter for drug liquid, gases
4. Chemical industry: filter for organic solvent
5. Petroleum industry: filter for oil-field flooding
