50TPH Water Treatment System / Industrial Water Purification Equipment With Filter Cartridge
50TPH Water Treatment System Industrial Water Purification Equipment With Filter Cartridge
RO (Reverse Osmosis) Water Purification Treatment : The capacity ranges: from 1500GPD (0.25t/h) to 3,000,000 GPD (500t/h). Reverse osmosis (RO) technology known as hyper filtration, is widely used in Cosmetic, Pharmaceutical, chemical industries, food, drinking water. RO equipment is the most advance and energy saving in water treatment industry.
RO plant Flow chat
Raw water→ 1. Booster pump→ 2. Sand(multi-medium) filter→3. Active carbon filter→4. Softener (optional)→ 5. Security(micron) filter→6. High pressure pump→7. Reverse osmosis system→ 8. UV sterilizer (ozone generator) →Pure water storage tank
Function of each part of water treatment plant
1.Booster pump– provide the pressure to quartz sand filter/active carbon filter
2.Multi-medium filter– get rid of turbidity, suspended matter, organic matter, colloid, ect.
3.Active Carbon filter–Remove the color, free chloride, organic matter, harmful matter, ect.
4.Softener–exchange "ions" of calcium and magnesium with the most common and easiest method.
5.Security filter–prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um
6.High pressure pump– Provide the high pressure to RO membrane
7.RO system– main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions
8.UV sterilizer or ozone generator- kill bacteria
Ro water plant parameter
| 1. Operating Pressure: < 300 psig |
| 2. Maximum Recovery: 60% - 75% |
| 3. Nominal Rejection: 95-99% |
| 4. Operating Temperature: 2-35 ºC |
| 5. Minimum Inlet Pressure: 30 psig |
| 6. Design Temperature: 25 ºC |
MAIN COMPONENTS
DOW membrane BW30-4040,BW30-400
FRP pressure vessel
SS centrifugal high pressure pump
CIP system(including cleaning tank)
PLC automatic control
SS/Carbon steel coated frame
OPTIONAL COMPONENTS
Multi-media filter
Activated carbon filter
APPLICATION
* Daily drinking water for buildings, hotel rooms, factories, schools, etc.
* For mobile working organizations such as ocean voyages, drilling units, field exploration, tec.
* Desalination of water used in production techniques
Detailed specification
| 1. Automatic backwash and manual backwash. |
| 2. Automatic switch on when low water level, and switch off when high water level |
| 3. Water shortage protection for multi-stage pump |
| 4. Protection when no voltage, under-voltage, over-current, short circuit and creepage |
| 5. Full stainless steel structure, durable and easy to clean. |
| 6. Integrating water flow indicator, TDS indicator, pressure indicator, control panel |
| 7. China Top Brand or world famous brand electrical, switch and valve systems |
| 8. Built-in soft-start system to avoid damage to the expensive membrane when starting |
| 9. Built-in RO membrane chemical washing device |

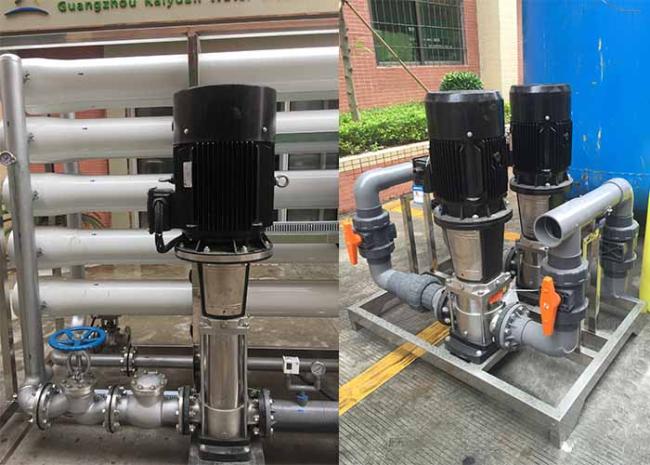

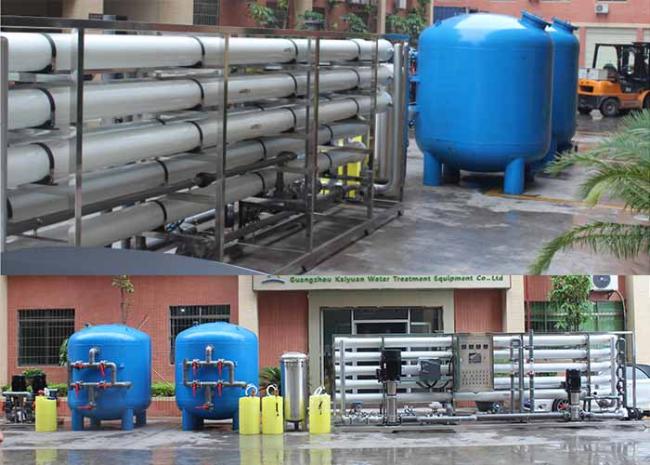

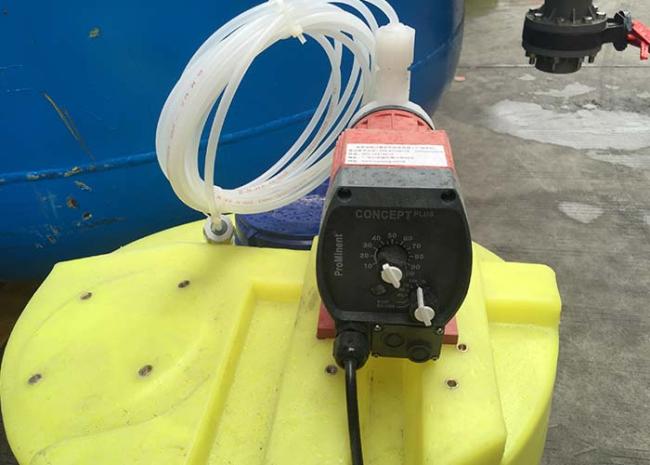

RO system Detail picture
