Automatic RO Water Treatment Plant 50000L/H With Water Filters Cartridge Stainless Steel 316
Automatic RO Water Treatment Plant 50000L/H With Water Filters Cartridge Stainless Steel 316
We don't produce water, we only treat water
Water treatment equipment can choose different treatment processes and equipment according to the user's raw water quality, capacity and the difference industry area. The process is different and the cost is quite difference. We can provide you economy and suitable peocess according to your water quality and capacity you need. Maximize your cost savings^^
RO (Reverse Osmosis) Water Purification Treatment : The capacity ranges: from 1500GPD (0.25t/h) to 3,000,000 GPD (500t/h). Reverse osmosis (RO) technology known as hyper filtration, is widely used in Cosmetic, Pharmaceutical, chemical industries, food, drinking water. RO equipment is the most advance and energy saving in water treatment industry.
Features
| 1. High salt rejection: 98% and recovery rate . |
| 2. No need to flush frequently and importantly, no pollution. |
| 3. The product water can be drunk directly, no mineralization is required. |
| 4. Rust and corrosion resistant with stainless steel or carbon steel coated frame |
| 5. Flushing the membrane surface by low pressure fresh water when system stops to reduce pollution to membrane thus prolong membrane’s lifetime. |
| 6. Stable performance, safe and reliable, up to date design |
| 7. Small in size,easy installation and operation, easy maintenance |
Application
| * Daily drinking water for buildings, hotel rooms, factories, schools, etc. |
| * For mobile working organizations such as ocean voyages, drilling units, field exploration, tec. |
| * Desalination of water used in production techniques |
Process
Process: Raw water pump - Sand filter - Carbon filter - water softener - Cartridge filter - High pressure pump-RO membrane host
Application: mineral water, direct drinking water, beverage&food,win.,ect
Water outlet: Conductivity <10us.cm25℃(support customize)
Production Capacity: 0.5m³ per hour
Function

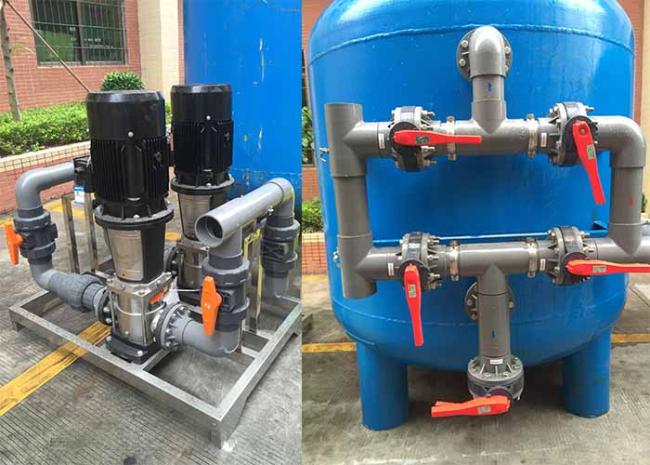

1.Booster pump– provide the pressure to quartz sand filter/active carbon filter
2.Multi-medium filter– get rid of turbidity, suspended matter, organic matter, colloid, ect.
3.Active Carbon filter–Remove the color, free chloride, organic matter, harmful matter, ect.
4.Softener–exchange "ions" of calcium and magnesium with the most common and easiest method.
5.Security filter–prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um
6.High pressure pump– Provide the high pressure to RO membrane

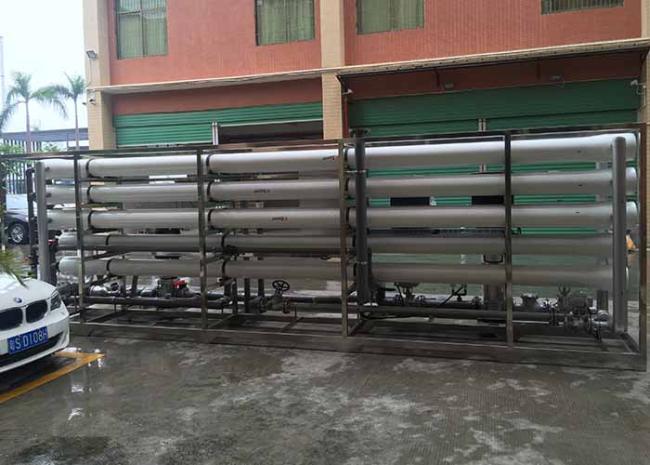

7.RO system– main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions
8.UV sterilizer or ozone generator- kill bacteria
