Water Treatment Accessories TDS /PH /Conductivity Meter Water Quality Test Instrument
| Our main product is RO system water purifier machine what we can do is to help changing such as seawater, brackish water,underground water and tap water atc... into domestic water, irrigation, direct drinking or bottle drinking (pure/mineral/alkaline water), industrial water: boiler water, hospital usages, beverage usages atc... |

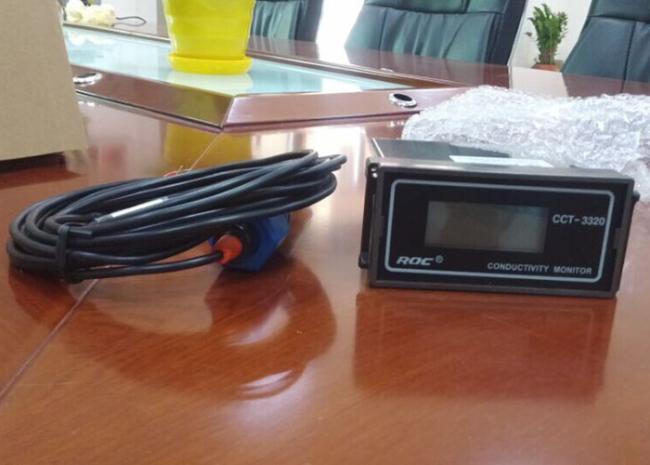

Industrial conductivity (TDS) instrument is intelligent upgrade product of ES-2200 industrial conductivity instrument.
The electrical conductivity (TDS) value of various industrial water can be continuously measured and controlled.
The device is widely used in scientific experiment equipment, chemical, pharmaceutical, environmental protection, metallurgy, papermaking, food, beverage and water supply industries.
Parameter:
| Measuring | 0.01 electrode:0.02 to 20.00us/cm |
| Range | 0.2 to 20000.0us/cm |
| Accuracy | ±1%FS |
| Stability | ±1%FS/24H |
| Temperature | Compensation range:-10~130℃.NTC10K |
| Compensation | PT1000 or PT100,accuracy:±0.5℃ |
| Display | 2.4inch LCD display |
| Relay out | 2 ralay out,capacity:250VAC,3A |
| Signal output |
4-20mA output,RS485 communictaion, compatible with standad MODBUS-RTU |
| Power supply | AC220±10%,50HZ |
| Dimensions | 96*96*93mm(H*W*D) |
Characteristics:
● Factory standard configuration is Chinese interface, can be switched to English in the language menu.
● Conductivity (TDS) and temperature measurement, upper limit control, current output and digital communication.
● It can be free to adjust the conductivity temperature compensation coefficient and TDS conversion coefficient.
● Two relays, conductivity (TDS) and temperature can be controlled respectively, and the hysteresis can be adjusted freely.
● In a set of instrument mode isolation transmission port can be configured with electrical conductivity (TDS) or temperature, the maximum loop resistance of 300 Ω.
● Voice alarm switch function, through the interface options setting on or off.
● LCD backlight can choose energy-saving mode, auto off timer.
● High performance CPU, excellent electromagnetic compatibility.
● One click restore factory parameter function.
● Password management functions, prevent misuse of non professional personnel.
Application:

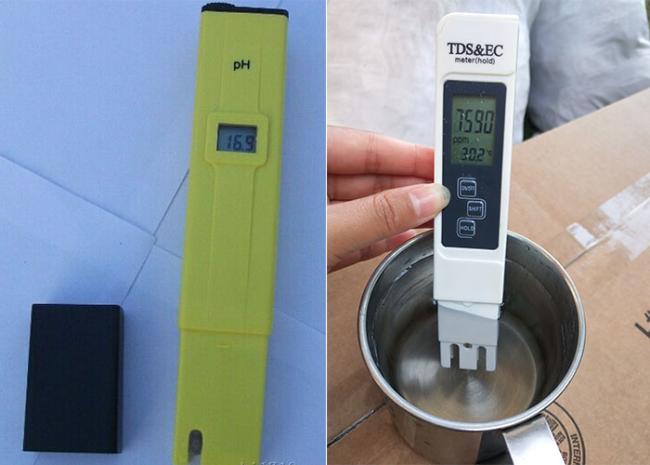

Water quality testing tool PH measurement. Perfect for wide applications, such as beverage, fish hatcheries, food processing, aquarium, photography, laboratory, quality control, school & colleges, swimming pools, water conditions.
| Measuring range | 0.00~14.00pH |
| Resolution | 0.01pH |
| Power supply | 4 x 1.5V (AG13) button cell batteries |
| Size | 188 x 35 x 35mm |
| Accuracy | ±0.1pH |
Features:
- Measure 3 parameters (pH/EC/Temp) in one meter
- Comes with protective cap and a hard case
- Switchable °C/°F temperature measurement
- Automatic temperature compensation
- Pen type easy to carry
- Easy calibration of pH and EC with just a mini-screwdriver
- With backlight function
