SS304 Capacity 3000LPH Industry RO Water Filtration System , Underground Treatment Plant
SS304 Capacity 3000LPH Industry RO Water Filtration System Underground Treatment Plant
1.Product Description
RO water purifier is the most advanced and energy-saving effectively membrane separation technology. Its principle is under the action of osmotic pressure than the solution, according to other material not through a semipermeable membrane and will these substances and moisture leave. Due to the reverse osmosis membrane aperture is very small ( only for 10 or so), therefore can effectively remove dissolved in water, salt, colloid, microbial organisms ( removal reaches as high as 97%--98percent ).
2.Product Details
3000lph RO Systems
1. Capacity: 3000L/H
2. Rated power: 4.0KW/H
3. Voltage: 110V/220V/380V, 50Hz/60Hz, single phase/3phase
4. Desalting rate:>=97%
5. Water recovery rate: 50-75%
6. Conductivity of raw water: ≤400μs
7. Conductivity of EDI pure water: <=10μs
3. Parameters
| 1. Rwa water pump |
Brand: CNP CHL4-40 |
| 2. Quartz sand filter |
Size: Φ750 × 1900mm |
| 3. Activity carbon filter |
Size: Φ750 × 1900mm |
| 4. Security filter |
Type: 30 "× 7 core |
| 5. High pressure pump |
Brand: CNP CDL44-14 |
| 6. SS housing RO membrane |
Capacity: 3.0m3 / h, maximum working pressure: 1.5MPa, |
| 7. UV sterilizer |
Flow: 3000LPH |
| 8. Electric control panel | PC program controller AC contactor, thermal relay |
4. Application
|
Electronics Industry |
Silicon,micro-electronics products with high water. Semiconductors,tubes and other manufacturing industries with high water. The using of production water batteries in lithium batteries, solar power batteries, dry cell batteries. |
|
Food and Beverage field |
Pure water, distilled water, mineralized water, natural water,mineral water. The using of production water in liquor blending and beer production. |
|
Phamaceutical industry |
Pharmaceutical, injection with pure water, high pure water and sterile water,etc. Purification and separation of drug raw materials. Medical hemodialysis, biochemical analysis and water for injection. |
|
Cosmetics |
The using of pure water in the production of skincare, shampoo,toothpaste and other cleaning fluid. |
|
Chemistry and |
The using of pure water in the production of chemical reagent, chemical fertilizers and paper making. |
|
Surface Treatment: |
The using of highly pure water in electroplating and glass coated. Ultrasonic cleaning with pure water. The surface coating and cleaning automotive,appliance, building material products with pure water. |
6. Some parts function:
Quartz sand filter: fill quarts sand inside, it can filter big particles impurities, suspended substances, colloids etc.
Activated carbon filter: fill activated carbon inside, to remove color, odor, residual chlorine and organics substances.
Security filter: fill PP filter cartridge inside, prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um.
RO membrane: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
UV sterilizer: for killing bacterial in water, be safe for drinking.

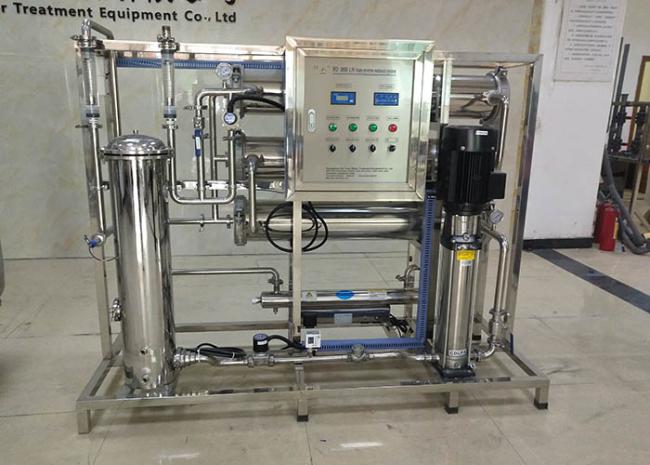

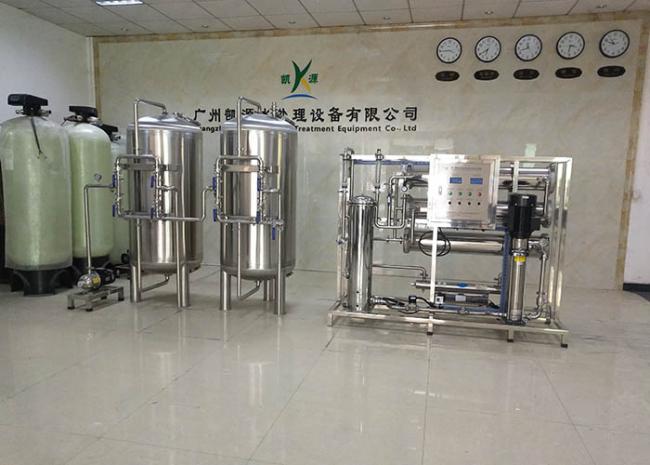

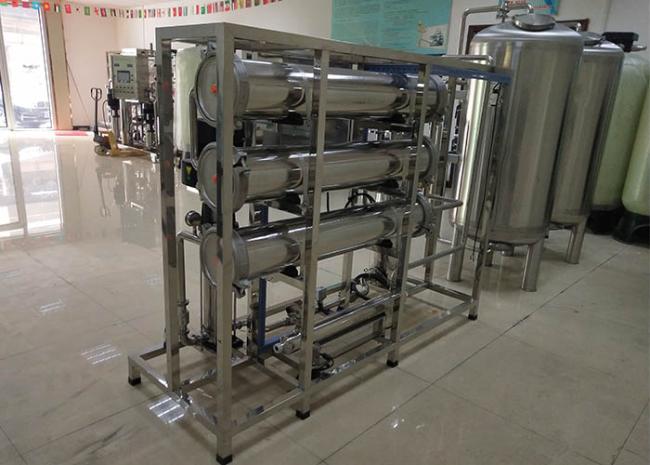

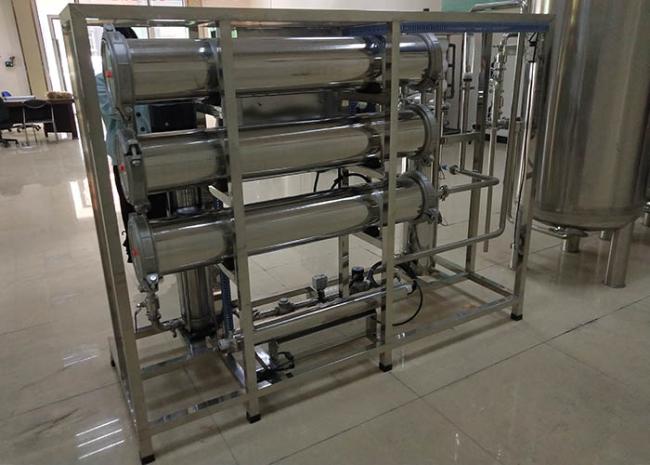

7. Photo
