Fully Stainless Steel 3000LPH RO System Water Purifier Underground Treatment Plant
Fully Stainless Steel 3000LPH RO System Water Purifier Underground Treatment Plant
1.Product Description
RO (Reverse Osmosis, RO), the basic working principle is: using of a special high pressure pump, increasing 6-20 kg pressure to raw water, then force raw water penetrating through 0.0001 micro reverse osmosis membrane under the pressure. Only water molecules and solvent less than 0.0001 microns can pass through the RO membrane. Chemical ionization, and bacterial, fungal, virus will flow with wastewater.
RO water purifier is the removal of contaminants from untreated water to produce drinking water that is pure enough for its intended use, most commonly human consumption.Substances that are removed during the process of drinking water treatment include suspended solids, bacteria, algae, viruses, fungi, minerals such as iron, manganese and sulphur, and man-made chemical pollutants including fertilisers.
2. Advantages
1. Compact structure, small footprint, low investment costs, low energy consumption;
2. Reverse osmosis system is a physical process, no phase change, significant energy-saving;
3. Imple operation, easy to realize automatic control, labor-saving, Highly pollution-resistant separation device, easy clean
4. High recovery rate and desalination, can produce fresh water from rivers, lakes, well water, sea water or brackish water;
5. A Concentration method to recover valuable ingredients;
6. Removal of organic matter, bacteria, colloidal and impurities in the water, obtain high purity water;
7. Advanced membrane protection system, when operating on/off switch, system can automatically operate flush function, reduce pollution, extend the life of the membrane;

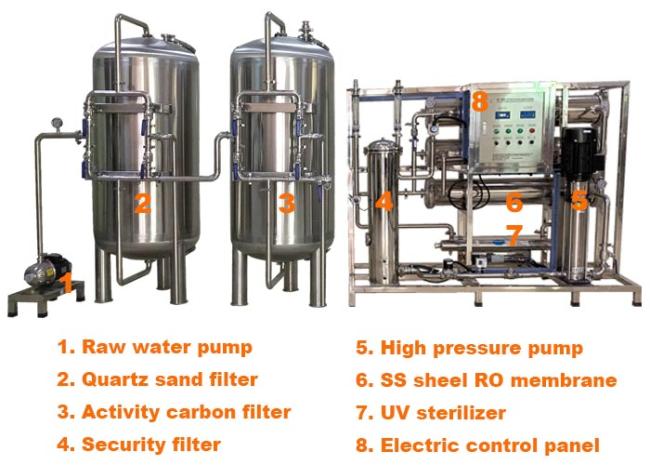

| 1. Rwa water pump |
Brand: CNP CHL4-40 |
| 2. Quartz sand filter |
Size: Φ750 × 1900mm |
| 3. Activity carbon filter |
Size: Φ750 × 1900mm |
| 4. Security filter |
Type: 30 "× 7 core |
| 5. High pressure pump |
Brand: CNP CDL44-14 |
| 6. SS housing RO membrane |
Capacity: 3.0m3 / h, maximum working pressure: 1.5MPa, |
| 7. UV sterilizer |
Flow: 3000LPH |
| 8. Electric control panel | PC program controller AC contactor, thermal relay |
3. Process
4.Some parts function:
Quartz sand filter: fill quarts sand inside, it can filter big particles impurities, suspended substances, colloids etc.
Activated carbon filter: fill activated carbon inside, to remove color, odor, residual chlorine and organics substances.
Security filter: fill PP filter cartridge inside, prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um.
RO membrane: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
UV sterilizer: for killing bacterial in water, be safe for drinking.

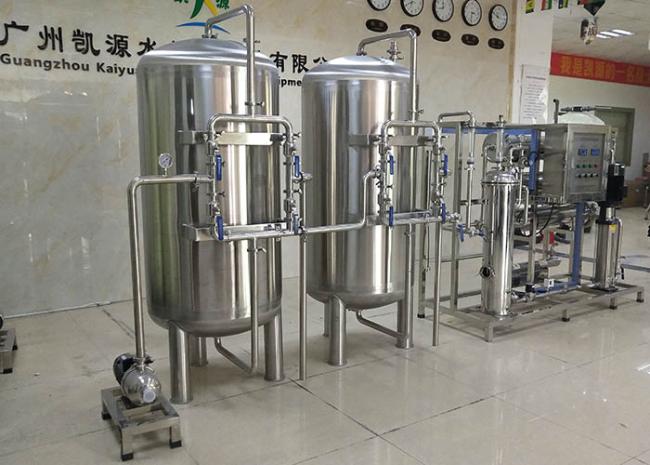

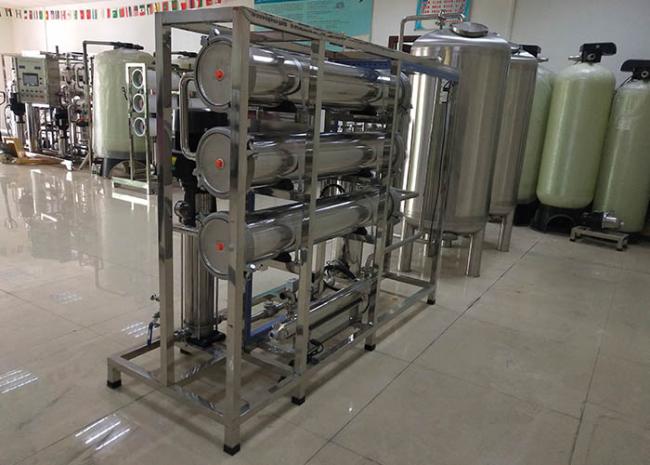

5. Photo
