FRP Membrane Housing 3000LPH Industry RO Water System , Underground Treatment Plant
FRP Membrane Housing 3000LPH Industry RO Water System Underground Treatment Plant
Reverse osmosis system is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt. The whole system desalination rate can reach 96%-99% to make permeated water conductivity<10 us/cm. Dense water also won’t polluted environment. Reverse osmosis equipment no need to consider about input water quality too much. And the main features of RO equipment is no need to do any regeneration, it can be keep stable for long time.
3000lph RO Systems parameter
1. Capacity: 3000L/H
2. Rated power: 4.0KW/H
3. Voltage: 110V/220V/380V, 50Hz/60Hz, single phase/3phase
4. Desalting rate:>=97%
5. Water recovery rate: 50-75%
6. Conductivity of raw water: ≤400μs
7. Conductivity of EDI pure water: <=10μs
|
1. Rwa water pump |
Brand: CNP CHL4-40 |
|
2. Quartz sand filter |
Size: Φ750 × 1900mm |
|
3. Activity carbon filter |
Size: Φ750 × 1900mm |
|
4. Security filter |
Type: 30 "× 7 core |
|
5. High pressure pump |
Brand: CNP CDL44-14 |
|
6. SS housing RO membrane |
Capacity: 3.0m3 / h, maximum working pressure: 1.5MPa, |
|
7. UV sterilizer |
Flow: 3000LPH |
|
8. Electric control panel |
PC program controller |
Application
Feed water(source water):
city water, river water, lake water, underground water(borehole, well), brackish water, sea water......
Treated water:
1. Electronic industry: Pre-filter for ultra pure water, chemical products and pure water
2. Food and beverage industry: filter for mineral water, wines and fruit juice
3. Medicine industry: filter for drug liquid, gases
4. Chemical industry: filter for organic solvent
5. Petroleum industry: filter for oil-field flooding

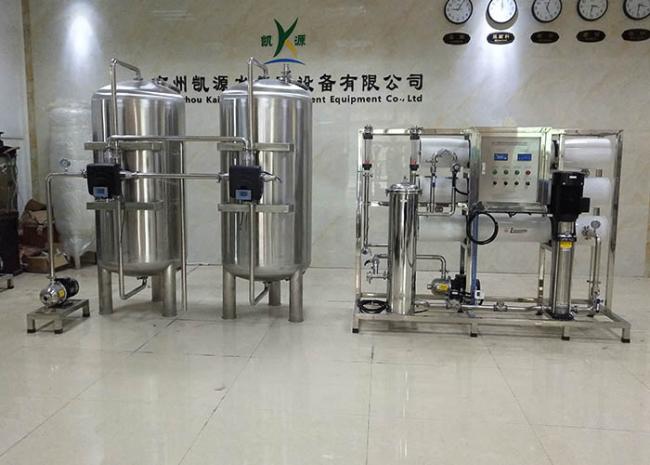

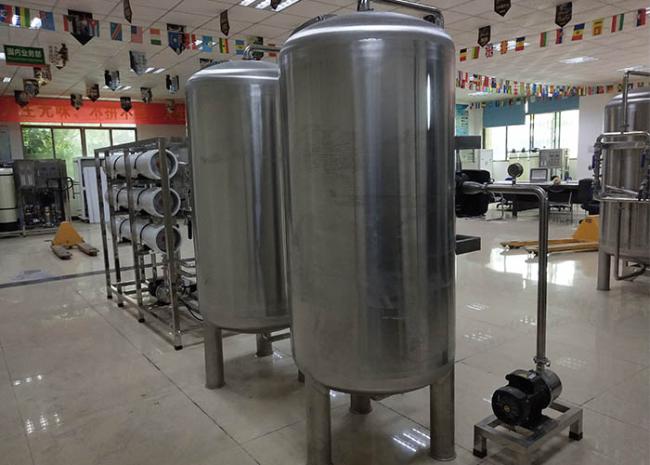

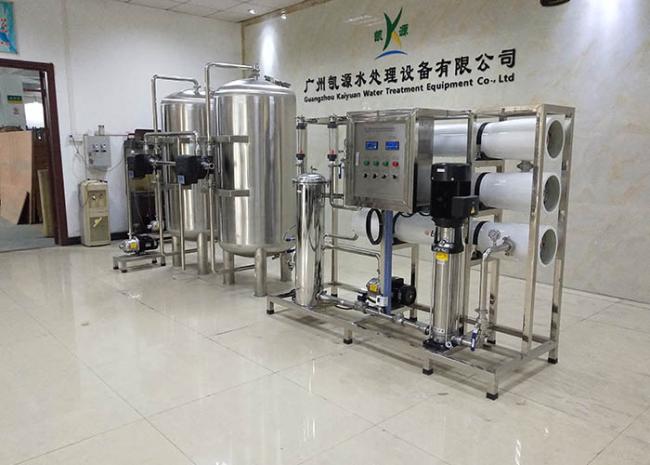

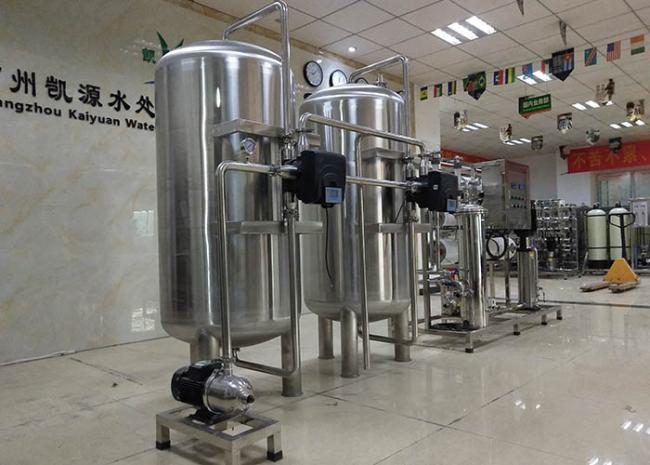

Photos
