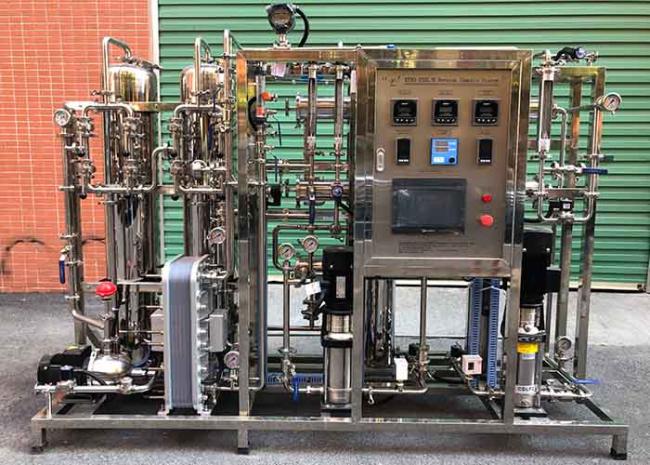

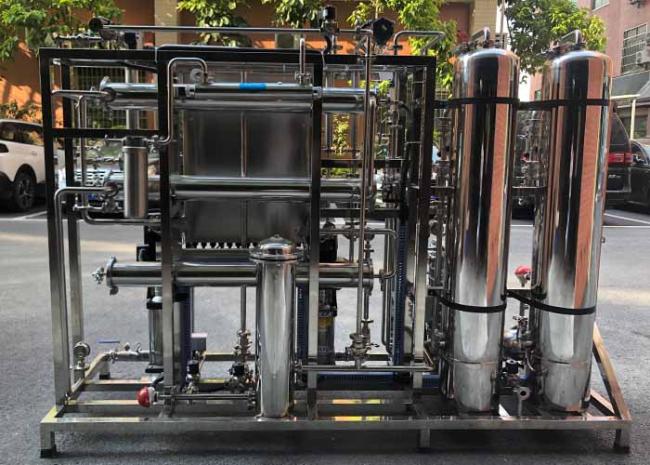

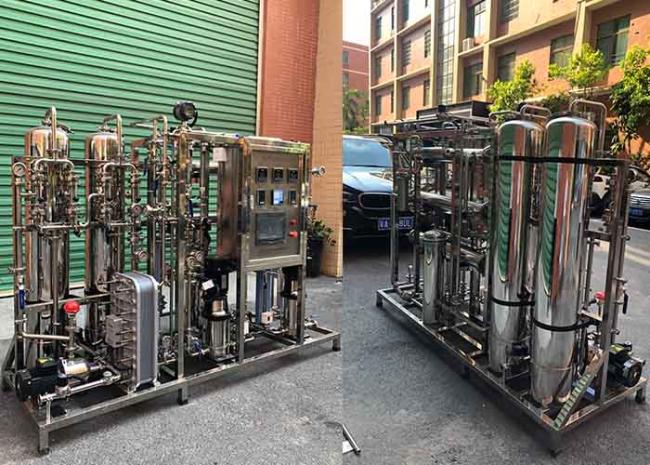

SUS-316 250LPH Heat Disinfection Machine Hospital Ultrapure Water System RO EDI System for Medical Manufacturer

RO EDI water treatment system is developed a membrane separation technology, which mainly use the semipermeable membrane permeation principle, to give it a certain way by applying a pressure on the natural infiltration direction against the force of the water in the concentrated solution dilute the solution to penetrate this way is called reverse osmosis. By the components of the device is reverse osmosis reverse osmosis unit.

EDI details

China brand and Europe/USA brand for optional.

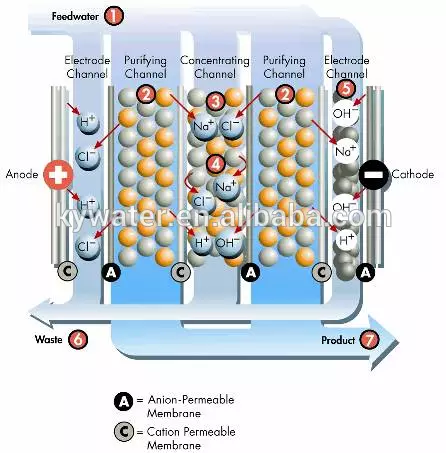

EDI, also called electric desalination is a new ultra pure water technology which gradually developed in the 20th century, which combines electric dialysis technology and ions exchange technology.

It is using the selectivity penerate function of anion and cation membrane and exchange function of ions exchange resin, under direct current electric field to make ion directed migration.

Finally to make deep desalination of water. In the same time, hydrogen ion and hydroxide ion which produced when water ionized will regeneration, and it can produce ultra pure water continuously.



Features

This system occupy little space, easy to operate, wide application range.

Reverse osmosis desalting rate ≥99%, machine desalting rate ≥97%. 98% of organic matters, colloids and bacteria can be removed.

Finished water under good electric conductivity, 1st stage ≤10μs/cm, 2nd stage around 2-3μs/cm, EDI≤0.2μS/cm(based on raw water≤300μs/cm).

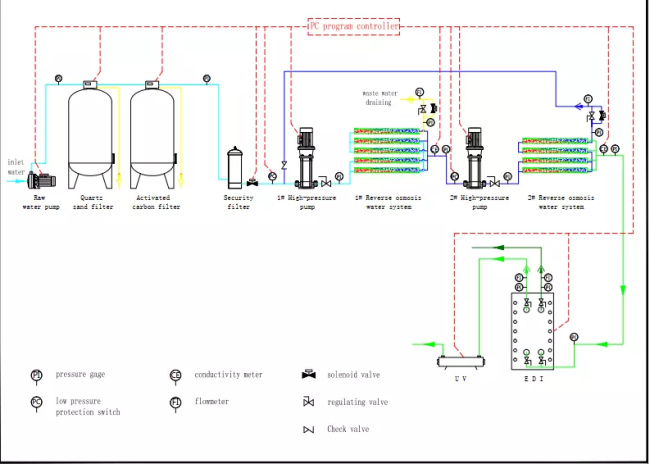

Processing: Raw water tank(user supply)→ raw water pump→quartz sand filter →activated carbon filter→security filter→1st stage high pressure pump→1st stage ro system→2nd stage high pressure pump→2nd stage ro system→pure water tank(user supply)+UV sterilizer+precision filter+ water supply point

Tag: ultrapure water equipment, pure and clear water filter system, ultra pure water filter
