Machinery Environmental Machinery Water Treatment Machinery

Industrial Domestic Water Treatment Plant Reverse Osmosis Membrane

Price Negotiable
Price: negotiation
MOQ: negotiation
Delivery Time: 1-7working days(depand on raw materials stocking)
Brand: Kaiyuan
Product Description

Precio De Fabrica De Guangzhou Planta De Filtrado De Agua Industrial Maquinas Para Purificar Agua Mquina De Filtracin





Ro Water Purifier MachineDescription


Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids,organic, pyrogen, sub micron colloidal matter and bacteria from water. Feed water is delivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Water permeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogen, and 99% bacterial in the feed water.

Brackish water, according to the organic content can be devided into surface water and ground water . surface water we can reverse osmosis system mating with relative sterilization system , ground water we can direct use reverse osmosis system , if Iron and Manganese overpass the inlet condition of RO ,we need add Manganese sand filter for pre treatment system , here also include the specific inlet condition of RO system for reference.




Ro Water Purifier Machine Details:





Ro Water Purifier Machine Processing



Process: raw water tank→ raw water pump→quartz sand filter →activated carbon filter→water softener/chemical dosing system(optional)→security filter→high pressure pump→ro system→pure water tank+UV sterilizer(ozone generator) +precision filter+ water supply point



Ro system technical parameters(for raw/well feed water TDS max 20000ppm)
Item Name
Brand
Material
Function
Raw Water Pump
CNP//Danfoss
SUS-304/316
Provide pressure for filters

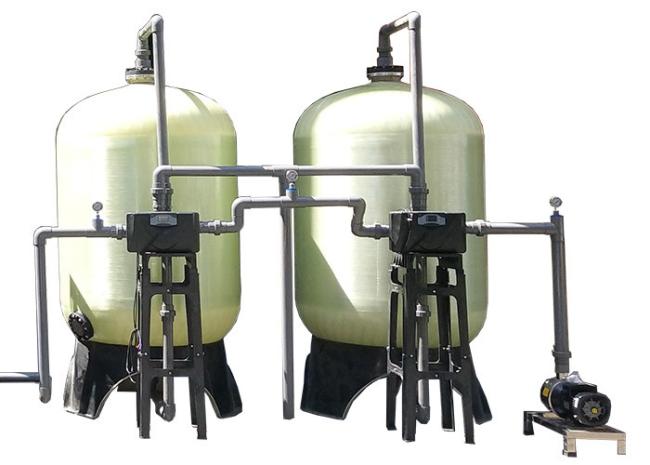

Quartz Sand Filter
KaiYuan
FRP/ Ss-304/316
Filtrate sediments...
Activated Carbon Filter
KaiYuan
FRP/ Ss-304/316
Obsorb odor, smell, color, irons, chlorine... to make clear water
Anti-scalant chemical dosing system/Water Softener
SEKO

Soften water, protect RO Membranes
Security filter
KaiYuan
FRP/ Ss-304/316
Remove colloids larger than 5micro
High pressure pump
CNP//Danfoss
SUS-304/316
Provide pressure for Ro membranes
RO vessels &membranes
Domestic&DOW/Toray/Votron/Hydrau.
FRP/Ss-304/316
Remove dissolved ions,organic materia,bateria...
Solenoid valves, gauges,switch...
China
Cooper/Ss-304/316
To protect the machine underoperation
CIP Washing system(optional)
KaiYuan
Ss-304/ FRP/316
Membranes maitenance
Electronic control
PLC Program control system
Water quality detector,AC contacter,Air switch,indicator light,knob switch,electrical miscellaneous pieces...
UV/Ozone(optional)
USA/Dahuang
Remove some baterial like coliform,pseudomonas aeruginosa...(Sterilization)
Ro Water Purifier Machine Application:

◊ Ultrapure water preparation in electronics and semiconductor industry

◊ Purified water used for pharmaceutical industry

◊ pure water for food and beverage industry RO Water System For Seawater Desalination

◊ sea water and brackish water desalination RO Water System For Seawater Desalination

◊ Wastewater treatment for metallurgical industry, light industry, electroplating industry and leather manufacturing industry.

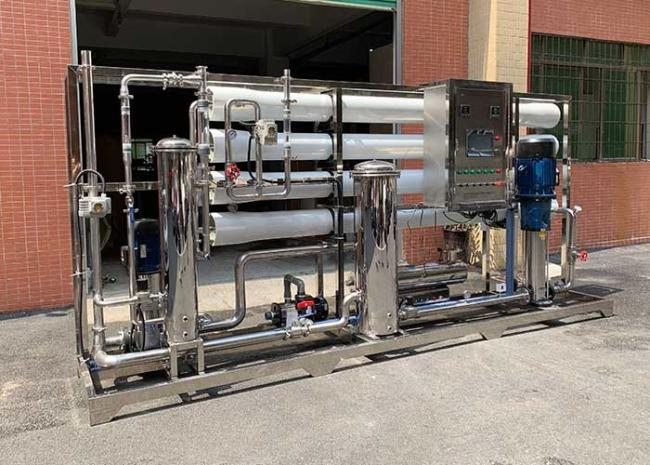

Ro Water Purifier Machine Details





Thank you so much for your value time. Any questions please send us inquiry or chat now!
We will reply you within 24hours. Whatsapp/ wechat/ tell: +86 13711203110

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
