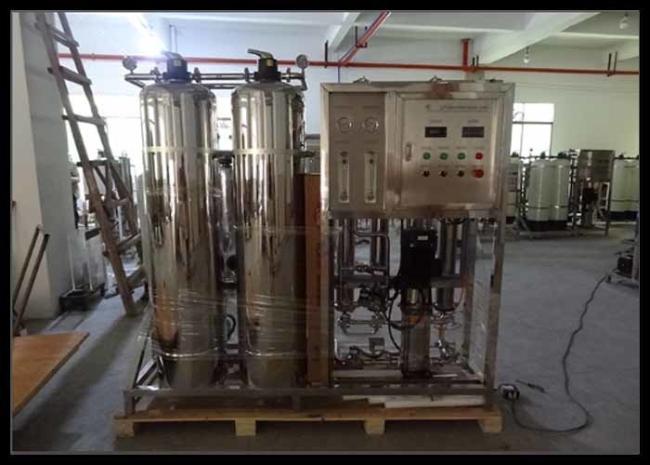

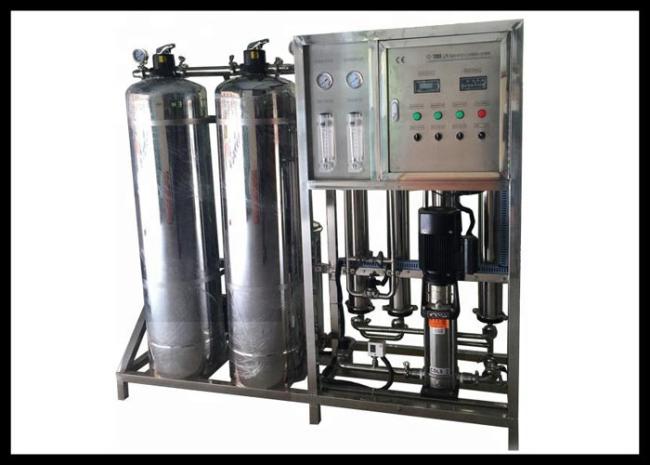

1000LPH Water Treatment Equipment RO System Water Purifier Filter For Underground / Borehole Fresh Water
1000LPH Water Treatment Equipment Reverse Osmosis System Water Purifier Filter For Underground / Borehole Fresh Water
Ro Pure Water Treatment Description
Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids,
organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water isdelivered under a pressure of
approximately 16 kg/cm2 through reverse osmosis membranes. Waterpermeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99%
bacterials in the feed water.
Ro Pure Water Treatment Details
|
Capacity |
1000lph |
Water recovery |
more than 50% |
|
Function |
Producing Fresh Water |
Type |
Pure Water Treatment System |
|
Application |
Filtration |
Material |
FRP+PVC/stainless teel |
|
Usage |
Pure Water Process |
Voltage |
110V / 220V / 380V |
|
Desalting rate |
more than 97% |
Membrane |
USA Filmtec DOW |
Ro Pure Water Treatment Processing
Process: raw water tank→ raw water pump→quartz sand filter →activated carbon filter→water softener/chemical dosing system(optional)→security filter→high pressure pump→ro system→pure water tank+UV sterilizer(ozone generator) +precision filter+ water supply point
|
First stage pretreatment.(Sand filter) |
|
The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health. |
|
Second stage pretreatment (Carbon filter) |
|
Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants. |
|
Third stage pretreatment (Resin softener) |
|
Cationic resin used for water softening, primarily to remove hardness of water. So as to effectively prevent the reverse osmosis membrane fouling. System can automatically recoil, and so is red. |
|
Fourth stage pretreatment (Micron filter) |
|
Particle size in water to remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree. |
|
RO system |
|
The core equipment of water pump is imported and the membrane film is imported from Hydranautics in America. It is equipped with full set of clean unit. It has the features of simple structure, convenient operation and high technological level. |
Ro Pure Water Treatment Specifications
1--Brand : CNP
Ro Pure Water Treatment Details
Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13711203110
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
