Water Desalination Machine RO Plant Reverse Osmosis Filter Water Machine Cleaning Filtration System

Drinking Water Treatment Plant Introduction

Reverse Osmosis Water System is raw water through precision filter, granular activated carbon filters, activated carbon filters, compression, and then through the pump pressure, the use of reverse osmosis membrane pore size 1/10000μm make a higher concentration of water into low concentration of water, while the industrial pollutants, heavy metals, bacteria, viruses and other impurities in the water mixed with a large number of full isolation, to achieve the required physical and chemical indicators for drinking and hygiene standards, outputs to clean pure water is the best choice of body replenish water quality. It is key equipment of pure water plant.

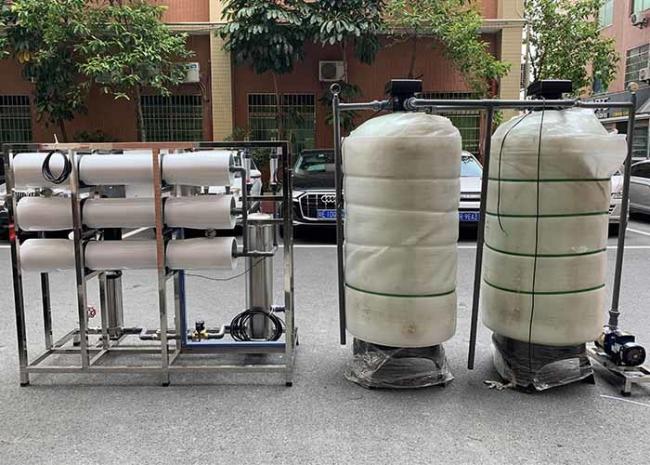

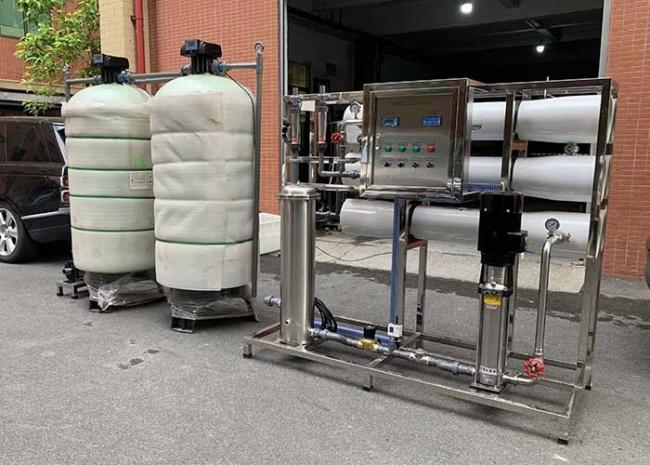

Drinking Water Treatment Plant Component

Raw water pump ► Quartz sand filter ► Activated carbon filter ► Security filter ► High-pressure pump ► RO system + Alkaline Filter + Coconut shell carbon filter

1. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^

2. Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;

3. Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;

4. RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.

5. Alkaline Filter: use stainless steel as housing, fill alkaline ball inside, can be done for PH 7-10 alkaline drinking water.

6. Coconut shell carbon filter: use stainless steel as housing, fill coconut shell carbon inside, remove color, odor, residual chlorine and organics substances;

7. PP Filter Cartridge: Intercept >1µm accuracy large particles, bacteria, viruses. (optional)

8. Folding filter Cartridge: Intercept >0.22µm accuracy large particles, bacteria, viruses. (optional)

Different Water TDS(Total Dissolved Solids) compare and usage
