Industrial Water Purification System Ultra Pure Water 15 18 Mohm Reverse Osmosis Plant EDI Module System
Price:
negotiation
MOQ:
>= 1sets
Delivery Time:
1-7working days(depand on raw materials stocking)
Brand:
Kaiyuan
Product Description
Industrial Water Purification System Ultra Pure Water 15 18 Mohm Machine Reverse Osmosis Plant EDI Module System
| 1. Product Description |
EDI (Electrodeionization)is a revolutionary water treatment technology ,it is a membrane separation desalination technology that skillfully combined the electrodialysis technology and ion exchange technology together ,which is high-tech , green and environmental protection technology. EDI plant has very high requests to raw water, usually we use double stage RO system production water as its raw water.
RO(Reverse Osmosis, RO), the basic working principle is : using of a special high pressure pump, increasing pressure to raw water, then force raw water penetrating through reverse osmosis membrane under the pressure. Only water molecules and solvent less than microns can pass through the RO membrane.
RO(Reverse Osmosis, RO), the basic working principle is : using of a special high pressure pump, increasing pressure to raw water, then force raw water penetrating through reverse osmosis membrane under the pressure. Only water molecules and solvent less than microns can pass through the RO membrane.
| 2. Product Parameter |
KYRO-1000LPH RO Water Treatment System:
|
3. System Advantages
|
√. Main part (membrane) of reverse osmosis system is imported from USA.
√. Auto stop when no water and full water.
√. Auto controller, RO membrane auto flush to protect membrane.
√. Auto start when pure water tank have no water.
√. Low pressure protection switch to protect high pressure pump when there is no raw water.
√. High efficient and low noise high pressure pump.
√. Product water conductivity meter to monitor product water quality all the time.
√. Input water and output water pressure gauge to monitor RO membrane *differential pressure to remind it's time for chemical cleaning.
√. Inlet water solenoid valve to stop water when machine is stop.
| 4. Optional Components |
| A. Regulating wheels | B. PC Touch Screen |
| C. Two-stage RO system | D. PH adjustment |
|
E. CIP cleaning system
|
F. Auto or manual control valve
|
| G. U-PVC or stainless steel pipe |
H. UV sterilizer/Ozone Generator
|
|
I. Dosing system(anti-scale)/Water Softener
|
J. PE or stainless steel raw/pure water tank
|
| 5. Product Processing |

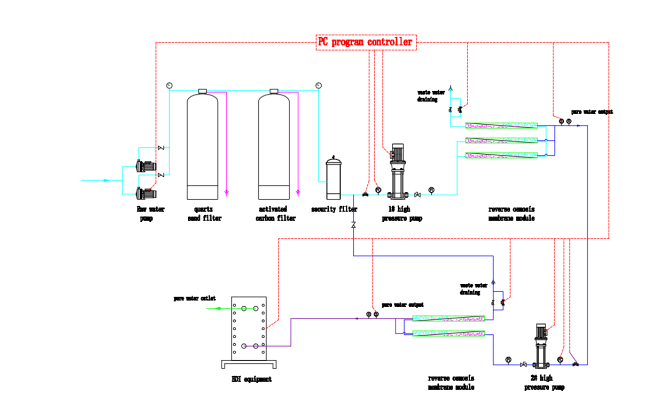

Process: raw water tank + raw water pump + quartz sand filter + activated carbon filter + water softener/chemical dosing system(optional) + security filter + (1&2)high pressure pump + (1&2)ro system + pure water tank + UV sterilizer(ozone generator) + precision filter + water supply point
Some parts function
| 1 | booster pump-- provide the pressure to quartz sand filter/active carbon filter |
| 2 | Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect. |
| 3 | Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect. |
| 4 | Softener--exchange "ions" of calcium and magnesium with the most common and easiest method. |
| 5 | Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um |
| 6 | High pressure pump-- Provide the high pressure to RO membrane |
| 7 | RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions |
| 8 | UV sterilizer or ozone generator--- kill bacteria |

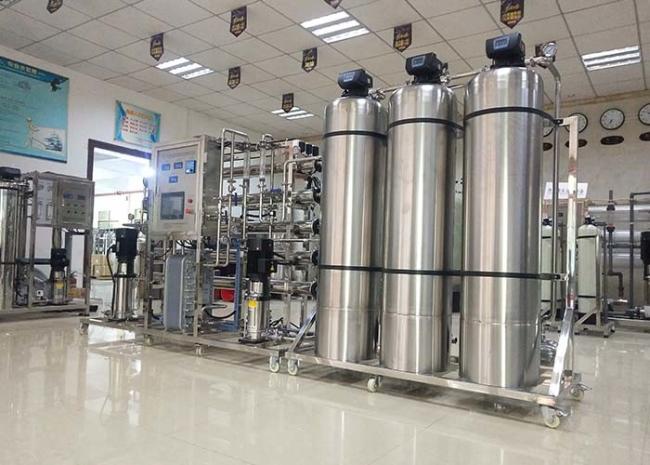

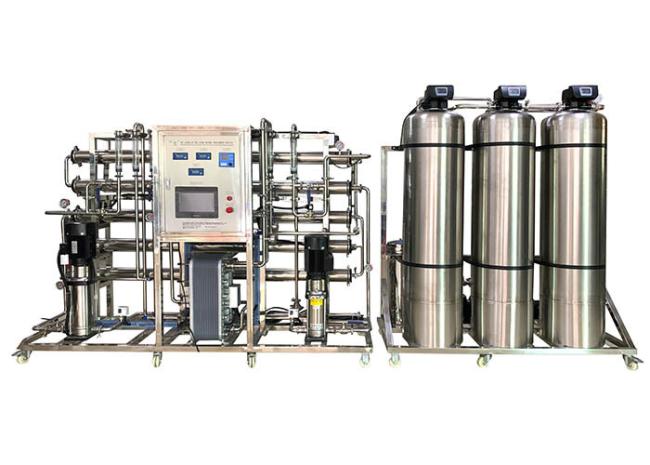

6. Pictures Show
Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13711203110
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
