| A. Regulating wheels | B. PLC Touch Screen | C. Two-stage RO system |
| D. PH adjustment anti-scale | E. Automatic cleaning system | F. Auto or manual control valve |
| G. U-PVC or stainless steel pipe | H. UV sterilizer/Ozone Generator | I. Dosing system/Water Softener |
| J. PE or SS raw/pure water tank | K. FRP or SS pre-treatment tank | customized OEM ODM product |
Water Treatment Accessories SS304 1000LPH Pretreatment Filter With Valve / Pump / Flow Meter
Price:
negotiation
MOQ:
>= 1sets
Delivery Time:
1-3working days(depand on raw materials stocking)
Brand:
Kaiyuan
Product Description

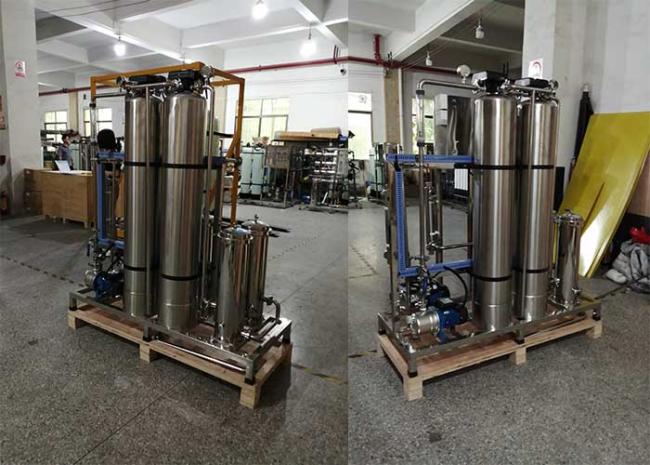

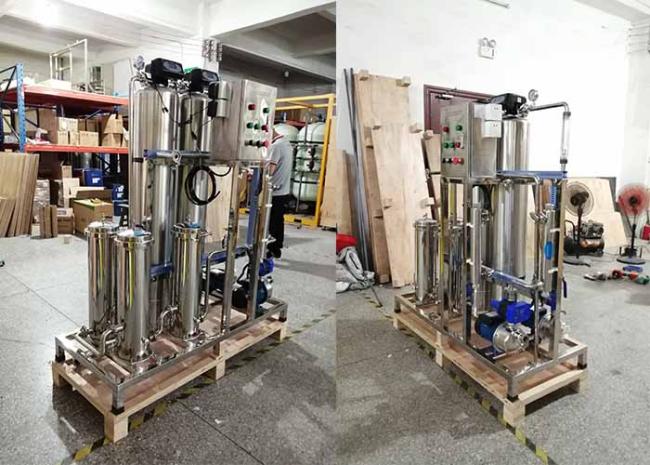

Water Treatment Accessories SS304 1000LPH Pretreatment Filter
e.g.: 1000LPH pretreatment:
a: Quartz sand 150kg
b. Activated carbon 50kg
c. 3sets security filter 9pcs 20″×5μm PP filter cartridge
d. Stainless steel (SS304) tank/ pipe
e. Inlet/outlet water pressure meter 0-7kg
f. Automatic/ manual control valve optional
g. Raw water pump Ningxiao BJZ100
1. Quartz sand principle
|
The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20um of substances hazardous to health. |
2. Activated carbon filter
|
Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants. |
3. Security filter
|
Cationic resin used for water softening, primarily to remove hardness of water. So as to effectively prevent the reverse osmosis membrane fouling. System can automatically recoil, and so is red. |
Optional components
Process: raw water pump→quartz sand filter →activated carbon filter→security filter + water supply point
Application: |
| Feed water(source water): City water, river water, lake water, underground water(borehole, well), brackish water, sea water...... |
| Treated water: 1. Electronic industry: pre-filter for ultra pure water, chemical products and pure water 2. Food and beverage industry: filter for mineral water, wines and fruit juice 3. Medicine industry: filter for drug liquid, gases 4. Chemical industry: filter for organic solvent 5. Petroleum industry: filter for oil-field flooding |
Packing & delivery
We have stock all year round such as 500LPH, 1000LPH reverse osmosis system. If you want now then take it now^^
Delivery time: 1-7working days for small machine, 15-45working days for big machine(depend on raw materials stocking)
Export standard packing: carton/wooden case(plywood), no need to fumigate, suitable for shipping.
Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13660858152
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
