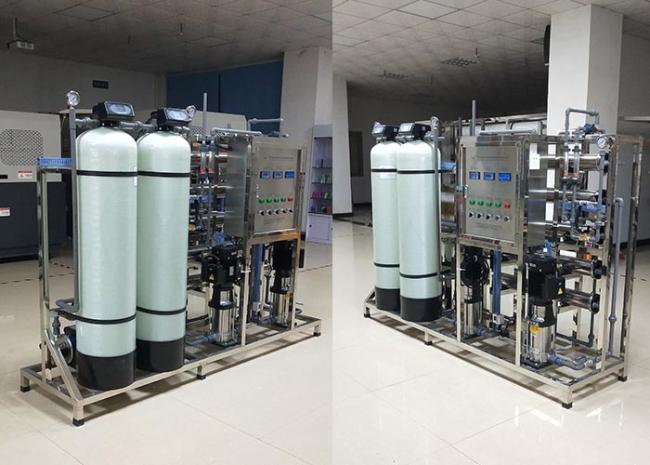

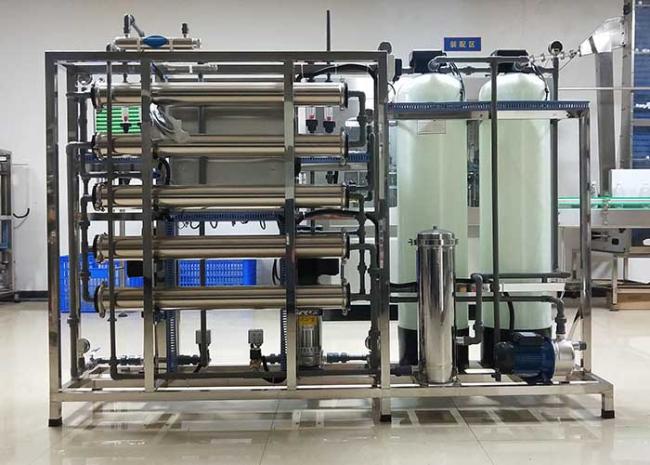

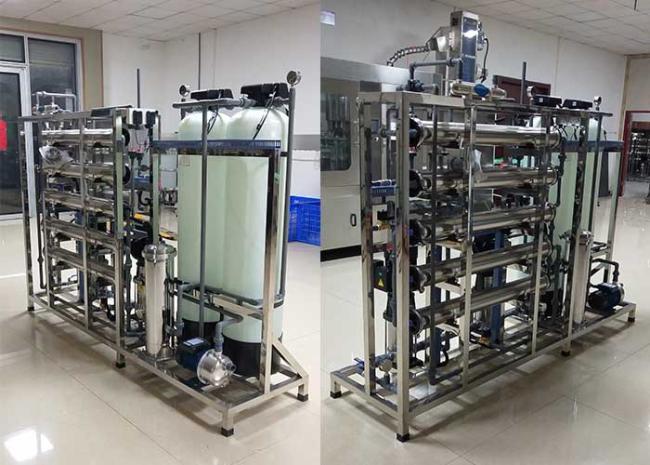

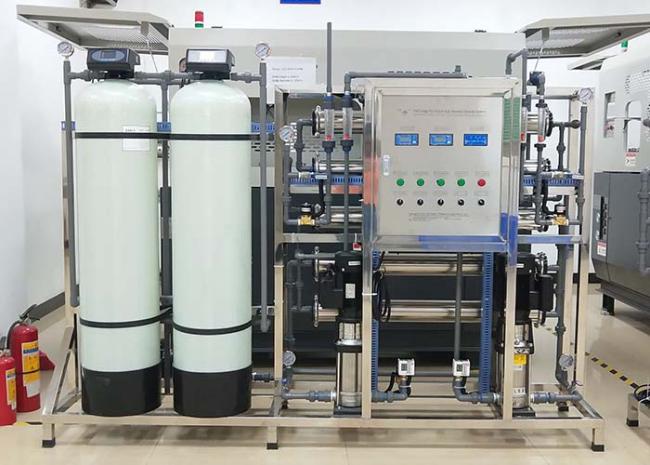

500LPH Industrial Water Filters Ultrapure RO Purification Water Treatment Plant For Dialysis / Laboratory / Cosmetic
500LPH industrial water filters tratamiento de agua ultrapure RO purification water treatment plant for dialysis/ laboratory/ cosmetic
Reverse osmosis system is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt. The whole system desalination rate can reach 97%-99% to make permeated water conductivity<10 us/cm. Dense water also won’t polluted environment.
If raw water conductivity is less than 300uS/cm, first stage output is less than 10uS/cm, two stage output is 2uS/cm
Process

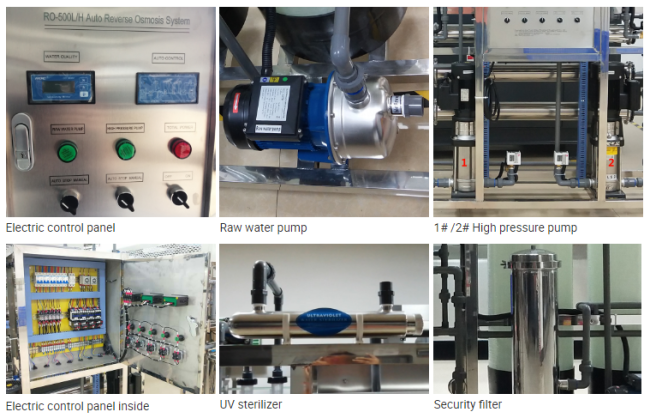

Untreated water feed pump →Quartz sand filtration→ Active carbon filtration → Security filter → 1st stage high pressure pump →1st stage RO system→2nd stage high pressure pump→2nd stage RO system→UV sterilizer→output supply point
| 1. Capacity: 500L/H |
| 2. Rated power: 1.5KW/H |
| 3. Voltage: 110V/220V/380V, 50Hz/60Hz, single phase/3phase |
| 4. Desalting rate:>=97% |
| 5. Water recovery rate: 50-75% |
| 6. Conductivity of raw water: ≤400μS/cm |
| 7. Conductivity of pure water: ≤2μS/cm |
| 8. Packing size: 1650*630*1800mm |
| 9. Total weight: 450kg |
| 10. Pump: Ningxiao/ CNP/ Grandfos |
Optional Components
| A. Regulating wheels | B. PC Touch Screen |
| C. Two-stage RO system | D. PH adjustment |
| E. CIP cleaning system | F. Auto or manual control valve |
| G. U-PVC or stainless steel pipe | H. UV sterilizer/Ozone Generator |
| I. Dosing system(anti-scale)/Water Softener | J. PE or stainless steel raw/pure water tank |
| Optional Components : | A. Regulating wheels |
|
B. PLC Touch Screen |
C. Two-stage RO system |
|
D. PH adjustment anti-scale |
E. Automatic cleaning system |
|
F. Auto or manual control valve |
G. U-PVC or stainless steel pipe |
|
H. UV sterilizer/Ozone Generator |
I. Dosing system/Water Softener |
|
J. PE or stainless steel raw/pure water tank |
K. FRP or stainless steel pre-treatment tank |

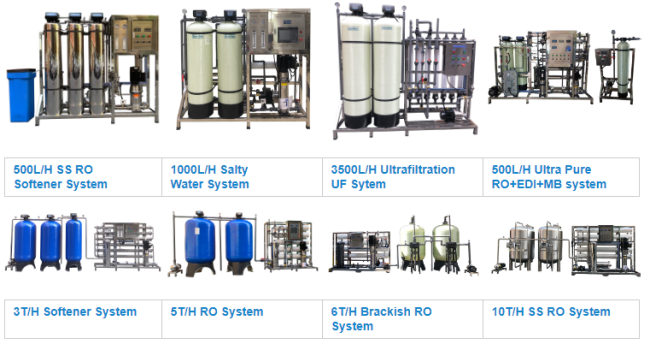

Difference raw water quality, we will used difference solutions, so the materials and design is difference, many styles for your reference as below^^
Thank you so much for your value time. Any questions please click "contact now" send us inquiry !
We will reply you within 24 hours. Tel/ whatsApp/ wechat: +86-13660858152
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
