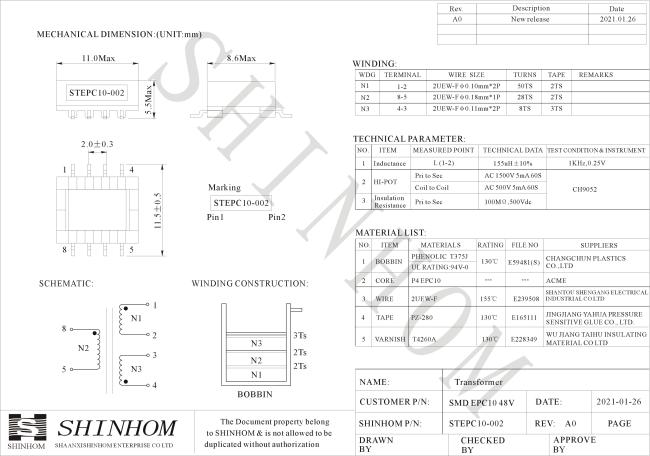

EPC10 SMD Ferrite Choke Coil Power Transformer , High Frequency Transformers

• Transformers for use in POE power supply
• Turns ratio:  25:14:4
• Ferrite core meterial

• Solderability: Leads shall meet MIL-STD-2020G, Method 208H for solderability
• Flammability: UL94V-0
• ASTM oxygen index: > 28%
• Insulation System: Class F 155℃.
• All listed parameters are to be within tolerance from -40℃ to +85℃ unless otherwise noted
• Storage Temperature Range: -55℃ to +125℃
• Aqueous wash compatible
• Electrical and mechanical specifications 100% tested
• RoHS Compliant Component

ABOUT US:

Shinhom Enterprise was founded in Xi'an China with nearly 20 years of experiencing of designing & manufacturing transformers & Coils components.
High quality, low cost and best service are what we pursuit most!
Meanwhile, the certification of ISO 9001 by SGS system was also earned.
Shinhom is to remain a specialist in designing and manufacturing high-performance transformers,power inductors, choke coils power supplies for purchasers around the world.
