18Ghz Golden SMA Straight RF Coaxial/Cable Connector 50Ohm For Antenna
18Ghz Golden SMA Straight RF Coaxial/Cable Connector 50Ohm for Antenna
SMA connectors are small, high frequency RF coaxial connector. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20 Ghz.
| Electrical Characteristics | |
| Impedance | 50Ω |
| Frequency Range | DC~18GHz |
| Rated Voltage | 335VRMS |
| Dielectrics Voltage-resistance | 1000VRMS |
| Insulation Resistance | ≥5000MΩ |
| Center Resistance | Center Conductor ≤3.0mΩ |
| Outer Conductor ≤2.0mΩ | |
| VSWR | ≤1.3 |
Details of 18Ghz Golden SMA Straight RF Coaxial/Cable Connector 50Ohm for Antenna(mm):
| Model Number | Cable Type | Description |

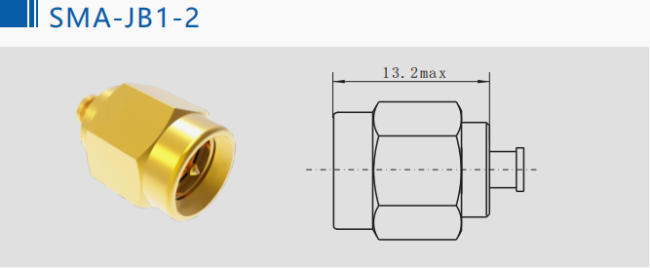

| SMA-JB1-2 | 1#semi-rigid/1#semi flexible | SMA male rf connector for cable |
Other SMA RF Connector(mm):
1.
| Model Number | Cable Type | Description |

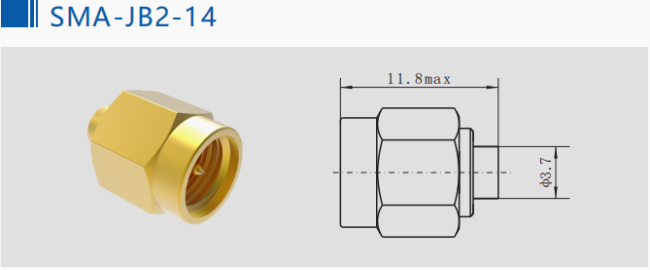

| SMA-JB2-14 | 2#semi-rigid/2#semi flexible | SMA male rf connector for cable |
2.
| Model Number | Cable Type | Description |

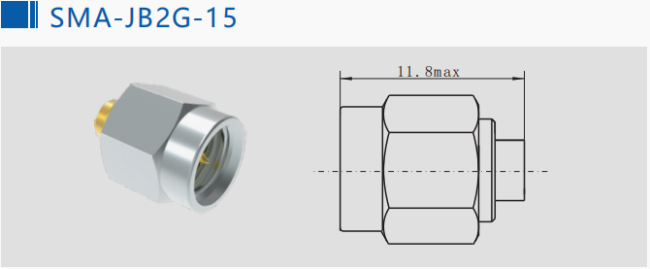

| SMA-JB2G-15 | 2#semi-rigid/2#semi flexible | Stainless steel SMA male rf connector for cable |
3.
| Model Number | Cable Type | Description |

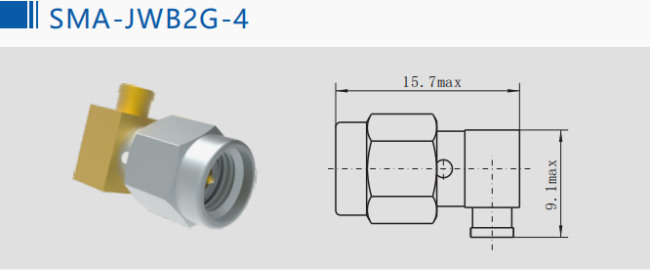

| SMA-JWB2G-4 | 2#semi-rigid/2#semi flexible | Stainless steel SMA male right angle rf connector for cable |
Features and Adavantages of 18Ghz Golden SMA Straight RF Coaxial/Cable Connector 50Ohm for Antenna(mm):
Impedance 50 Ω
high-quality and high-performance
Light weight, compact and vibration proof design
Applications of 18Ghz Golden SMA Straight RF Coaxial/Cable Connector 50Ohm for Antenna(mm):
Microwave Systems Telecommunications
Civil Aeronautics
5G Solutions
Measurement Systems
Mobile Telephone WiFi Antennas Systems
