TNCA Male 2 Watt RF Coaxial Load Termination 23.5mm / 0.925″ Length DC - 18GHz
TNCA Male 2 Watt RF Load, 23.5mm / 0.925″ in Length, DC~18GHz RF Coaxial Termination
TNCA Male dummy load with 23.5mm / 0.925 inch in length, DC to 18GHz RF coaxial termination, ≤2W of Average Power, 50Ω impedance, VSWR 1.4:1 (max) for DC~18GHz, 500 cycles durability and -55°C~+125°C operating temperature.
| Model No. | TNCA-50JR-2W |
| Power | 2W |
| Frequency Range | DC-18GHz |
| VSWR | ≤1.4 |
| Note | Cylindrical Resistor |

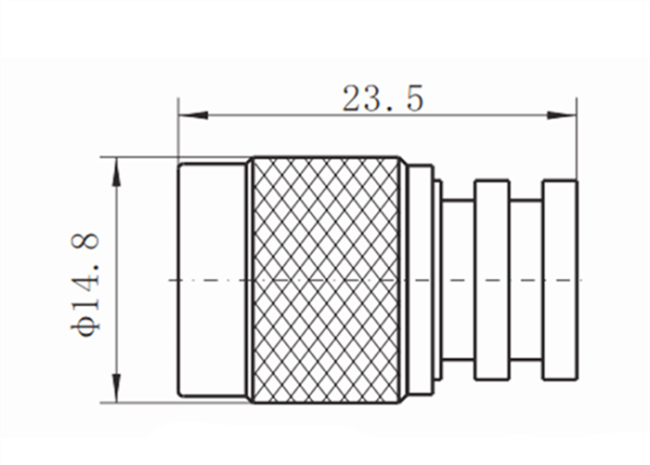

Details of TNCA Male 2 Watt RF Load, 23.5mm / 0.925″ in Length, DC~18GHz RF Coaxial Termination
Advantage :
* High Reliable
* Reliable Mechanical Performance
* Wide Frequency Range from DC to 18GHz
Applications :
- General Purpose Test
- Communication
- Precision Test and Measurement
◆ Wide Frequency Band
◆ 2G/3G/4G/LTE Coverage
◆ Low VSWR
◆ Widely used for In-building Solutions
| Termination Type | RF Load |
| Connector Series | TNCA |
| Connector Gender | Male |
| Minimum Frequency | DC |
| Maximum Frequency | 18 GHz |
| Impedance | 50 Ohm |
| Maximum VSWR | 1.4:1 |
| Maximum Power | 2 Watt |
Since the matched load needs to be customized according to your needs, please provide the following requirements when you send us inquiry:
*The frequency range you need.
*Power requirement.
*Connector type
*Your special requirements if you have (VSWR, temperature, size, etc.)
Shipping Service:
The shipment will be delivered via major global expresses, such as DHL, UPS, FedEx etc. Currently, it will be sent out from Xi'an, China.
