SMA Male to MCX Male RF Coaxial Adapter Brass Body Center Pin PTFE Dielectric 6GHz
SMA Male to MCX Male Gold Plated Brass Body Center Pin PTFE Dielec 6GHz RF Coaxial Adapter
This SMA male to MCX male adapter is one of several thousand RF products available from Xi'an Elite Electronic, This adapter is a between series coaxial adapter.
This adapter is made from a Solid Brass body that is precision machined and plated with Gold for superior performance and value. This SMA male to MCX male adapter has a PTFE dielectric and a gold plated brass center pin. The SMA male side provides the pin in the sub-miniature, threaded, and tight-locking SMA connection type. The MCX male side provides the plug pin in a push-on interface that is commonly found in GPS applications/USB devices for use with external antennas.

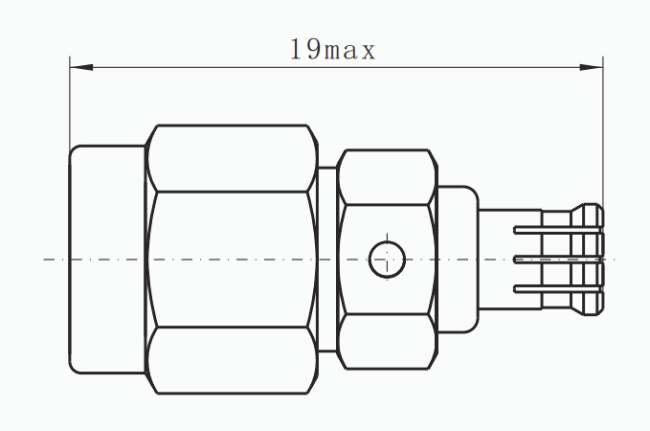

Outline Drawing and Picture(mm)
Other SMA to MCX Male to Female Adapter:
1.
| Model No. | Description |
| SMA/MCX-KJ | SMA female to MCX male adapter |
2.
| Model No. | Description |
| SMA/MCX-KK | SMA female to SMA female adapter |
3.
| Model No. | Description |
| SMA/MCX-KWJ | SMA female to MCX male right angle adapter |
4.
| Model No. | Description |
| SMA/MCX(S)-KYK | SMA female to MCX female bulkhead adapter with seal ring |
Application:
* Network
* Satcom
* Computer/LANs
* Computer/LANs
* Mobile communication
* Instrumentation
* Base Station
* Mobile communication
* Outdoor facilities
* Radar,microwave
* Telecommunications
* Instrumentation
* Automotive
* Jump line join
* Basic facility
* Radio, TV aerial system
NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
