SSMP Female Right Angle 2-hole Flange RF Cable Connector for CXN3506/MF108A
SSMP Female Right Angle 2-hole Flange RF Cable Connector for CXN3506/MF108A
Xi'an Elite Electronic designed the SSMP connector product line to further improve package density of RF/Microwave systems.
The SSMP interface is about 30% smaller than its predecessor, the SMP connector.
Now an industry standard, the SSMP interface has enabled design engineers to increase performance and complexity of their
designs while simultaneously improvingupon their form factor.
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~50GHz | ||||
| Rated Voltage | 170VRMS* | ||||
| Dielectrics Voltage-resistance | 500VRMS* | ||||
| Insulation Resistance | ≥2000MΩ | ||||
| Center Resistance | Outer conductor | Normal≤3.5mΩ, Sealing≤5mΩ | |||
| Center conductor | Normal≤8mΩ, Sealing≤30mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.4 | ≤1.5 | |
| Material & Mechanical Characteristics | |||||
| Center Conductor | Male | Sn-P Bronze/Kovar, Gold plated | |||
| Female | Beryllium bronze, Gold plated | ||||
| Elastic Contact | Beryllium bronze Gold plated | ||||
| Shell and other Metal Parts |
Brass/Kovar Gold plated Stainless steel Passivation |
||||
| Insulators | Glass sintering/PTFE/PEI | ||||
| Hermetic Product Leakage Rate | ≤1.01325×10-3Pa·cm3/s | ||||
Features
* Frequency Range: DC - 50 GHz
* 50 Ω Impedance; Blindmateable configuration
* Ability to withstand Radial/Axial Misalignment
* Board-mount, Field-replaceable, Bullets, Hermetic
and Cable Connector configurations
* Custom Connectors Available

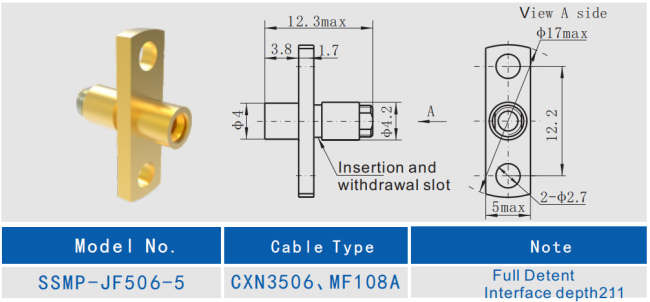

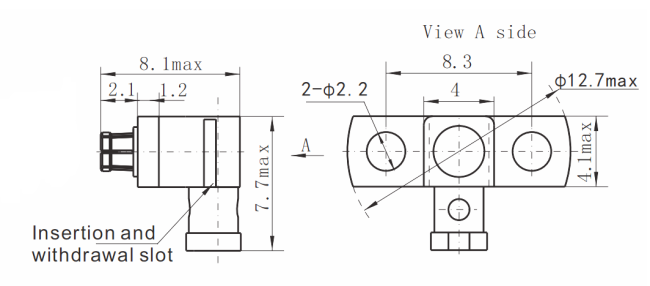

Detailed Drawing
Application:
* Network
* Satcom
* Computer/LANs
* Base Station
* Outdoor facilities
* Automotive
* Jump line join
* Basic facility
* Radar,microwave
* Telecommunications
* Mobile communication
* Instrumentation
* Radio, TV aerial system
