2 Hole Flange Female SMPM RF Connector For CXN3506 / MF108A Cable Connector
RF SMPM Female with 2-hole Flange for CXN3506/MF108A Cable Connector
Type SSMP is one kind of miniature RF coaxial connectors with snap-on self-latching mechanism, They are developed for modular interconnection system with denser packing requirements.The characteristic of this type is easy to connect/disconnet,light weight,vibration-proof, high frequency and high performance.
Type SSMP is one kind of miniature RF coaxial connectors with snap-on self-latching mechanism, They are developed for modular interconnection system with denser packing requirements.The characteristic of this type is easy to connect/disconnet,light weight,vibration-proof, high frequency and high performance.
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~50GHz | ||||
| Rated Voltage | 170VRMS* | ||||
| Dielectrics Voltage-resistance | 500VRMS* | ||||
| Insulation Resistance | ≥2000MΩ | ||||
| Center Resistance | Outer conductor | Normal≤3.5mΩ, Sealing≤5mΩ | |||
| Center conductor | Normal≤8mΩ, Sealing≤30mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.4 | ≤1.5 | |
| Material & Mechanical Characteristics | |||||
| Center Conductor | Male | Sn-P Bronze/Kovar, Gold plated | |||
| Female | Beryllium bronze, Gold plated | ||||
| Elastic Contact | Beryllium bronze Gold plated | ||||
| Shell and other Metal Parts |
Brass/Kovar Gold plated Stainless steel Passivation |
||||
| Insulators | Glass sintering/PTFE/PEI | ||||
| Hermetic Product Leakage Rate | ≤1.01325×10-3Pa·cm3/s | ||||
Features
SSMP according to the different connection holding force, divided into light bore, escapement type two interface forms, respectively, to meet the needs of different applications:
1, light bore type interface (Smooth bore) connection holding force is minimal, allowing axial and radial misalignment, the service life of more than a thousand times, often used in blind insertion type connection.
2,Full detent interface, the best connection holding force, not easy to remove after connection, the best performance of vibration and shock resistance, but the service life is only about 500 times, often used in cable connection.

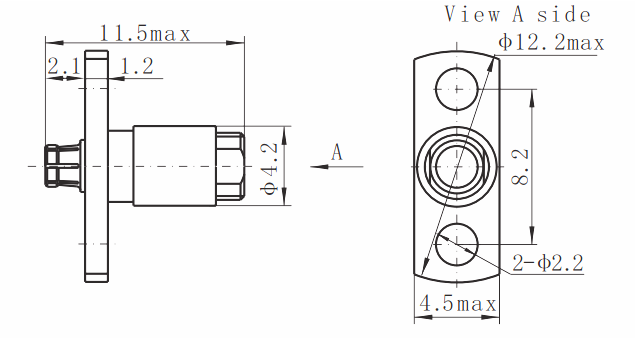

Detailed Drawing of RF SMPM Female with 2-hole Flange for CXN3506/MF108A Cable Connector:
Application:
* Network
* Satcom
* Computer/LANs
* Base Station
* Outdoor facilities
* Automotive
* Jump line join
* Basic facility
* Radar,microwave
* Telecommunications
* Mobile communication
* Instrumentation
* Radio, TV aerial system
