SSMP Female Right Angle Coaxial Adaptor 2 Holes Flange for CXN3506/MF108A Cable
SSMP Female Right Angle RF Connector 2 Holes Flange for CXN3506/MF108A Cable
Type SSMP is a kind of miniature RF coaxial connectors with snap-on self-latching mechanism, They are developed for modular interconnection system with denser packing requirements.The characteristic of this type is easy to connect/disconnet,light weight,vibration-proof, high frequency and high performance.
Type SSMP is a kind of miniature RF coaxial connectors with snap-on self-latching mechanism, They are developed for modular interconnection system with denser packing requirements.The characteristic of this type is easy to connect/disconnet, light weight, vibration-proof, high frequency and high performance.
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~50GHz | ||||
| Rated Voltage | 170VRMS* | ||||
| Dielectrics Voltage-resistance | 500VRMS* | ||||
| Insulation Resistance | ≥2000MΩ | ||||
| Center Resistance | Outer conductor | Normal≤3.5mΩ, Sealing≤5mΩ | |||
| Center conductor | Normal≤8mΩ, Sealing≤30mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.4 | ≤1.5 | |
| Material & Mechanical Characteristics | |||||
| Center Conductor | Male | Sn-P Bronze/Kovar, Gold plated | |||
| Female | Beryllium bronze, Gold plated | ||||
| Elastic Contact | Beryllium bronze Gold plated | ||||
| Shell and other Metal Parts |
Brass/Kovar Gold plated Stainless steel Passivation |
||||
| Insulators | Glass sintering/PTFE/PEI | ||||
| Hermetic Product Leakage Rate | ≤1.01325×10-3Pa·cm3/s | ||||
Features
SSMP connector is a miniature version of SMP type connector, also known as GPPO/SMPM connector, is a smaller push-in RF coaxial connector, mainly used for the close row connection between RF modules. It has the characteristics of easy connection, light weight, small size and wide working band. With the development of microwave components toward high integration, miniaturization and high frequency band, SSMP such ultra-small and high index high performance connectors are widely used.

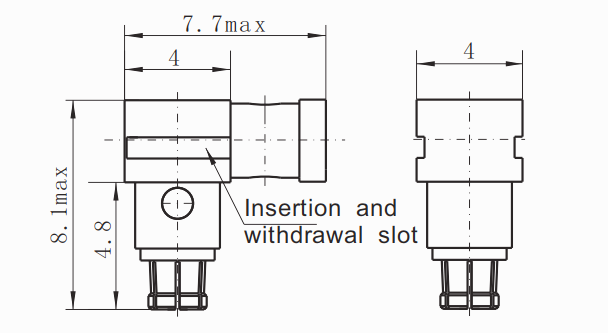

Detailed Drawing
Application:
* Network
* Satcom
* Computer/LANs
* Base Station
* Outdoor facilities
* Automotive
* Jump line join
* Basic facility
* Radar,microwave
* Telecommunications
* Mobile communication
* Instrumentation
* Radio, TV aerial system
Related Products:

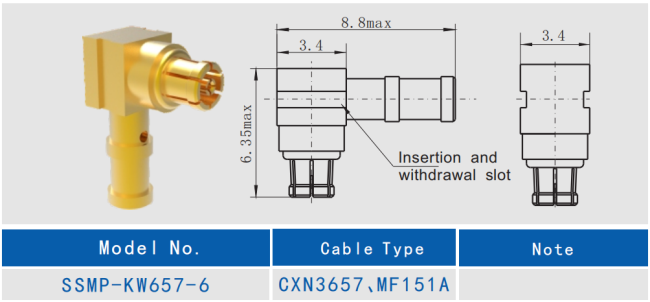

| SSMP Female Right Angle Cable Connector | Cable type: CXN3657/MF151A |
