SSMP Male RF Connector for CXN3506 / MF108A Cable Full Detent Interface depth 2.11

SMPM, also known as SSMP series are a high frequency push-on connector with its interfacing system featuring an inner female-to-female component, called a bullet or blindmate, and two outer panel, circuit or cable-mounted receptacles called shrouds. SMPM connectors are typically available up to 50 GHz.

The two slide-on interfaces Smooth Bore (SB) and Catcher’s Mitt (CM) allow for reduced connection forces as compared to the snap-on versions. The push-on interface creates a sliding connection that does not physically locate the mating reference planes, allowing for axial and radial misalignment. Both the SB and CM have the same engage/disengage forces; however the CM is typically specified as the shroud configuration in blind-mate applications as its generous lead-in chamfer helps capture and guide the bullet into place.

Features

SSMP connector is a miniature version of SMP type connector, also known as GPPO/SMPM connector, is a smaller push-in RF coaxial connector, mainly used for the close row connection between RF modules. It has the characteristics of easy connection, light weight, small size and wide working band. With the development of microwave components toward high integration, miniaturization and high frequency band, SSMP such ultra-small and high index high performance connectors are widely used.

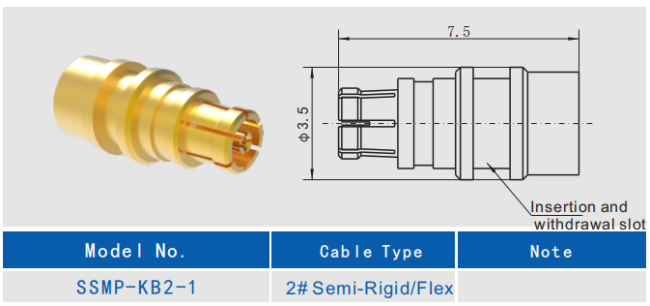

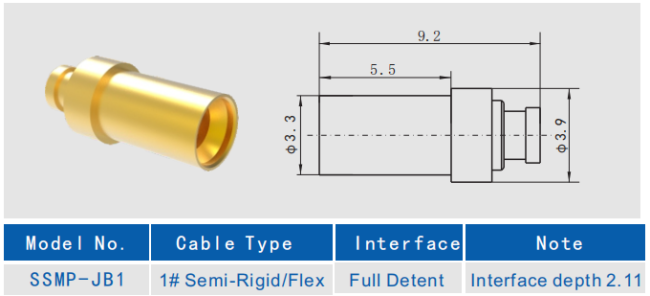

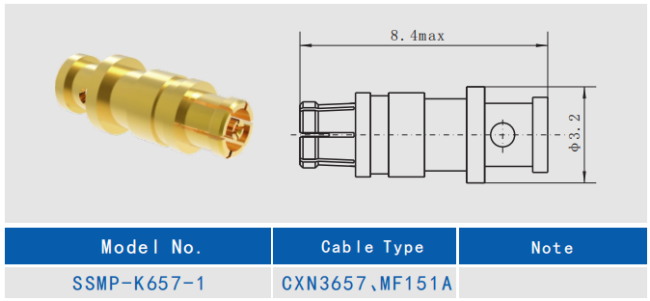

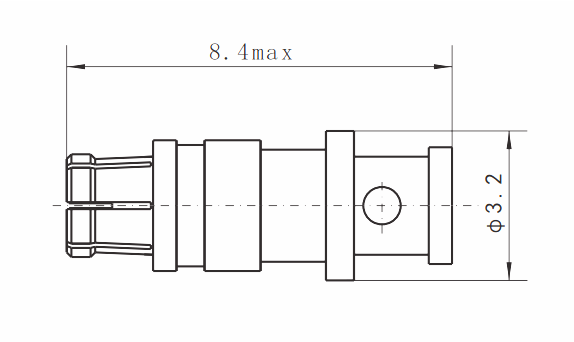

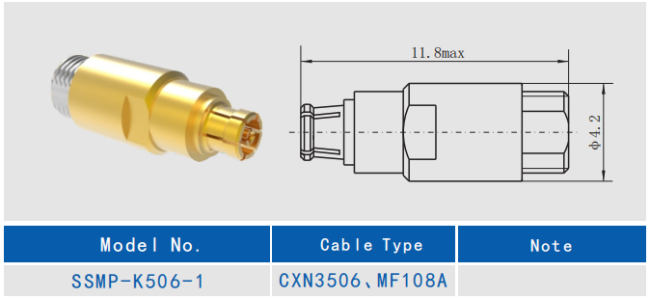

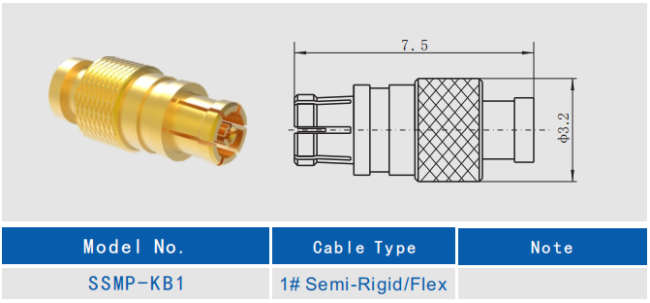

Detailed Drawing

Application:

* Network

* Satcom

* Computer/LANs

* Base Station

* Outdoor facilities

* Automotive

* Jump line join

* Basic facility

* Radar,microwave

* Telecommunications

* Mobile communication

* Instrumentation

* Radio, TV aerial system

Related Products:

1.

Product Cataloge:

Packaging Details:

* Standard Export Carton
* According to customers' requirements

NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.
