Female Right Angle SMPM RF Connector for CXN3657/MF151A Cable
RF Connector SSMP Female Right Angle for CXN3657/MF151A Cable
Type SSMP is a kind of miniature RF coaxial connectors with snap-on self-latching mechanism, They are developed for modular interconnection system with denser packing requirements.The characteristic of this type is easy to connect/disconnet,light weight,vibration-proof, high frequency and high performance.
Due to its high frequency performance along with a blind-mate configuration, the SSMP connector is a standard interface in optical networking
components, specifically 40G and 100G Modulator and Driver amplifiers.
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~50GHz | ||||
| Rated Voltage | 170VRMS* | ||||
| Dielectrics Voltage-resistance | 500VRMS* | ||||
| Insulation Resistance | ≥2000MΩ | ||||
| Center Resistance | Outer conductor | Normal≤3.5mΩ, Sealing≤5mΩ | |||
| Center conductor | Normal≤8mΩ, Sealing≤30mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.4 | ≤1.5 | |
| Material & Mechanical Characteristics | |||||
| Center Conductor | Male | Sn-P Bronze/Kovar, Gold plated | |||
| Female | Beryllium bronze, Gold plated | ||||
| Elastic Contact | Beryllium bronze Gold plated | ||||
| Shell and other Metal Parts |
Brass/Kovar Gold plated Stainless steel Passivation |
||||
| Insulators | Glass sintering/PTFE/PEI | ||||
| Hermetic Product Leakage Rate | ≤1.01325×10-3Pa·cm3/s | ||||
Features
- Frequency Range: DC - 50 GHz
- 50 Ω Impedance; Blindmateable configuration
- Ability to withstand Radial/Axial Misalignment
- Board-mount, Field-replaceable, Bullets, Hermetic and Cable Connector configurations
- Custom Connectors Available

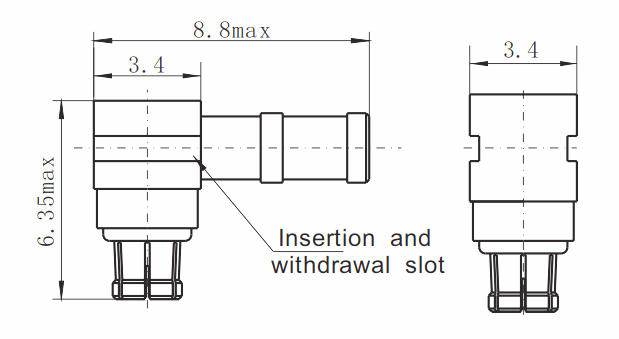

Detailed Drawing
Application:
* Network
* Satcom
* Computer/LANs
* Base Station
* Outdoor facilities
* Automotive
* Jump line join
* Basic facility
* Radar,microwave
* Telecommunications
* Mobile communication
* Instrumentation
* Radio, TV aerial system
