Right Angle 50Ohm SMPM RF Connector Full Detent Jack CXN3657/MF151A Flange Mount
RF Connector Mini SMP Right Angle Full Detent Jack CXN3657/MF151A Flange Mount 50Ohm

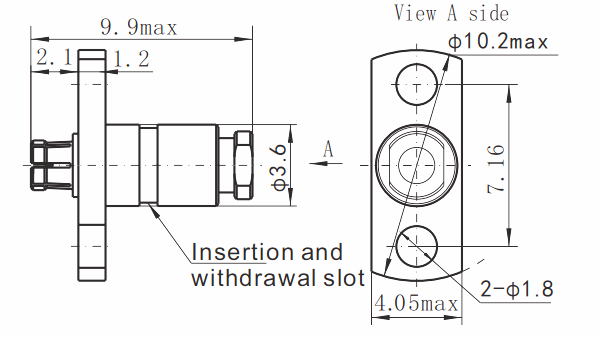

The family of RF interconnects addresses small package design needs. It can be utilized for highspeed signal transmission applications
or in blind-mate board-to-board systems using a floating bullet. This floating bullet provides a link between mated pairs and compensates for
both radial and axial misalignment.
Features
• Reliable electrical performance up to 50GHz
• Small package size
• Push-on and snap-on mating styles for quick installation
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~60GHz | ||||
| Rated Voltage | 85VRMS* | ||||
| Dielectrics Voltage-resistance | 250VRMS* | ||||
| Insulation Resistance | ≥2000MΩ | ||||
| Center Resistance | Outer conductor | Normal≤2mΩ, Sealing≤5mΩ | |||
| Center conductor | Normal≤6mΩ, Sealing≤25mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.35 | ≤1.4 | |
| Material & Mechanical Characteristics | |||||
| Center Conductor | Male | Sn-P Bronze/Kovar, Gold plated | |||
| Female | Beryllium bronze, Gold plated | ||||
| Elastic Contact | Beryllium bronze Gold plated | ||||
| Shell and other Metal Parts |
Brass/Kovar Gold plated Stainless steel Passivation |
||||
| Insulators | Glass sintering/PTFE/PEI | ||||
| Hermetic Product Leakage Rate | ≤1.01325×10-3Pa·cm3/s | ||||
Application:
• Antennas
• Back Plane
• Broadband
• Wireless
• Instrumentation
Packaging Details:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.
