SUS Female 2.92mm RF Connector for CXN3506/MF108A Cable
Stainless Steel K(2.92mm) Female RF Coaxial Connector for CXN3506/MF108A Cable
The 2.92mm coaxial female connector of Xi'an Elite Electronics is part of a very wide selection of RF interconnect components. The 2.92mm coaxial line bus connector of Xi'an Elite Electronics includes a bus type with 50Ohm impedance level. Our coaxial cable 2.92mm female connector has standard polarity design, including diaphragm type, 4-hole flange type and bracket free type.
The 2.92mm female connector product series for coaxial cables provides a variety of connection methods for clamping/non welding contact, clamping/welding, welding and welding/non welding contact. 2.92mm female connector for coaxial cable Compatible cable types include 2 # Semirigid/flexible/CXN3506/CXN3507/MF108A/MF363A
Specification:
| Impedance | 50Ω |
| Frequency Range | DC - 40GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
|
Voltage Standing Wave Ratio |
≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.0 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: Beryllium bronze, Gold Plated | |
| Body / Shell / Housing |
Brass, Gold Plated, Stainless Steel, Passivated |
| Insulator | PEI/PLF |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Features:
*High performance up to 40GHz
*Low VSWR
*Excellent return loss and insertion loss
*Ruggedized construction for repeatability
*Compitable to mate with SMA, 3.5 mm and other K or 2.92 mm connectors
Application:
*Optical test
*Laboratory and bench testing
*SATCOM
*Microwave
*Quantum computing
Related products:
| K-K506G | K female right angle stainless steel for CXN3506/MF108A |

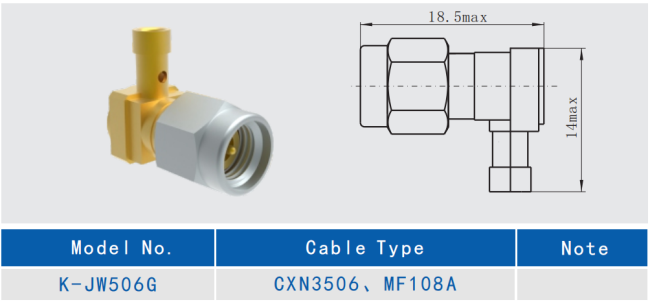

| K-JW506G | K male stainless steel for CXN3506/MF108A cable |
