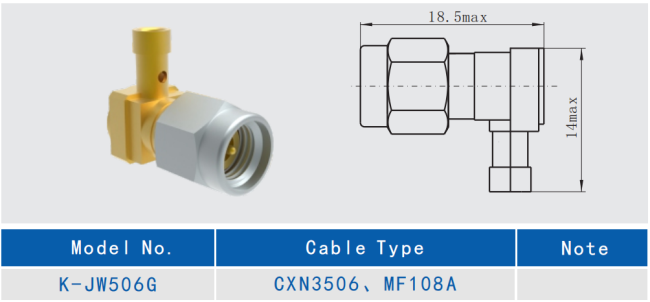

Male Right Angle Stainless Steel K 2.92mm RF Coaxial Connector for CXN3506/MF108A Cable
Male Right Angle Stainless Steel K(2.92mm) RF Coaxial Connector for CXN3506/MF108A Cable
Xi'an Elite Electronic’s right angle cable assemblies and connectors provide excellent electrical performance from DC up to 40GHz. No need to sacrifice performance for space, these high-performance connectors are compact in size and have outstanding durability. Currently available for CXN3506 and MF108A cable types and in SMA and 2.92mm series.
Specification:
| Impedance | 50Ω |
| Frequency Range | DC - 40GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
|
Voltage Standing Wave Ratio |
≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.0 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: Beryllium bronze, Gold Plated | |
| Body / Shell / Housing |
Brass, Gold Plated, Stainless Steel, Passivated |
| Insulator | PEI/PLF |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Features:
*Space saving design reduces stress on solder joint.
*Replaces the need for tight bend of cable in order to fit in a tight spot.
*Standard flexible or semi-rigid cable termination.
Application:
*Rugged high-frequency RF applications
*Rapid prototyping
*High speed digital component test
*5G wireless test applications
Related products:
| K-K506G | K female right angle stainless steel for CXN3506/MF108A |
| K-J506G | K male stainless steel for CXN3506/MF108A cable |
