Male 2.92mm RF Connector for CXN3507/MF363A Cable Connector
Male 2.92mm RF Connector For CXN3507/MF363A Cable Connector
The 2.92mm coaxial bus connector of Xi'an Elite Electronics is part of a very wide selection of RF interconnect components. The 2.92mm coaxial line bus connector of Xi'an Elite Electronics includes bus type with 50Ohm impedance level. Our coaxial line 2.92mm female connector has standard polarity design, including diaphragm type, 4-hole flange type and bracket free type.
The coaxial cable 2.92mm female connector product series provides a variety of connection modes, including clamping/non welding contact, clamping/welding, welding and welding/non welding contact. 2.92mm female connector for coaxial cable Compatible cable types include 2 # semi-rigid/flexible/CXN3506/CXN3507/MF108A/MF363A
Specification:
| Impedance | 50Ω |
| Frequency Range | DC - 40GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
|
Voltage Standing Wave Ratio |
≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.0 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: Beryllium bronze, Gold Plated | |
| Body / Shell / Housing |
Brass, Gold Plated, Stainless Steel, Passivated |
| Insulator | PEI/PLF |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Features:
*High performance up to 40GHz
*Low VSWR
*Excellent return loss and insertion loss
*Ruggedized construction for repeatability
*Compitable to mate with SMA, 3.5 mm and other K or 2.92 mm connectors
Application:
*Optical test
*Laboratory and bench testing
*SATCOM
*Microwave
*Quantum computing
Related products:

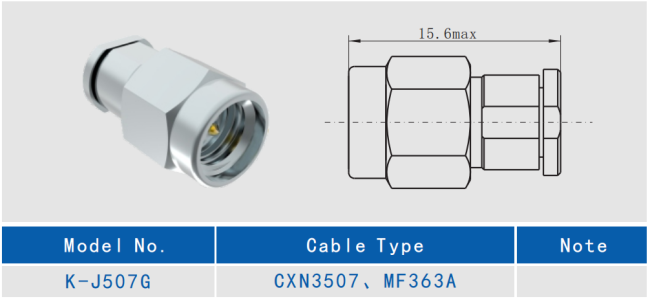

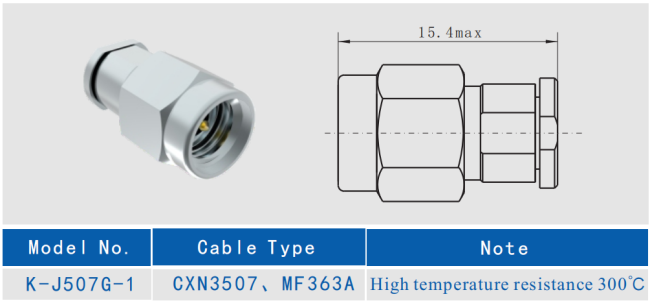

| K-J506G-1 | K male straight stainless steel for CXN3507/MF363A |
| K-K507G-1 | K female straight stainless steel for CXN3507/MF363A |
