Female Stainless Steel Precision Coaxial Connectors SMK K2.92mm
SMK 2.92mm Female Stainless Steel Precision K (2.92mm) Coaxial Connectors
From the series of RF connectors, the 2.92mm K connectors are the part of a very wide range of radio frequency connect sections.
2.92mm connectors are male and female in genders, the male pin is shorter than that of 3.5mm to ensure that the external contacts of the male and female connectors involve before the pin and female receptacle do.
RF connector 2.92mm covers the frequency range from 18GHz to 40GHz, Mounting in 2.92mm connectors are 2-hole, 4-hole, and Thread-In.
Specification:
| Impedance | 50 Ω |
| Frequency Range | DC - 40 GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
|
Voltage Standing Wave Ratio |
≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.0 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: Beryllium bronze, Gold Plated | |
| Body / Shell / Housing |
Brass, Gold Plated, Stainless Steel, Passivated |
| Insulator | PEI/PLF |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Features:
*Precision manufacturing allows superior electrical performance to 40 GHz
*Female contacts have a unique three-slot construction, which enhances connectivity by creating a more rugged connector while reducing the chance of intermittent connections
*Precise assembly tooling assures excellent, repeatable contact, and support bead location on cabled connectors
Application:
*Optical test
*Laboratory and bench testing
*SATCOM
*Microwave
*Quantum computing
Related products:
| K-J506G | K male straight stainless steel for CXN3507/MF363A |

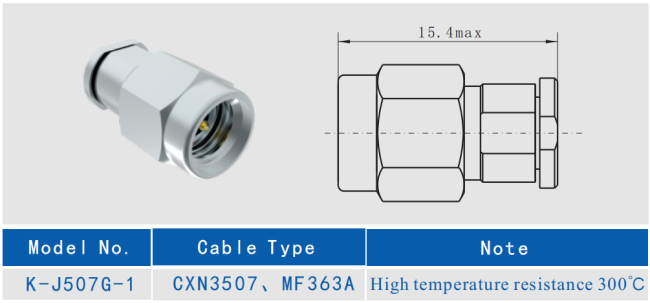

| K-J507G-1 | K male straight stainless steel for CXN3507/MF363A |
